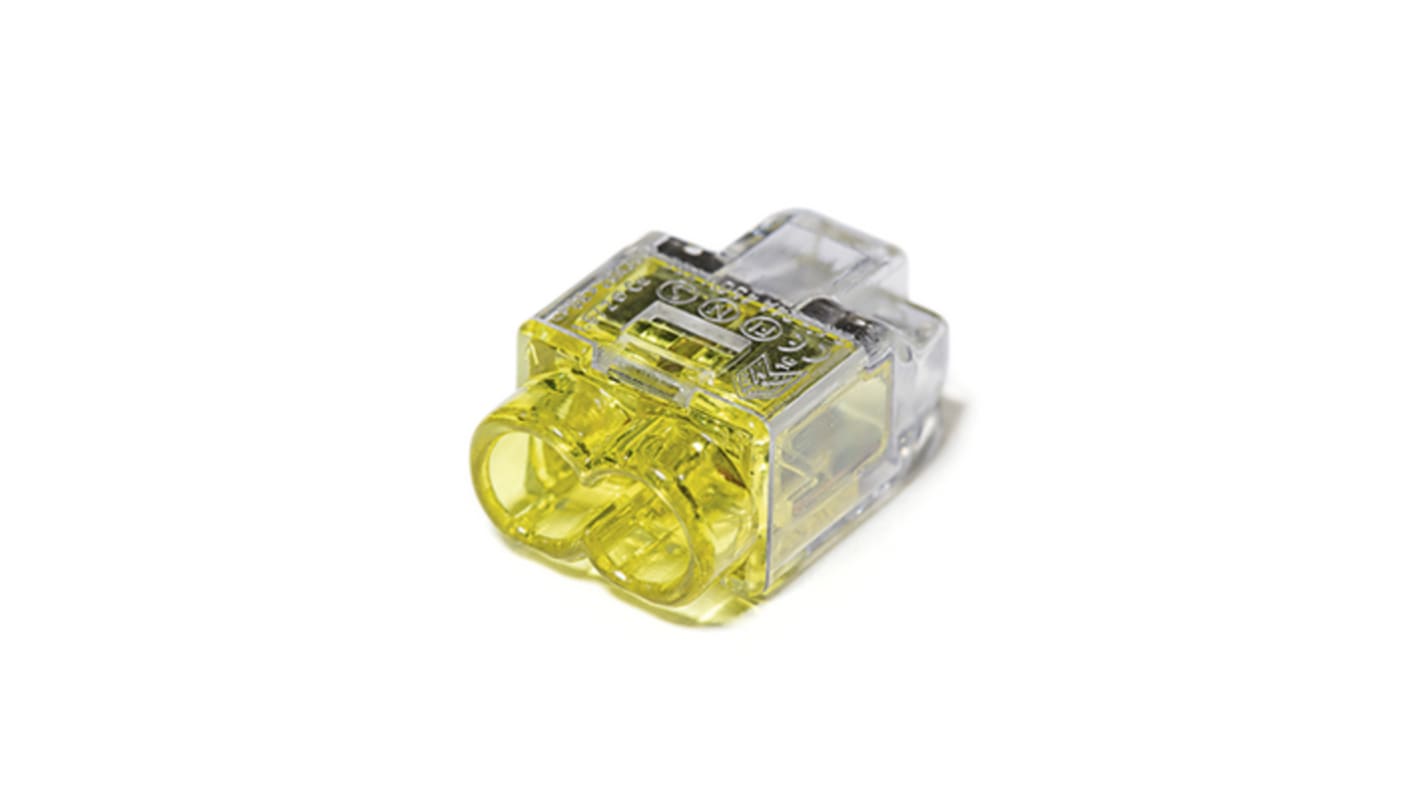

HellermannTyton, HelaCon Plus Mini Wire Splice Connector 0.5 → 2.5 (Solid) mm², 1 → 2.5 (Stranded) mm²
- RS-artikelnummer:
- 124-2525
- Tillv. art.nr:
- 148-90036 HCPM-2-PC-CL/YE
- Tillverkare / varumärke:
- HellermannTyton
Se alla Splice Connectors
3 I lager för avsändande samma dag
Pris (ex. moms) 1 Box of 150
305,34 kr
(exkl. moms)
381,68 kr
(inkl. moms)
| Låda(or) | Per Box | Per unit* |
| 1 - 9 | 305,34 kr | 2,036 kr |
| 10 - 99 | 290,13 kr | 1,934 kr |
| 100 + | 229,08 kr | 1,527 kr |
- RS-artikelnummer:
- 124-2525
- Tillv. art.nr:
- 148-90036 HCPM-2-PC-CL/YE
- Tillverkare / varumärke:
- HellermannTyton
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
HelaCon Plus Mini Push-In Connectors
HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in electrical installation applications.
The new generation of HelaCon Plus Mini wire connectors can be applied tool-free using the push-in spring technology. HelaCon Plus Mini uses a double spring which is approved for solid and stranded wires.
The new generation of HelaCon Plus Mini wire connectors can be applied tool-free using the push-in spring technology. HelaCon Plus Mini uses a double spring which is approved for solid and stranded wires.
Features and Benefits
40% smaller – space saving design
Low insertion force – Easy to use, saves time on installation
For professional cable connections in electrical installations
Easy access to voltage test entry and innovative port shape design
Correct installation can be visually checked through transparent housing
Different colour codes for easy identification of size
Allows different conductor diameters in each entry
Safe application, installation and maintenance
Max. current: 24 A
Max. voltage: 450 V
Wire range: 0.5 to 2.5 mm² solid wires; 1.0 to 2.5 mm² stranded
Stripping length: 11 mm
Flammability: UL94V0
Operating temperature: -30°C to +85 °C
Low insertion force – Easy to use, saves time on installation
For professional cable connections in electrical installations
Easy access to voltage test entry and innovative port shape design
Correct installation can be visually checked through transparent housing
Different colour codes for easy identification of size
Allows different conductor diameters in each entry
Safe application, installation and maintenance
Max. current: 24 A
Max. voltage: 450 V
Wire range: 0.5 to 2.5 mm² solid wires; 1.0 to 2.5 mm² stranded
Stripping length: 11 mm
Flammability: UL94V0
Operating temperature: -30°C to +85 °C
Specifikationer
Attribute | Value |
|---|---|
| Wire Size | 0.5 → 2.5 (Solid) mm², 1 → 2.5 (Stranded) mm² |
| Number of Ways | 2 |
| Series | HelaCon Plus Mini |
