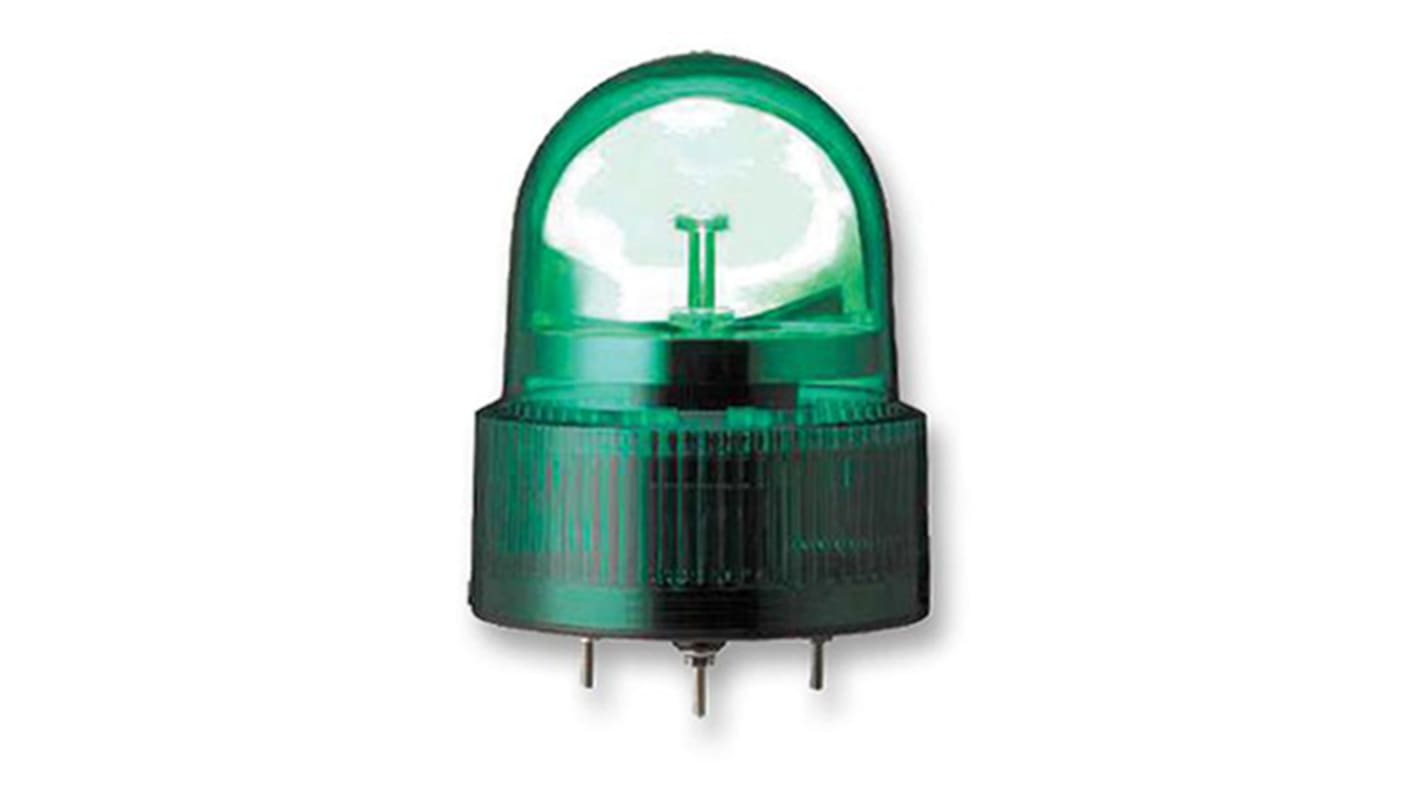

Schneider Electric XVR Series Green Buzzer Beacon, 12 V ac/dc, Base Mount, 90dB at 1 Metre
- RS-artikelnummer:
- 814-5126
- Tillv. art.nr:
- XVR12J03S
- Tillverkare / varumärke:
- Schneider Electric
Denna produkt har utgått
- RS-artikelnummer:
- 814-5126
- Tillv. art.nr:
- XVR12J03S
- Tillverkare / varumärke:
- Schneider Electric
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
Schneider XVR Super-bright LED Beacons with Buzzer
The Schneider XVR beacons are fitted with super-bright LEDs that have an energy saving design with low power consumption and a 90dB buzzer. These beacons also guaranteed long life and are maintenance free thanks to their high resistance to mechanical shock and vibration. Applications for the XVR series include industrial vehicles, industrial processes, paper manufacture and buildings.
Simple and quick installation
Super-bright LEDs
Low power consumption
Buzzer: 50...90 dB at 1 m (continuous or intermittent tone)
IP66 protection
Red, orange, green and blue units available
RoHS compliant
Rotating mirror beacon designed for long distance signalling applications
Super-bright LEDs
Low power consumption
Buzzer: 50...90 dB at 1 m (continuous or intermittent tone)
IP66 protection
Red, orange, green and blue units available
RoHS compliant
Rotating mirror beacon designed for long distance signalling applications
Standards
EN 61000-6-2, EN 61000-6-4, Class II conforming to IEC 61140.
Approvals
CE, UR, UL.
LED/Buzzer
Specifikationer
Attribute | Value |
|---|---|
| Supply Voltage | 12 V ac/dc |
| Lens Colour | Green |
| Mounting Style | Base Mount |
| Current Type | AC, DC |
| Light Effect | Rotating |
| Sounder Type | Buzzer |
| Decibels at 1 Metre | 90dB |
| Series | XVR |
| Bulb Type | LED |
| Housing Colour | Green |
| Minimum Decibel | 50dB |
| Maximum Decibel | 90dB |
| Housing Material | ABS |
| Maximum Temperature | +50°C |
| Minimum Temperature | -10°C |
