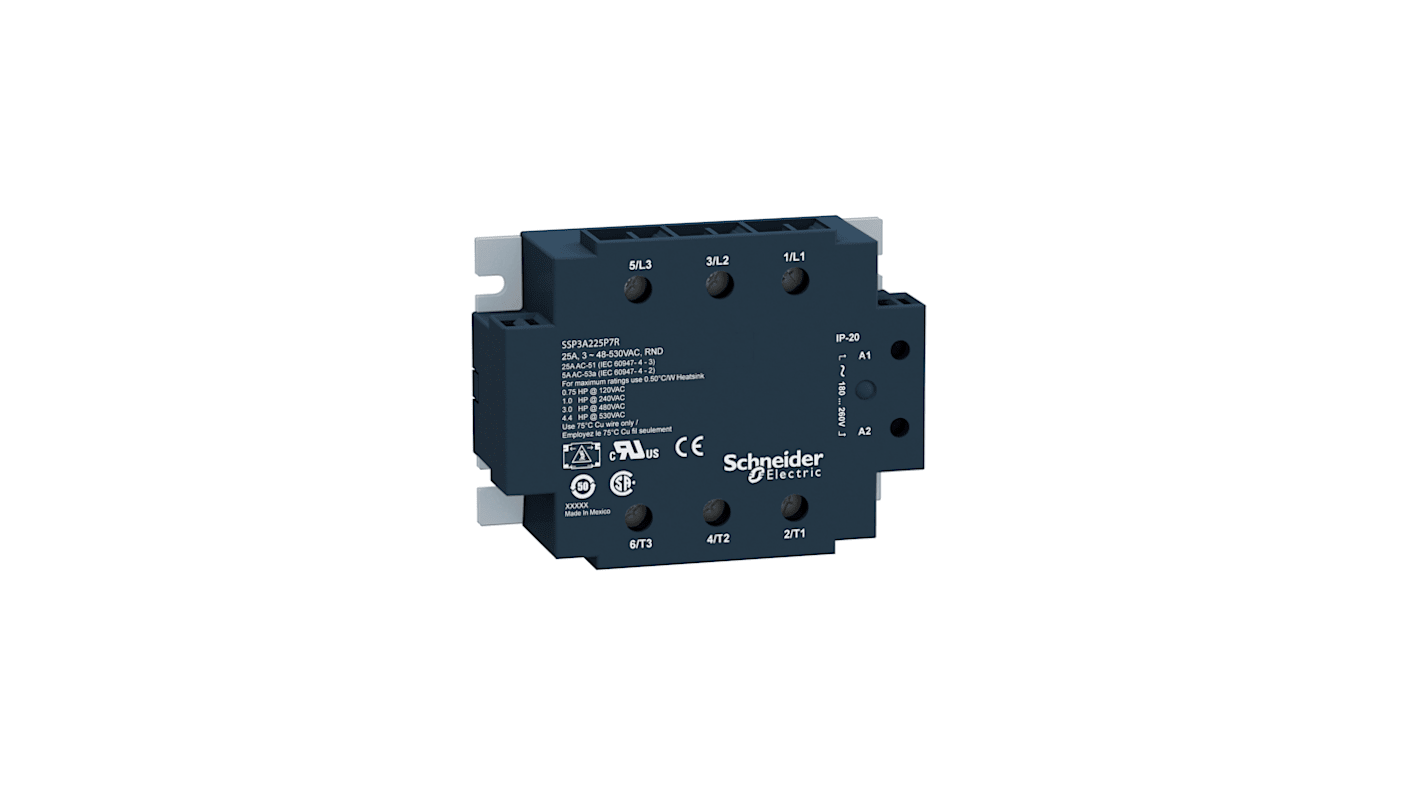

Schneider Electric Harmony Relay Series Solid State Relay, 50 A Load, Panel Mount, 530 V ac Load, 280 V ac Control
- RS-artikelnummer:
- 922-2091
- Tillv. art.nr:
- SSP3A250P7
- Tillverkare / varumärke:
- Schneider Electric
Better World
Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
Varje
2 884,56 kr
(exkl. moms)
3 605,70 kr
(inkl. moms)
- RS-artikelnummer:
- 922-2091
- Tillv. art.nr:
- SSP3A250P7
- Tillverkare / varumärke:
- Schneider Electric
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Load Current | 50 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 530 V ac | |
| Minimum Load Voltage | 48 V ac | |
| Minimum Control Voltage | 180 V ac | |
| Maximum Control Voltage | 280 V ac | |
| Switching Type | AC | |
| Control Voltage Range | 180 → 280 V ac | |
| Minimum Load Current | 0.1 A | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Contact Configuration | 3P-NO | |
| Output Device | SCR | |
| Relay Type | Three Channel Three Phase | |
| Series | Harmony Relay | |
| Maximum Turn On Time | 20ms | |
| Load Voltage Range | 48 → 530V ac | |
| Dimensions | 101.3 x 97.8 x 35.5mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Length | 101.3mm | |
| Standards Met | CE, CSA, UL | |
| Special Features | For Robust Applications Requiring Considerable Heat Dissipation, SSP & SSRP Ranges Panel Mount Individually | |
| Off State Leakage Current | 3 mA | |
| Height | 35.5mm | |
| Operating Temperature Range | -40 → +80°C | |
| Depth | 97.8mm | |
| Capacitance | 8pF | |
| Välj alla | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Load Current 50 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 530 V ac | ||
Minimum Load Voltage 48 V ac | ||
Minimum Control Voltage 180 V ac | ||
Maximum Control Voltage 280 V ac | ||
Switching Type AC | ||
Control Voltage Range 180 → 280 V ac | ||
Minimum Load Current 0.1 A | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Contact Configuration 3P-NO | ||
Output Device SCR | ||
Relay Type Three Channel Three Phase | ||
Series Harmony Relay | ||
Maximum Turn On Time 20ms | ||
Load Voltage Range 48 → 530V ac | ||
Dimensions 101.3 x 97.8 x 35.5mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Length 101.3mm | ||
Standards Met CE, CSA, UL | ||
Special Features For Robust Applications Requiring Considerable Heat Dissipation, SSP & SSRP Ranges Panel Mount Individually | ||
Off State Leakage Current 3 mA | ||
Height 35.5mm | ||
Operating Temperature Range -40 → +80°C | ||
Depth 97.8mm | ||
Capacitance 8pF | ||
- COO (Country of Origin):
- MX
Zelio SSP3 Solid State Power Relays
High switching frequency
Resistance to shock, vibration and contamination
Long life span
