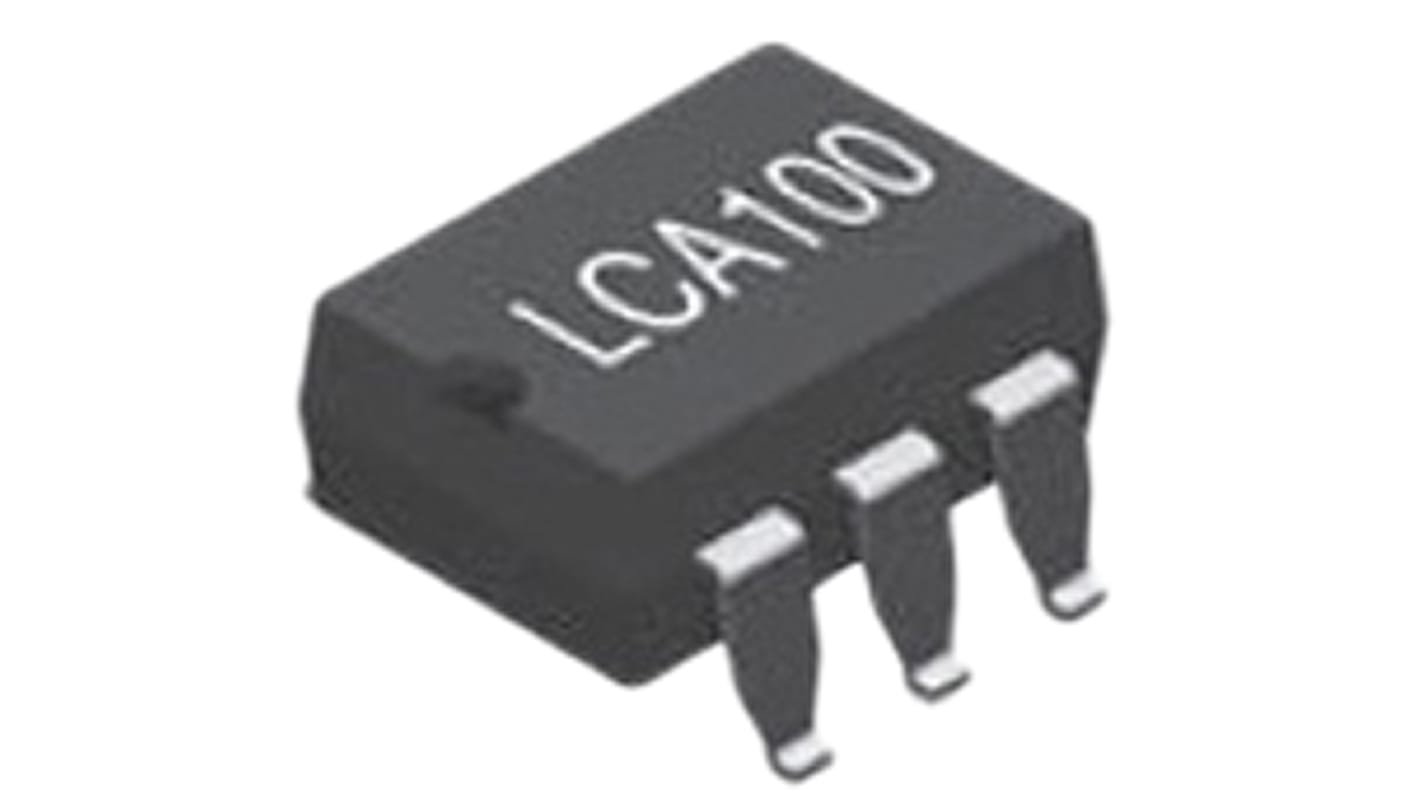

IXYS Solid State Relay, 120 mA, 200 mA Load, Surface Mount

Se alla Solid State Relays

Antal (1 påse med 5 enheter)*

205,57 kr

(exkl. moms)

256,96 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 25 juni 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Påse*
5 +41,114 kr205,57 kr

*vägledande pris

RS-artikelnummer:
906-1114
Tillv. art.nr:
LCA100LS
Tillverkare / varumärke:
IXYS
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

IXYS

Maximum Load Current

120 mA, 200 mA

Mounting Type

Surface Mount

Switching Type

AC/DC

Number of Poles

1

Terminal Type

PCB Pin

Contact Configuration

SPST

Output Device

Relay

Package Style

SMT

Relay Type

OptoMOS

Maximum Turn On Time

5ms

Dimensions

8.382 x 6.35 x 3.302mm

Depth

6.4mm

Special Features

Arc-Free With No Snubbing Circuits, FCC Compatible, High Reliability, Immune to Radiate FM Interface, No EMI/RFI Generation, VDE Compatible, Wave Solderable

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Capacitance

35pF

Standards Met

CSA, EN/IEC 60950, Certificate TUV B 09 07 49140 004, UL File E76270

Height

3.3mm

Operating Temperature Range

-40 → +85°C

Length

8.4mm

Off State Leakage Current

1 μA

COO (Country of Origin):
PH

1-Form-A OptoMOS Relay, LCA


These single pole miniature solid state relays have normally open (1-Form-A) contacts. They are able to provide 3750 Vrms of input to output isolation by using optically coupled MOSFET technology. The outputs use the well-known OptoMos architecture and are controlled by a highly efficient GaAlAs infrared LED.

Potential Applications:
Telecommunications- Telecom witching, tip/ring circuits, modem switching (laptop, notebook, pocket size), hook switch, dial pulsing, ground start, ringing injection
Instrumentation- Multiplexers, data acquisition, electronic switching, I/O subsystems
Meters (watt-hour, water, gas)
Medical equipment- Patient/equipment isolation
Security
Aerospace
Industrial controls

Features
Built-in current limiting
3750 Vrms input/output isolation
Low drive power requirements
No moving parts
High reliability
Arc-free with no snubbing circuits
No EMI/RFI generation
Machine insertable, wave solderable
Small 6-pin package

Standards

UL, CSA, EN/IEC 60950


Ixys Solid State Relays, PCB Mount
