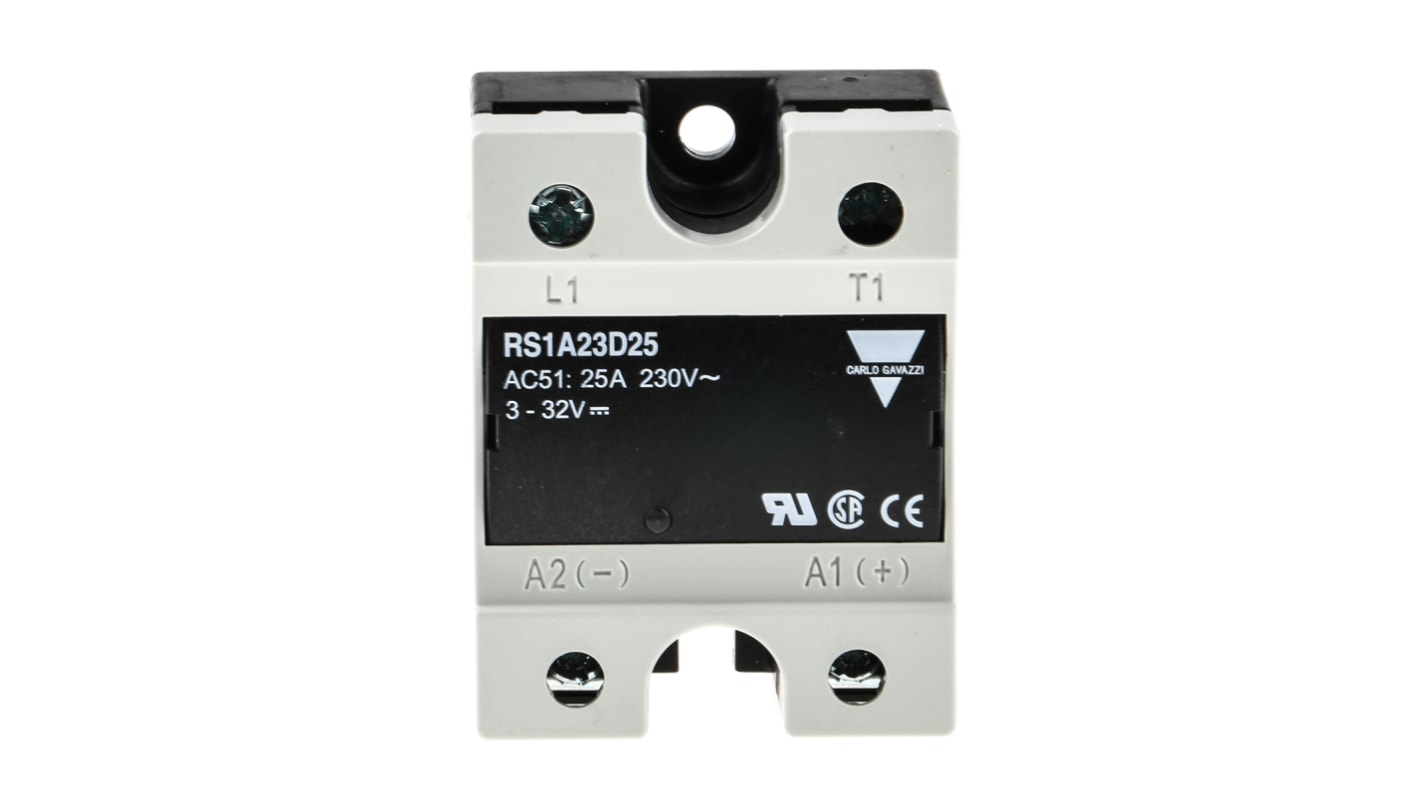

Carlo Gavazzi Solid State Relay, 25 A Load, Panel Mount, 265 V ac Load, 32 V dc Control
- RS-artikelnummer:
- 857-7236
- Distrelec artikelnummer:
- 304-11-213
- Tillv. art.nr:
- RS1A23D25
- Tillverkare / varumärke:
- Carlo Gavazzi
Mängdrabatt möjlig
Antal (1 enhet)*
531,78 kr
(exkl. moms)
664,72 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 45 enhet(er) är redo att levereras
- Plus 25 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 4 | 531,78 kr |
| 5 - 11 | 515,31 kr |
| 12 + | 498,62 kr |
*vägledande pris
- RS-artikelnummer:
- 857-7236
- Distrelec artikelnummer:
- 304-11-213
- Tillv. art.nr:
- RS1A23D25
- Tillverkare / varumärke:
- Carlo Gavazzi
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Maximum Load Current | 25 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 265 V ac | |
| Minimum Load Voltage | 42 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 3 V dc | |
| Switching Type | Zero | |
| Control Voltage Range | 3 → 32 V dc | |
| Minimum Load Current | 150 mA | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| Maximum Turn On Time | 1 s | |
| Load Voltage Range | 42 → 265V ac | |
| Dimensions | 44.8 x 58.2 x 28.8mm | |
| Height | 28.8mm | |
| Off State Leakage Current | <3 mA | |
| Length | 44.8mm | |
| Operating Temperature Range | -40 → +80°C | |
| Depth | 58.2mm | |
| Välj alla | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Maximum Load Current 25 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 265 V ac | ||
Minimum Load Voltage 42 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 3 V dc | ||
Switching Type Zero | ||
Control Voltage Range 3 → 32 V dc | ||
Minimum Load Current 150 mA | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Maximum Turn On Time 1 s | ||
Load Voltage Range 42 → 265V ac | ||
Dimensions 44.8 x 58.2 x 28.8mm | ||
Height 28.8mm | ||
Off State Leakage Current <3 mA | ||
Length 44.8mm | ||
Operating Temperature Range -40 → +80°C | ||
Depth 58.2mm | ||
- COO (Country of Origin):
- CN
Carlo Gavazzi Zero-Switching Solid State Relay
Solid State relays with integral heatsink offer the user an excellent alternative to convensional relays. Comes equipped with an IP20 touch-safe cover can be easily detached to accomodate Ring Terminal connections and then be added back onto the relay. Integrated cooling fans are supplied with higher-rated relays, such as 75&90A variants
Easily mountable onto DIN rail
Zero-switching suitable for use with Resistive loads and motors
Integrated Snubber network
LED status indication
AC and/or DC control voltage to ensure your application is covered
70A maximum output current
Zero-switching suitable for use with Resistive loads and motors
Integrated Snubber network
LED status indication
AC and/or DC control voltage to ensure your application is covered
70A maximum output current
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
