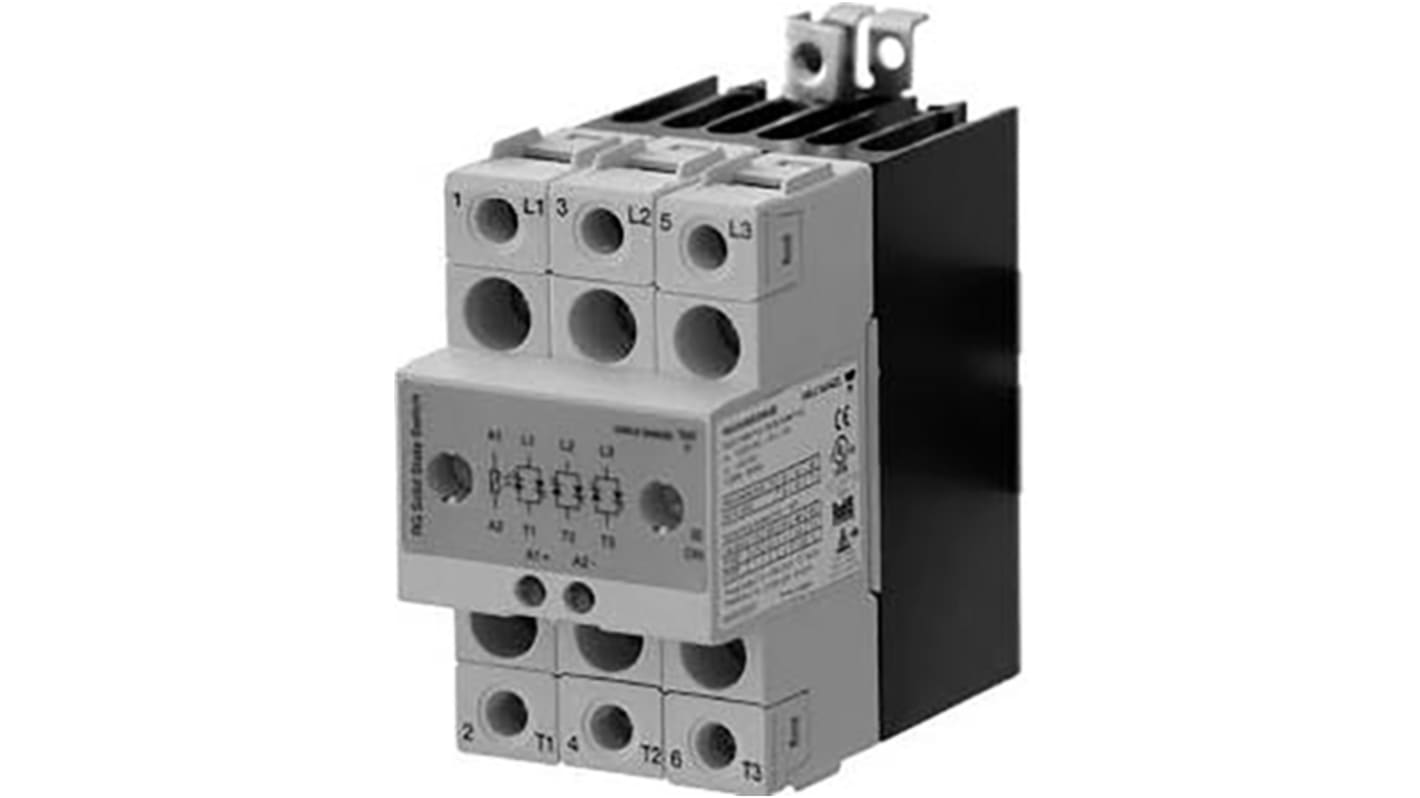

Carlo Gavazzi RGC Series Solid State Relay, 20 A Load, DIN Rail Mount, 660 V ac Load, 32 V dc Control
- RS-artikelnummer:
- 857-3092
- Distrelec artikelnummer:
- 110-73-847
- Tillv. art.nr:
- RGC3A60D20KKE
- Tillverkare / varumärke:
- Carlo Gavazzi
Mängdrabatt möjlig
Antal (1 enhet)*
3 152,77 kr
(exkl. moms)
3 940,96 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 6 enhet(er) från den 22 december 2025
- Dessutom levereras 6 enhet(er) från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 4 | 3 152,77 kr |
| 5 - 11 | 3 055,02 kr |
| 12 + | 2 957,25 kr |
*vägledande pris
- RS-artikelnummer:
- 857-3092
- Distrelec artikelnummer:
- 110-73-847
- Tillv. art.nr:
- RGC3A60D20KKE
- Tillverkare / varumärke:
- Carlo Gavazzi
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Maximum Load Current | 20 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 660 V ac | |
| Minimum Load Voltage | 42 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 5 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 5 → 32 V dc | |
| Minimum Load Current | 250 mA | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Output Device | Varistor | |
| Relay Type | Three Phase | |
| Series | RGC | |
| Maximum Turn On Time | 1 s | |
| Load Voltage Range | 42 → 660V ac | |
| Dimensions | 54 x 102.5 x 110mm | |
| Depth | 102.5mm | |
| Off State Leakage Current | 5 mA | |
| Length | 54mm | |
| Operating Temperature Range | -40 → +80°C | |
| Special Features | EMR Alarm Output And Auxiliary Output | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +80°C | |
| Height | 110mm | |
| Välj alla | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Maximum Load Current 20 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 660 V ac | ||
Minimum Load Voltage 42 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 5 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 5 → 32 V dc | ||
Minimum Load Current 250 mA | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Output Device Varistor | ||
Relay Type Three Phase | ||
Series RGC | ||
Maximum Turn On Time 1 s | ||
Load Voltage Range 42 → 660V ac | ||
Dimensions 54 x 102.5 x 110mm | ||
Depth 102.5mm | ||
Off State Leakage Current 5 mA | ||
Length 54mm | ||
Operating Temperature Range -40 → +80°C | ||
Special Features EMR Alarm Output And Auxiliary Output | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +80°C | ||
Height 110mm | ||
- COO (Country of Origin):
- MT
RGC Series Solid State Contactors
The RGC series of solid state contactors from Carlo Gavazzi are an evolution of the solid state switches and provide an opportunity to maximise panel space with the smallest contactor at 17.5mm.
Power and control terminals allow for safe looping of cables
Integrated voltage transient protection with varistor
Short circuit current rating: 100 kA
IP20 ingress protection
Integrated voltage transient protection with varistor
Short circuit current rating: 100 kA
IP20 ingress protection
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
