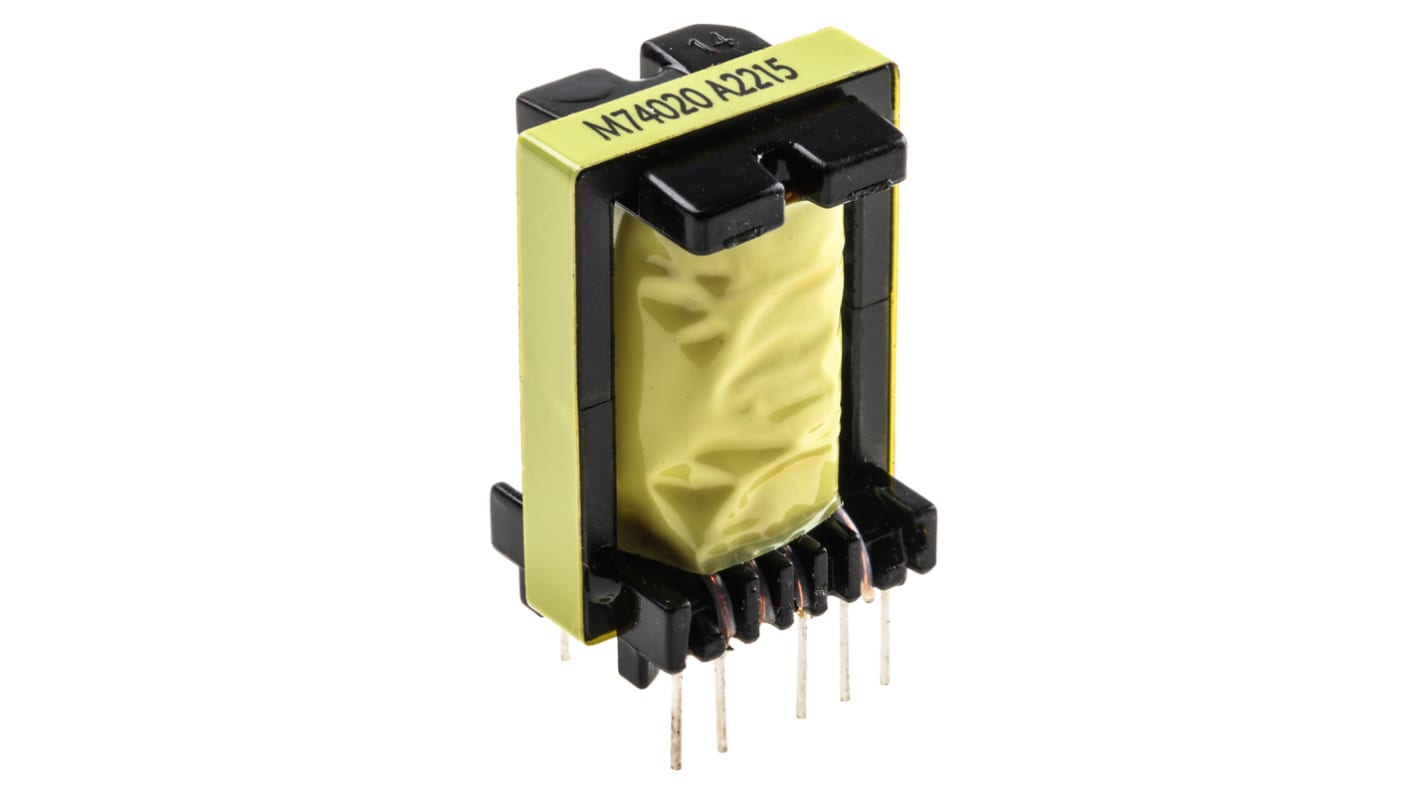

2 Output 10 → 16W Flyback SMPS Transformer, 85 → 265V ac, 10 → 17 V ac, 4 → 7 V ac

Se alla SMPS Transformers

Antal (1 enhet)*

94,64 kr

(exkl. moms)

118,30 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Begränsat lager
  • 50 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +94,64 kr

*vägledande pris

RS-artikelnummer:
418-5537
Tillv. art.nr:
74020
Tillverkare / varumärke:
Myrra
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Myrra

Secondary Voltage Rating

10 → 17 V ac, 4 → 7 V ac

Primary Voltage Rating

85 → 265V ac

Power Rating

10 → 16W

Number of Outputs

2

Mounting Type

Through Hole

Application

Flyback

Secondary Current

1.4 A, 3 A

Termination Type

Pin

Length

21mm

Width

31mm

Depth

17mm

Dimensions

21 x 31 x 17mm

Construction

CEI335, CEI61558, CEI950

Maximum Temperature

+50°C

Number of Phases

1

Maximum Operating Frequency

132kHz

COO (Country of Origin):
FR

Switch mode power transformers format E16 & EL19, 1 W → 16 W


Transformers forming the core of a switch mode power supply, in association with a specialist circuit (VIPer, TOPSwitch, CoolSet, or control circuit + Mosfet).
The secondaries can be connected in series.
Materials comply with UL94-V0.

Standards

IEC 950, IEC 61558 for reinforced insulation


Open Frame - Laminated


PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.


Double section metric bobbin construction
Full varnish impregnation
