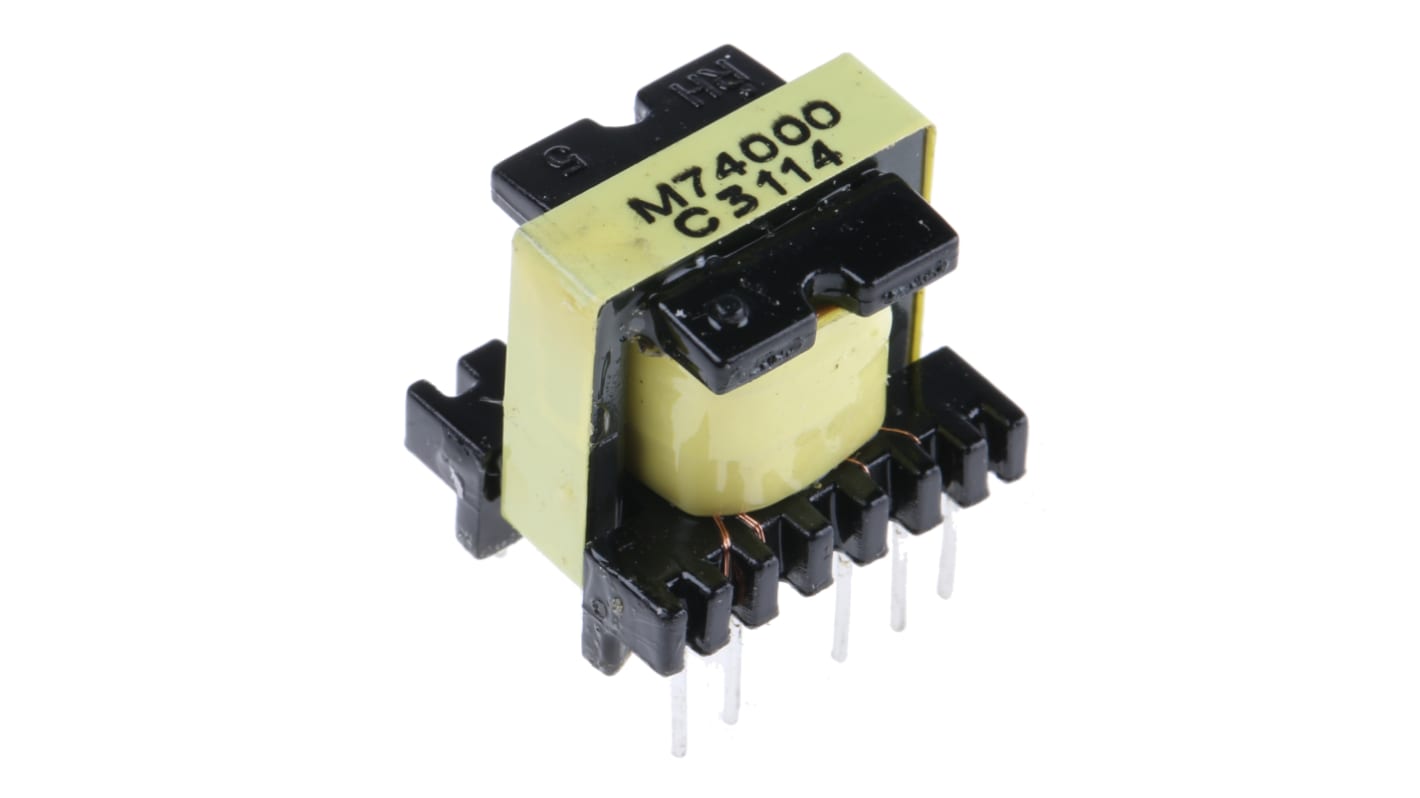

    2 Output 4W Flyback SMPS Transformer, 85 → 265V ac, 3.3 → 7 V dc, 8 → 17 V dc

    RS-artikelnummer:
    418-5470
    Tillv. art.nr:
    74000
    Tillverkare / varumärke:
    Myrra
    Myrra
    Se alla SMPS Transformers
    10 I lager för avsändande samma dag
    9 Inom 1 arbetsdag(ar) (UK lager)
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    36,37 kr

    (exkl. moms)

    45,46 kr

    (inkl. moms)

    EnheterPer unit
    1 - 2436,37 kr
    25 - 4928,93 kr
    50 - 9927,56 kr
    100 - 24926,09 kr
    250 +24,83 kr
    RS-artikelnummer:
    418-5470
    Tillv. art.nr:
    74000
    Tillverkare / varumärke:
    Myrra

    Ej tillämpbart

    COO (Country of Origin):
    FR

    Lagstiftning och ursprungsland

    Ej tillämpbart

    COO (Country of Origin):
    FR

    Produktdetaljer

    Switch mode power transformers format E16 & EL19, 1 W → 16 W


    Transformers forming the core of a switch mode power supply, in association with a specialist circuit (VIPer, TOPSwitch, CoolSet, or control circuit + Mosfet).
    The secondaries can be connected in series.
    Materials comply with UL94-V0.


    Standards

    IEC 950, IEC 61558 for reinforced insulation


    Open Frame - Laminated


    PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.


    Double section metric bobbin constructionFull varnish impregnation


    Specifikationer

    AttributeValue
    Secondary Voltage Rating3.3 → 7 V dc, 8 → 17 V dc
    Primary Voltage Rating85 → 265V ac
    Power Rating4W
    Number of Outputs2
    Mounting TypeThrough Hole
    ApplicationFlyback
    Secondary Current1.2 A, 350 mA
    Termination TypePin
    Length18mm
    Width17.5mm
    Depth16mm
    Dimensions18 x 17.5 x 16mm
    Maximum Temperature+50°C
    Maximum Operating Frequency70kHz
    Number of Phases1
    ConstructionCEI335, CEI61558, CEI950
