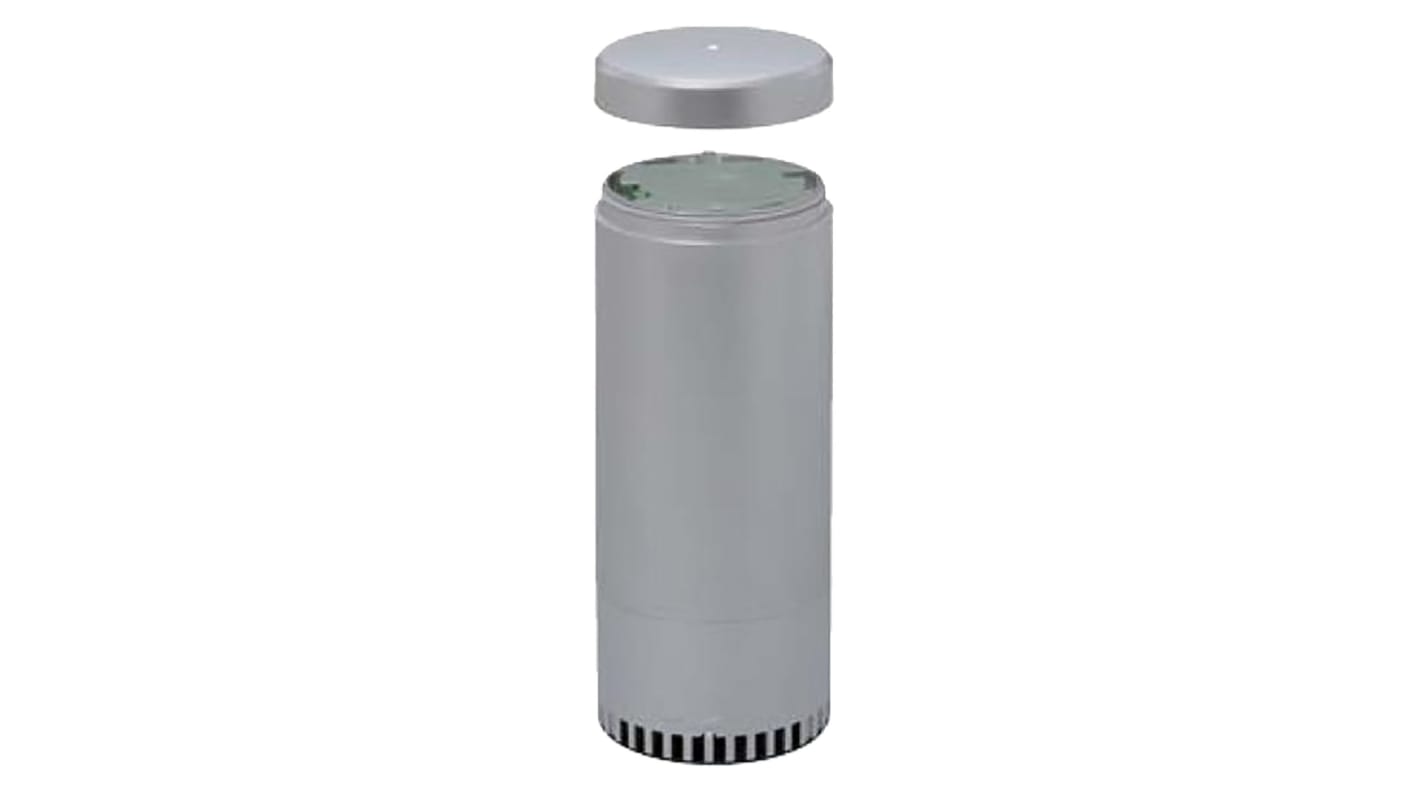

LED 70mm Base Flashing Strobe


I lager för leverans inom 2 arbetsdagar
Add to Basket

Pris (ex. moms) Each

734,31 kr

(exkl. moms)

917,89 kr

(inkl. moms)

Enheter

Nästa dag-leverans inte möjlig

Lagt till varukorgen

RS-artikelnummer:
124-9219
Tillv. art.nr:
LU7-02UFB+FB150
Tillverkare / varumärke:
Patlite
COO (Country of Origin):
ID
EnheterPer unit
1 +734,31 kr

Patlite LU7 Signal Tower


The LU7 Signal Towers from Patlite have an IP65 protection rating making them suitable for various applications. They feature an easy assembly and wiring design which reduces time on installation and maintenance which helps to reduce costs.
The LU7-USB module offers a stackable base unit which does not require a power supply. The unit is connected with a single USB cable (not included).
The LU7-LB voice and sound module emits 4 different alarm sounds in all directions.


Features and Benefits


Hybrid Prism Cut Lens for enhanced visibility from any direction and distance
FB type: 2 selectable built-in alarms with adjustable volume up to 90 dB at 1 m
Direct mount (Pole mount with optional parts)
Colour coordinated terminal block corresponds to the lens colours for quick wiring verification in the base unit
Interchangeable LED module means no rewiring even after installation
Superior impact and heat resistant polycarbonate lens for superior durability and light transmission
Available colours: Red, Amber, Green, Blue, Clear/White


LU7-USB Module


Needs only one USB Cable, so no power supply is necessary (Cable not included) operates with DLL software
A maximum of five tiers with 3 tiers capable of lighting simultaneously
Adjustable alarm frequency
Two adjustable alarm sound levels
Sound pressure is a maximum of 80 dB
Four flashing patterns
13 different alarm sounds
USB cable binding strip is included
Supports Windows 7 and Windows 8 Operating Systems


LU7-LB Voice and Sound Module


Sound pressure is a maximum of 100 dB (±5 dB)
4 alarm sounds via dip switch
Protection rating of IP40
Complies with CE/RoHS/FCC Standards
Attach to the LU7 Base Units (LU7-02/LU7-02FB)
Connects with an LED unit for simultaneous control


Standards

Complies with CE, RoHS, FCC and KC.

AttributeValue
SeriesLU7
MultifunctionYes
Current TypeDC
Light EffectFlashing, Strobe
Lamp IncludedYes
Bulb TypeLED
Supply Voltage24 V dc
Base Diameter70mm
Maximum Temperature+60°C
IP RatingIP65
Minimum Temperature-30°C
Housing ColourSilver
