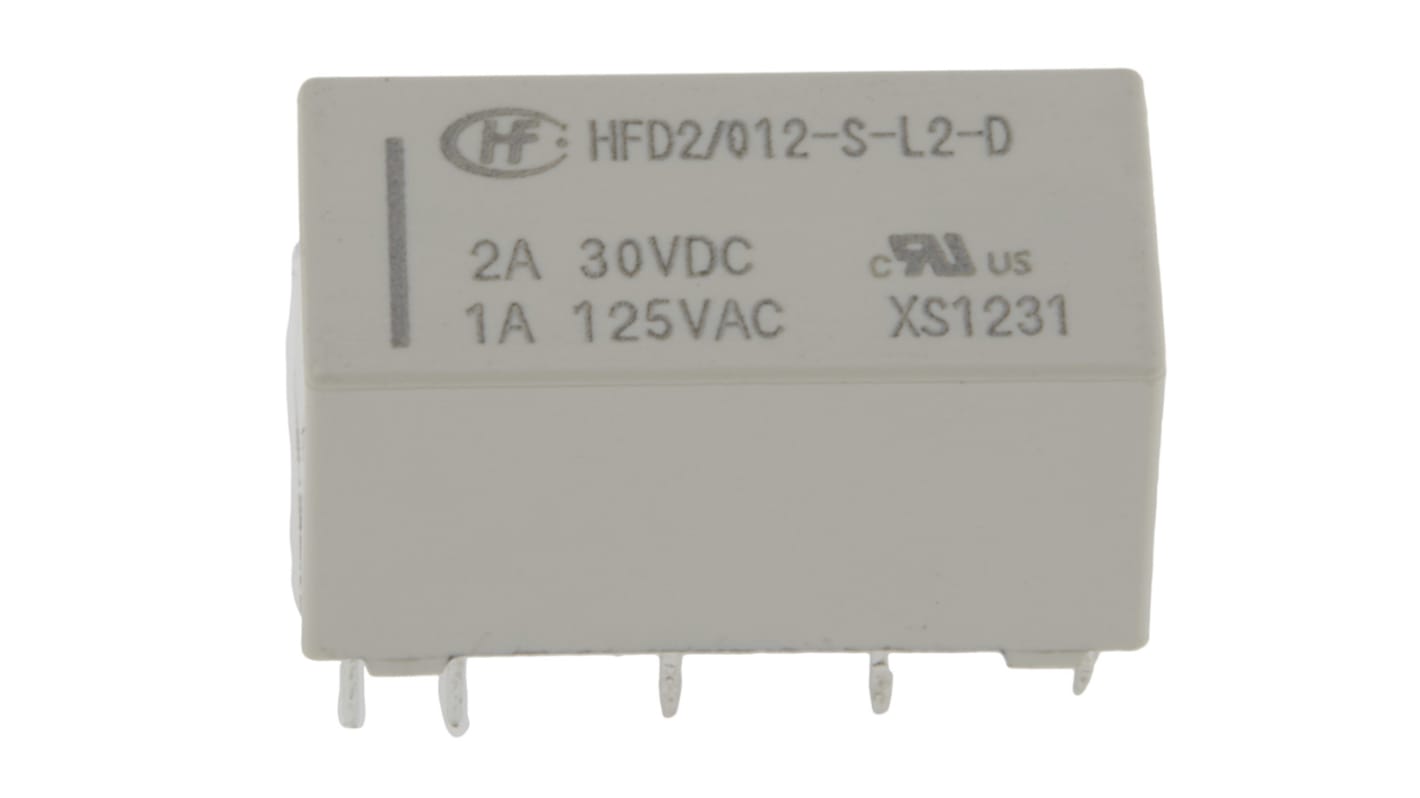

Hongfa Europe GMBH PCB Mount Latching Signal Relay, 12V dc Coil, 3A Switching Current, DPDT

Se alla Signal Relays

Antal (1 förpackning med 2 enheter)*

68,43 kr

(exkl. moms)

85,538 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • 96 kvar, redo att levereras
  • Plus 42 enhet(er) är redo att levereras från en annan plats
Enheter
Per enhet
Per förpackning*
2 +34,215 kr68,43 kr

*vägledande pris

RS-artikelnummer:
176-2976
Tillv. art.nr:
HFD2/012-S-L2-D
Tillverkare / varumärke:
Hongfa Europe GMBH
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Hongfa Europe GMBH

Coil Voltage

12V dc

Contact Configuration

DPDT

Mounting Type

PCB Mount

Maximum Switching Current AC

3 A

Maximum Switching Current DC

3 A

Maximum Switching Voltage AC

250V

Maximum Switching Voltage DC

220V

Series

HFD2

Maximum Switching Power DC

90 W

Latching

Yes

Length

20.2mm

Depth

10.2mm

Height

10.6mm

Dimensions

20.2 x 10.2 x 10.6mm

Terminal Type

PCB Pin

Switching Current

3A

Number of Poles

2

Relay Switching Classification

Subminiature DIP Relay

Electrical Life

5 x 10^4 cycles

Isolation Coil To Contact

1kV ac

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Contact Material

Silver

Standards Met

CQC File No:CQC13002095175, cULus File No:E133481

Operating Temperature Range

-40 → +85°C

Coil Resistance

960Ω

Maximum Switching Power AC

125VA

Life

1 x 10^8 cycles

Coil Power

150mW

COO (Country of Origin):
CN

Hongfa DPDT Latching Relay


The Hongfa DPDT 2-pole latching PCB mount relay is actuated with the help of a 12VDC coil and up to 3A DC/AC current through the coil for the relay to switch positions. This relay is a subminiature DIP type relay. It can be used in single or double coil winding configuration. This relay has silver alloy contact for high electrical endurance.

Features and Benefits


• Environmental friendly product
• Isolation voltage between the coil and contacts is 1000VAC and 1500VAC for the primary and secondary coil
• Service temperature range between -40°C and 85°C
• High mechanical endurance and life expectancy of 100M cycles
• High surge withstand voltage up to 2500VAC
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving

Applications


• Used as a control device
• Automotive industry
• Household appliances
• Industrial machinery
• Telecommunication
