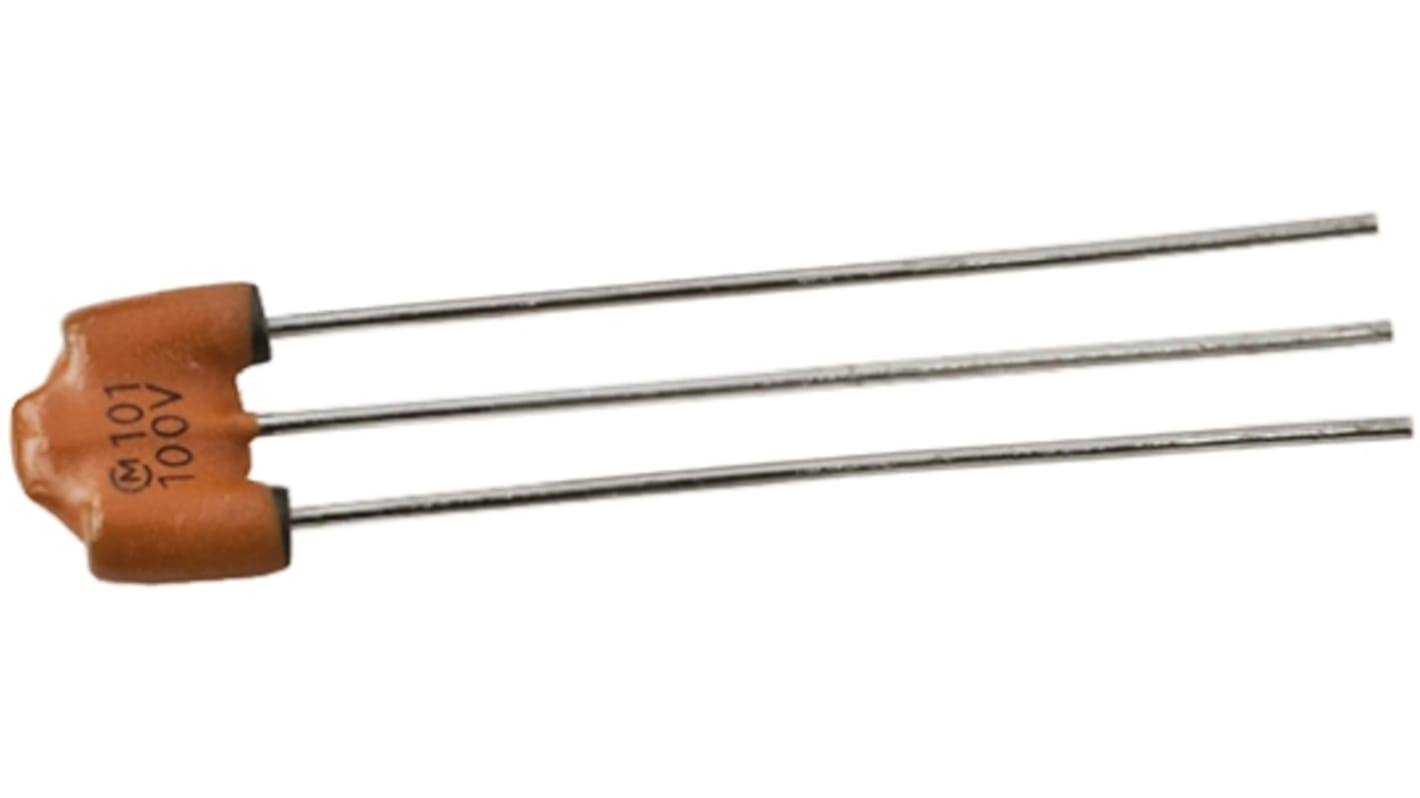

Murata DSN6 Series, Signal Filter, 100 V dc, 6A Through Hole, Radial Termination, 8 x 2.54 x 7mm

  • RS-artikelnummer 725-7313
  • Tillv. art.nr DSS6NZ82A103Q93A
  • Tillverkare / varumärke Murata
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Three Terminal Capacitors DSS6/DSS9 Series

Unlike conventional two terminal capacitors which have high residual inductance within the lead wires, thereby impeding the path of high frequency noise to ground, a three terminal capacitor forms a T-filter providing high inductance in series with the line, via two integral ferrite beads, and low inductance to ground via the bypass capacitor. Thus they provide increased attenuation with frequency over conventional decoupling capacitors

Note: See 'key characteristics' table for details of effective frequency ranges

Applications include:

High frequency noise suppression for d.c. power lines
Noise suppression in digital high impedance circuits
Noise suppression in high speed digital signals (clocks etc.)
Noise suppression in video IF signals

Specifikationer
Attribute Value
Series DSN6
Maximum Current Rating 6A
Maximum Voltage Rating 100 V dc
Mounting Type Through Hole
Termination Style Radial
Dimensions 8 x 2.54 x 7mm
Depth 2.54mm
Height 7mm
Length 8mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -25°C
Denna produkt har utgått
