    Produktdetaljer

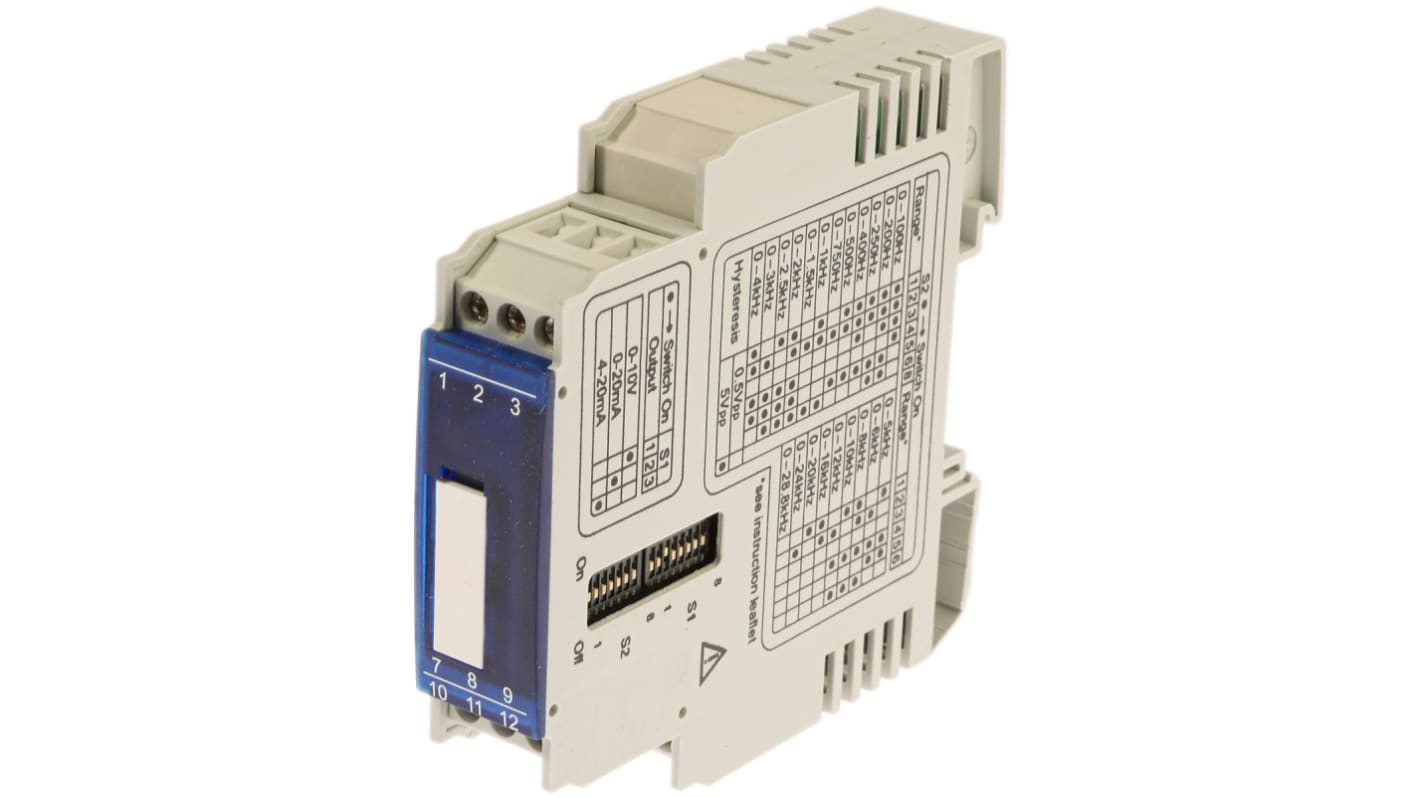

    RS PRO Analogue Output, Signal Conditioner


    This analogue-output signal conditioner lets you convert frequency signals ranging from 0 to 8 kHz into one of three commonly used analogue signals – 0 V to 10V, 0 mA to 20mA or 4 mA to 20mA.

    This converter can accept inputs from rotational speed sensors, rotary pulse encoders and proximity switches. Two-way isolation ensures high resolution, stability and accuracy by eliminating noise, crosstalk or unwanted ground loop currents. Part of the trusted RS PRO range, the signal conditioner is stringently tested for quality. It can handle operating temperatures of -25°C to +60°C and is designed to be easy to use in the field as its compact package easily mounts onto a DIN rail.

    Commonly found in industrial control and monitoring applications, these converters are used for process monitoring, engine performance rating and data acquisition.


    Features and Benefits


    • Micro-compact frequency-to-analogue converter signal conditioner
    • Choose from three output ranges of 0 to 10 V, 0 to 20 mA, 4 to 20 mA
    • 20 input ranges of 0 to 1 kHz, 0 to 10 kHz, 0 to 100 Hz, 0 to 12 kHz, 0 to 16 kHz, 0 to 2 kHz, 0 to 2.5 kHz, 0 to 20 kHz, 0 to 200 Hz, 0 to 24 kHz, 0 to 250 Hz, 0 to 28.8 kHz, 0 to 3 kHz, 0 to 4 kHz, 0 to 400 Hz, 0 to 5 kHz, 0 to 500 Hz, 0 to 6 kHz, 0 to 750 Hz, 0 to 8 kHz
    • Minimum operating temperature of -25°C
    • Maximum operating temperature of +60°C
    • DIN rail mountable
    • Screw-type termination for easy use
    • Complies with cULus standards for use in hazardous locations


    RS PRO


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards

    they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.



    Specifikationer

    AttributeValue
    Module TypeFrequency Converter
    Input Signal TypeFrequency
    Output Signal TypeCurrent, Voltage
    Supply Voltage16.8 → 30 V dc, 19.2 → 28.8V ac
    Input Range0 → 1 kHz, 0 → 10 kHz, 0 → 100 Hz, 0 → 12 kHz, 0 → 16 kHz, 0 → 2 kHz, 0 → 2.5 kHz, 0 → 20 kHz, 0 → 200 Hz, 0 → 24 kHz, 0 → 250 Hz, 0 → 28.8 kHz, 0 → 3 kHz, 0 → 4 kHz, 0 → 400 Hz, 0 → 5 kHz, 0 → 500 Hz, 0 → 6 kHz, 0 → 750 Hz, 0 → 8kHz
    Output Range0 → 10 V, 0 → 20 mA, 4 → 20mA
    Mounting TypeDIN Rail Mount
    Operating Temperature Range-25 → +60°C
    Minimum Operating Temperature-25°C
    Standards MetcULus
    TerminationScrew
    Maximum Operating Temperature+60°C
    SeriesMINI MCR-2-V8-MOD-TCP
