Produktdetaljer

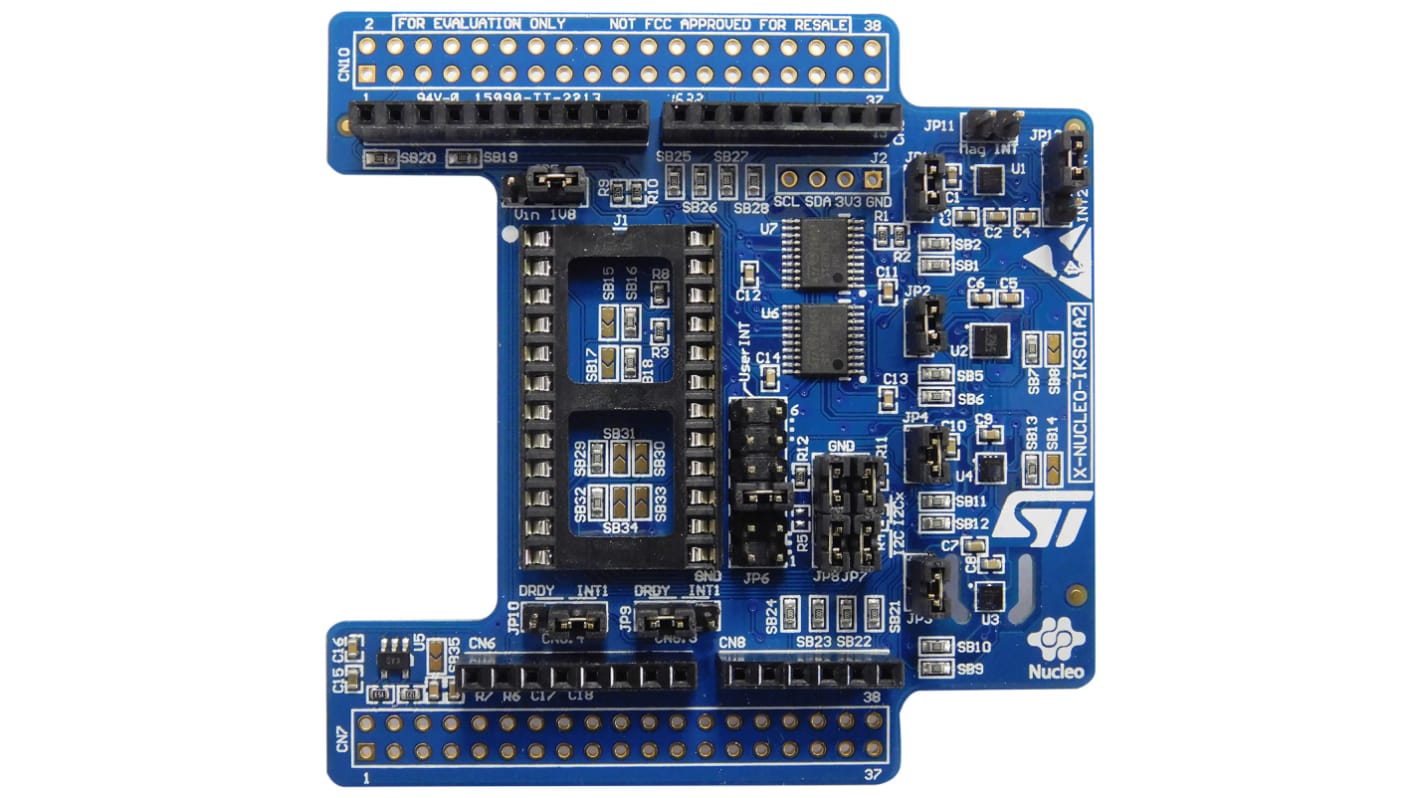

X-NUCLEO-IKS01A2 Motion/Environmental Sensor Shield
The X-NUCLEO-IKS01A2 is a motion MEMS and environmental sensor expansion board for the Nucleo series of STM32 development boards. The X-NUCLEO-IKS01A2 interfaces with the microcontroller via the I²C pin, and it is possible to change the default I²C port.
• LSM6DSL MEMS 3D accelerometer and gyroscope
• LSM303AGR MEMS 3D accelerometer and magnetometer
• LPS22HB MEMS 260-1260hPa absolute digital output barometer
• HTS221 capacitive relative humidity and temperature sensor
• DIL24 socket for additional MEMS adapters and other sensors
• I²C sensor hub features on LSM6DSL available
• Arduino UNO Rev3 Shield headers
• Free comprehensive development firmware library and examples for all sensors compatible with STM32Cube firmware
• LSM303AGR MEMS 3D accelerometer and magnetometer
• LPS22HB MEMS 260-1260hPa absolute digital output barometer
• HTS221 capacitive relative humidity and temperature sensor
• DIL24 socket for additional MEMS adapters and other sensors
• I²C sensor hub features on LSM6DSL available
• Arduino UNO Rev3 Shield headers
• Free comprehensive development firmware library and examples for all sensors compatible with STM32Cube firmware
Sensor Solution Evaluation Boards, STMicroelectronics
Specifikationer
Attribute | Value |
|---|---|
| Product Name | Motion MEMS and environmental sensor expansion board |
| Kit Classification | Shield |
| Processor Part Number | X-NUCLEO-IKS01A2 |
| For Use With | Arduino, Nucleo |
