MikroElektronika Hall Current 11 Click Hall Effect Sensor Add On Board for TMCS1108A2U MikroBUS

Se alla Sensor Development Tools
Mängdrabatt möjlig

Antal (1 låda med 1 enhet)*

394,02 kr

(exkl. moms)

492,52 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 4 enhet(er) från den 08 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Låda(or)
Per Låda
1 - 4394,02 kr
5 - 9374,30 kr
10 +354,59 kr

*vägledande pris

RS-artikelnummer:
247-1026
Tillv. art.nr:
MIKROE-4797
Tillverkare / varumärke:
MikroElektronika
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

MikroElektronika

Sensor Technology

Hall Effect Sensor

Featured Device

TMCS1108A2U

For Use With

MikroBUS

Kit Classification

Add On Board

Kit Name

Hall Current 11 Click

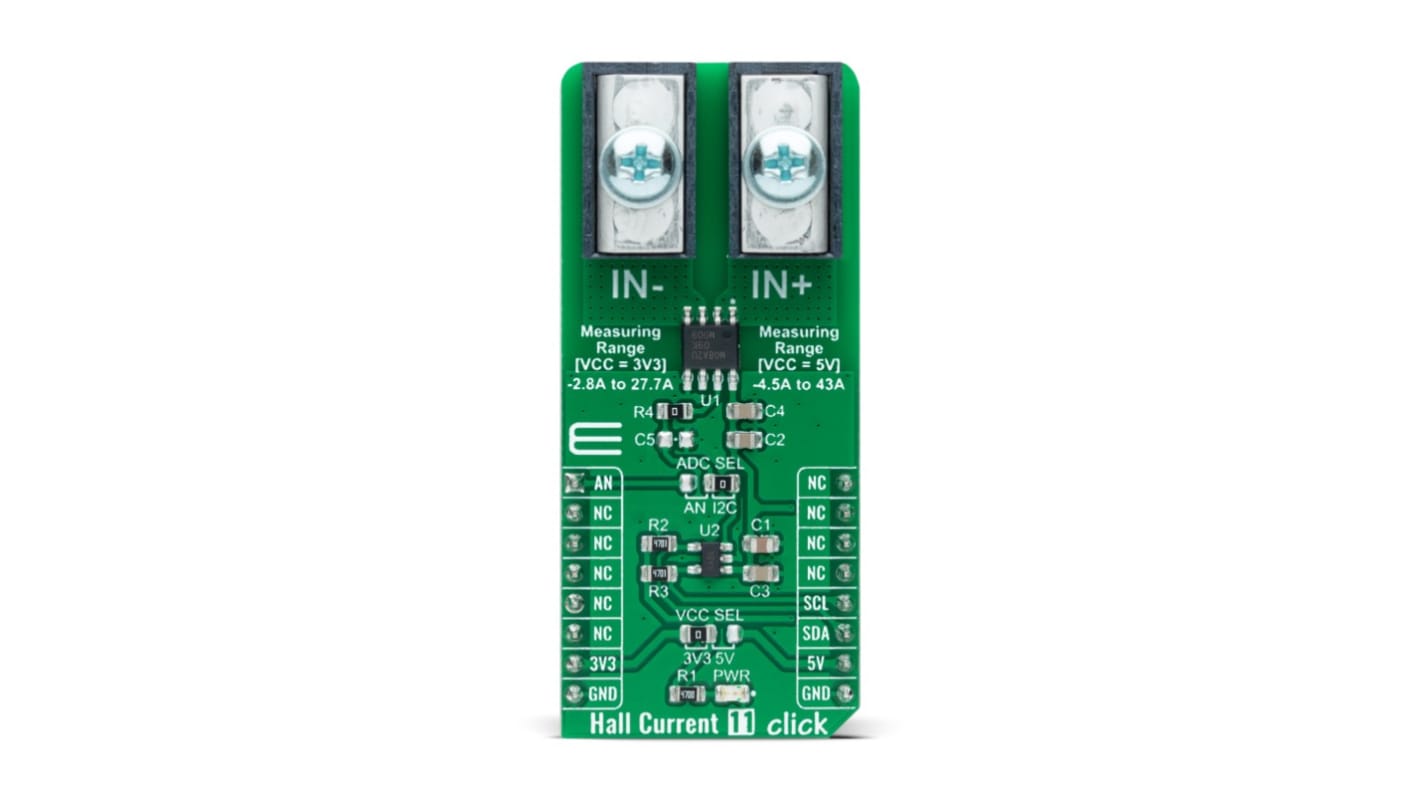

The MikroElektronika the Hall Current 11 Click is a compact add-on board that provides economical and precise AC or DC current sensing solutions. This board features the TMCS1108A2U, a galvanically isolated Hall-effect current sensor with high accuracy, excellent linearity, and temperature stability from Texas Instruments. The input current flows through an internal 1.8mΩ conductor that generates a magnetic field measured by an integrated Hall-effect sensor. It features a 100V functional isolation working voltage with both unidirectional and bidirectional current sensing. Based on the selected logic voltage VCC, the TMCS1108A2U allows the user to measure current in two appropriate ranges, where after that, can process the output signal in analog or digital form. This Click board is suitable for AC or DC current-sensing in industrial, commercial, and communications systems.

Low power consumption
High accuracy
Featuring a 100V functional isolation working voltage
Bigger than 3% full-scale error across temperature
Both unidirectional and bidirectional current sensing
Possibility of signal processing in analog and digital form
