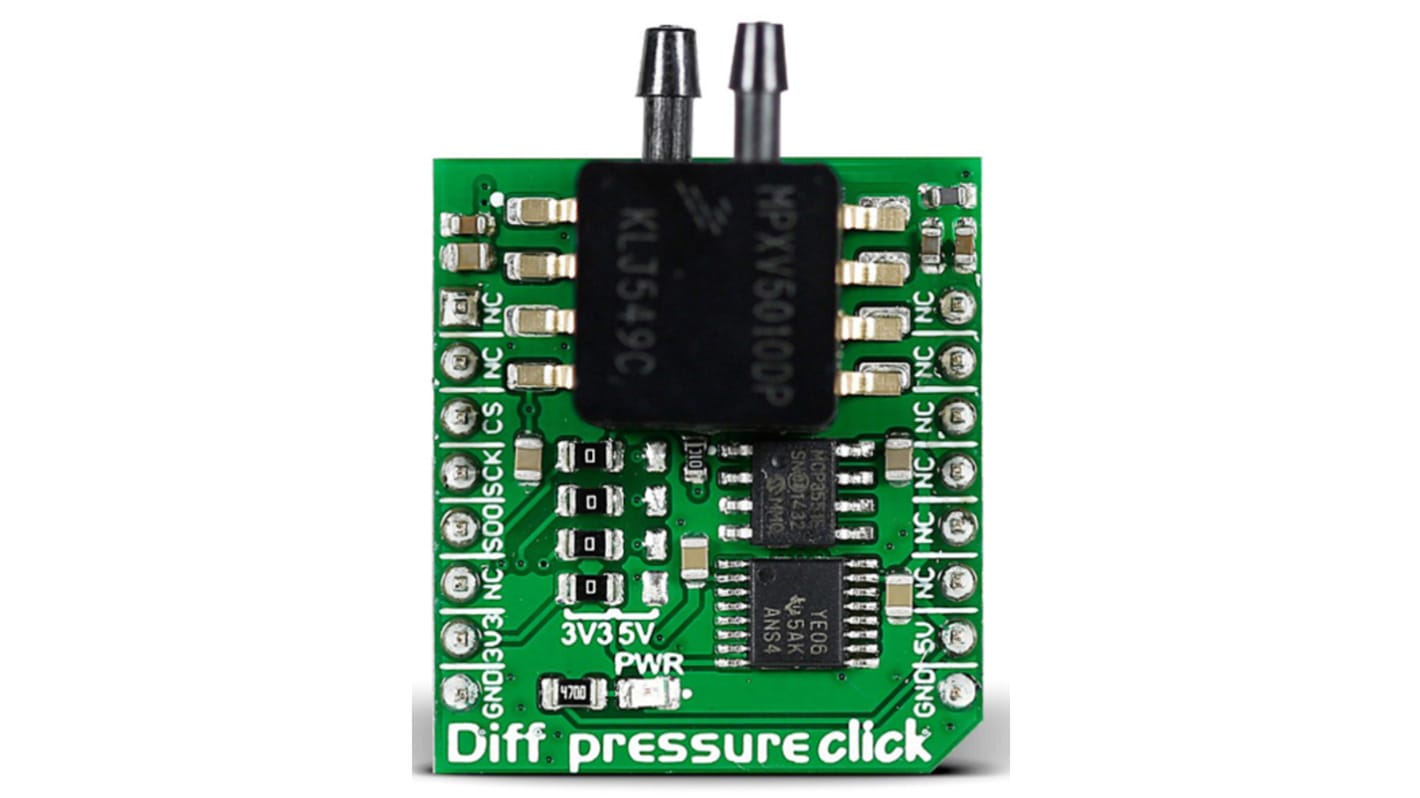

MikroElektronika Diff Pressure Click Differential Pressure Sensor mikroBus Click Board for MPXV5010DP

A Click accessory module for use with MikroElektronika mikroBUS™ microcontroller development boards. The Diff pressure click module has an NXP MPXV5010DP integrated silicon pressure transducer with two axial ports for differential pressure measurements. The device includes signal conditioning and temperature compensation and is factory calibrated. The analogue output from the sensor is processed by an ADC on the click board to provide a digital output for the mikroBUS SPI interface. The click board communicates with the target microcontroller via SPI interface and requires a 3.3 or 5V power supply.

• Temperature compensated differential pressure sensor
• Measurement range 0 to 10 kPa
• Maximum error ±5% over 0°C to 85ºC

Click board comes with the header strips soldered.
