MikroElektronika MIKROE-1877, 3D Motion Click Inertial Measurement Unit (IMU) - 9 DoF mikroBus Click Board for MM7150

  • RS-artikelnummer 136-0723
  • Tillv. art.nr MIKROE-1877
  • Tillverkare / varumärke MikroElektronika
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

3D Motion click mikroBUS™

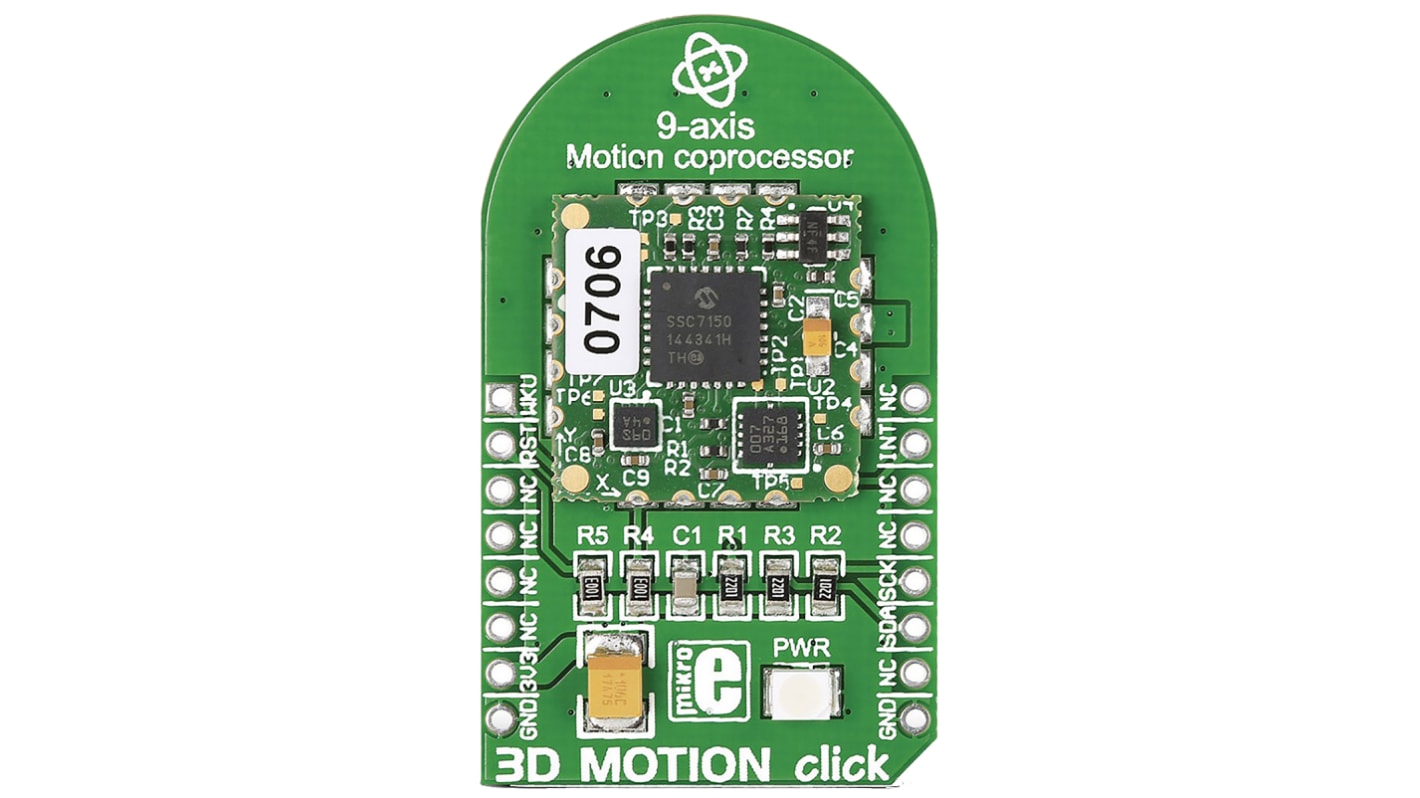

3D Motion click board by MikroElektronika is a mikroBUS add-on board with MM7150 9-axis sensor fusion motion module from Microchip. The module has a 3-axis accelerometer, gyroscope, magnetometer and SSC7150 motion coprocessor providing an accurate positioning and orientation information. The click board communicates with the target MCU through the mikroBUS I2C interface.

Areas of applications include Internet of Things, remote controls, gaming and fitness monitoring.

Features

Complete self-contained solution comprising a 3-axis accelerometer, a gyroscope, a magnetometer
Sensor fusion ensures gyroscope drift cancellation and magnetic immunity
Interface I2C
Power Supply 3.3 V
Compatibility mikroBUS
Click board size 42.9 x 25.4 mm

Note

Click board comes with the header strips soldered.

Click mikroBUS™ Sensor Boards

MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.

Specifikationer
Attribute Value
Sensor Technology Inertial Measurement Unit (IMU) - 9 DoF
Featured Device MM7150
Kit Classification MikroBus Click Board
Kit Name 3D Motion Click
7 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
514,83 kr
(exkl. moms)
643,54 kr
(inkl. moms)
Enheter
Per unit
1 +
514,83 kr
