Phoenix Contact Straight Male 3 way M12 to Straight Female 3 way M8 Sensor Actuator Cable, 3m

RS-artikelnummer:: 861-1425
Distrelec artikelnummer:: 110-33-837
Tillv. art.nr:: 1668823
Tillverkare / varumärke:: Phoenix Contact

Phoenix Contact Straight Male 3 way M12 to Straight Female 3 way M8 Sensor Actuator Cable, 3m

Price Varje**

250,32 kr

(exkl. moms)

312,90 kr

(inkl. moms)

38 I lager för avsändande samma dag*

5 Inom 1 arbetsdag(ar) (UK lager)

* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.

FRI frakt på alla onlineordrar över 500,00 kr

Finns det i lager?

Enheter	Per enhet
1 +	250,32 kr

**vägledande pris

RS-artikelnummer:: 861-1425
Distrelec artikelnummer:: 110-33-837
Tillv. art.nr:: 1668823
Tillverkare / varumärke:: Phoenix Contact

Datasheet 1668823

Logga in för att ladda ner CAD-modeller

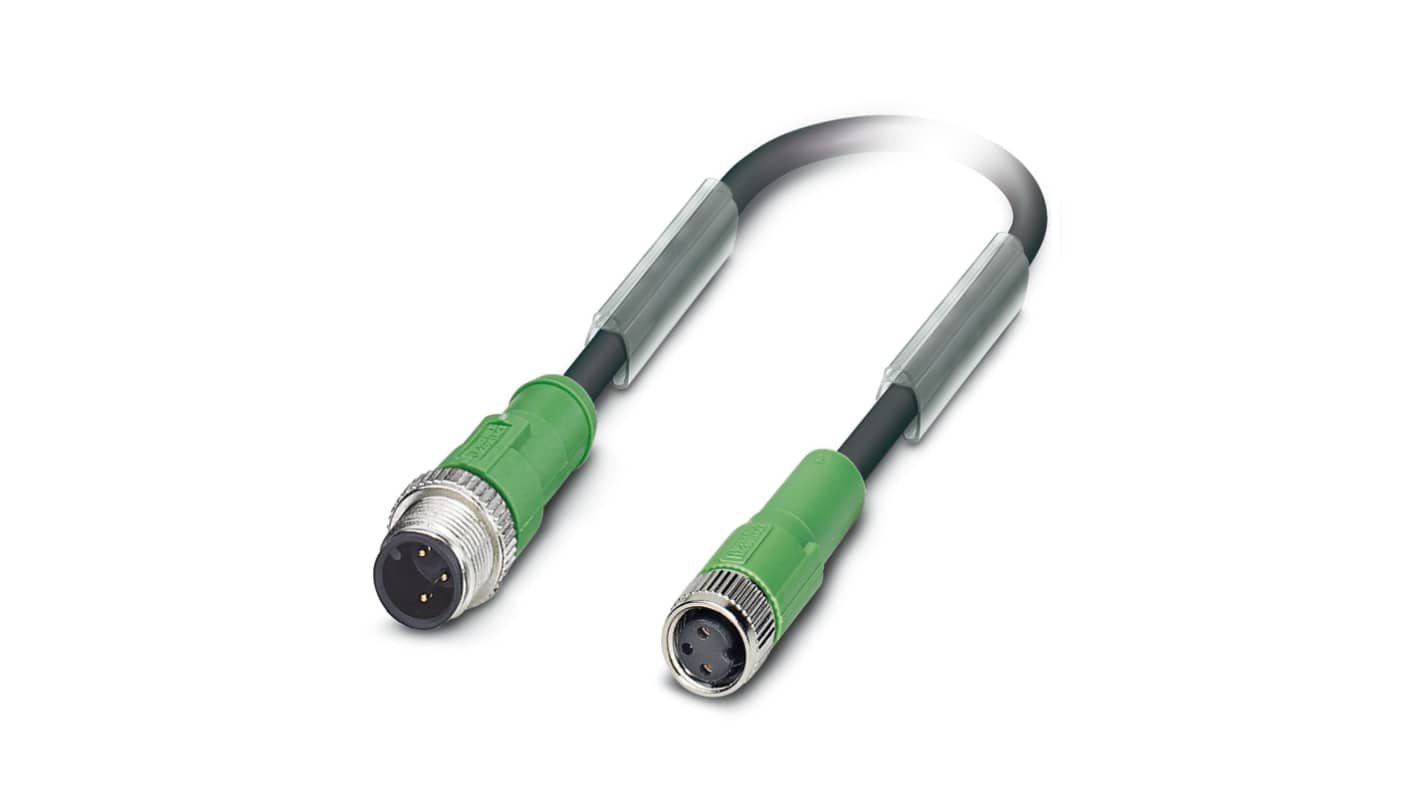

Phoenix Contact SAC-3P-M12MS/3,0-PUR/M 8FS Series Sensor Actuator Cable, 3m Length, 3 Cores - 1668823

This sensor actuator cable is a highly functional solution designed for reliable automation and electrical applications. With a total length of 3m, this unshielded sensor cable features a male M12 connector and a female M8 connector, both oriented straight for ease of installation. Crafted with a durable PUR halogen-free sheath, it ensures longevity and resistance to harsh environments.

Features & Benefits

• 100% electrically tested plug-in components enhance safety
• High-temperature ratings ensure reliable operation in various conditions
• Unshielded 3-core design supports flexible installation options
• IP65, IP67, and IP68 ratings provide water and dust resistance
• Easy connection with M12 male to M8 female connectors
• Halogen-free material promotes environmental safety

Applications

• Suitable for connecting sensors and actuators in industrial automation
• Used with machines requiring high-temperature performance
• Ideal for needing secure and reliable connectivity in harsh environments
• Perfect for installations requiring flexibility and mobility

What material is used in the insulation and why is it beneficial?

The insulation material is made of polypropylene (PP), which offers excellent resistance to moisture and allows for reliable performance in various operational environments.

How many insertion cycles can be expected before wear becomes an issue?

The design allows for a minimum of 100 insertion and withdrawal cycles, ensuring longevity and repeatability in applications without compromising functionality.

Are there specific resistance characteristics associated with this product?

Yes, it features an insulation resistance of greater than 100 MΩ, which contributes to its reliability in preventing electrical faults and ensuring safety during use.

What is the significance of the halogen-free rating in this cable?

The halogen-free rating means the cable is safer in the event of a fire, as it reduces the release of toxic gases, making it suitable for environmentally conscious applications.

Attribute	Value
Series	0-PUR/M 8FS, SAC-3P-M12MS/3
Number of Cores	3
Cross Sectional Area	0.25 mm²
Sheath Material	PUR
Sheath Colour	Black/Grey
Length	3m
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	3
Connector 1	M12
Connector 1 Gender	Male
Connector 2 Gender	Female
Connector 2 Orientation	Straight
Connector 2 Number of Contacts	3
Connector 2	M8
Coding	A
Shielding	Unshielded
Shielded/Unshielded	Unshielded
Current Rating	4 A
Voltage Rating	48 V AC, 60 V dc
IP Rating	IP65, IP67, IP68
Minimum Operating Temperature	-25 °C, -40 °C
Standards Met	UL Listed
Operating Temperature Range	-25 → +80 °C, -40 → +80 °C
American Wire Gauge	24 AWG
Conductor Material	Bare Cu litz wires
Insulation Material	PP
Maximum Operating Temperature	+80°C
Minimum Bend Radius	18 mm (Fixed), 36 mm (Movable)
