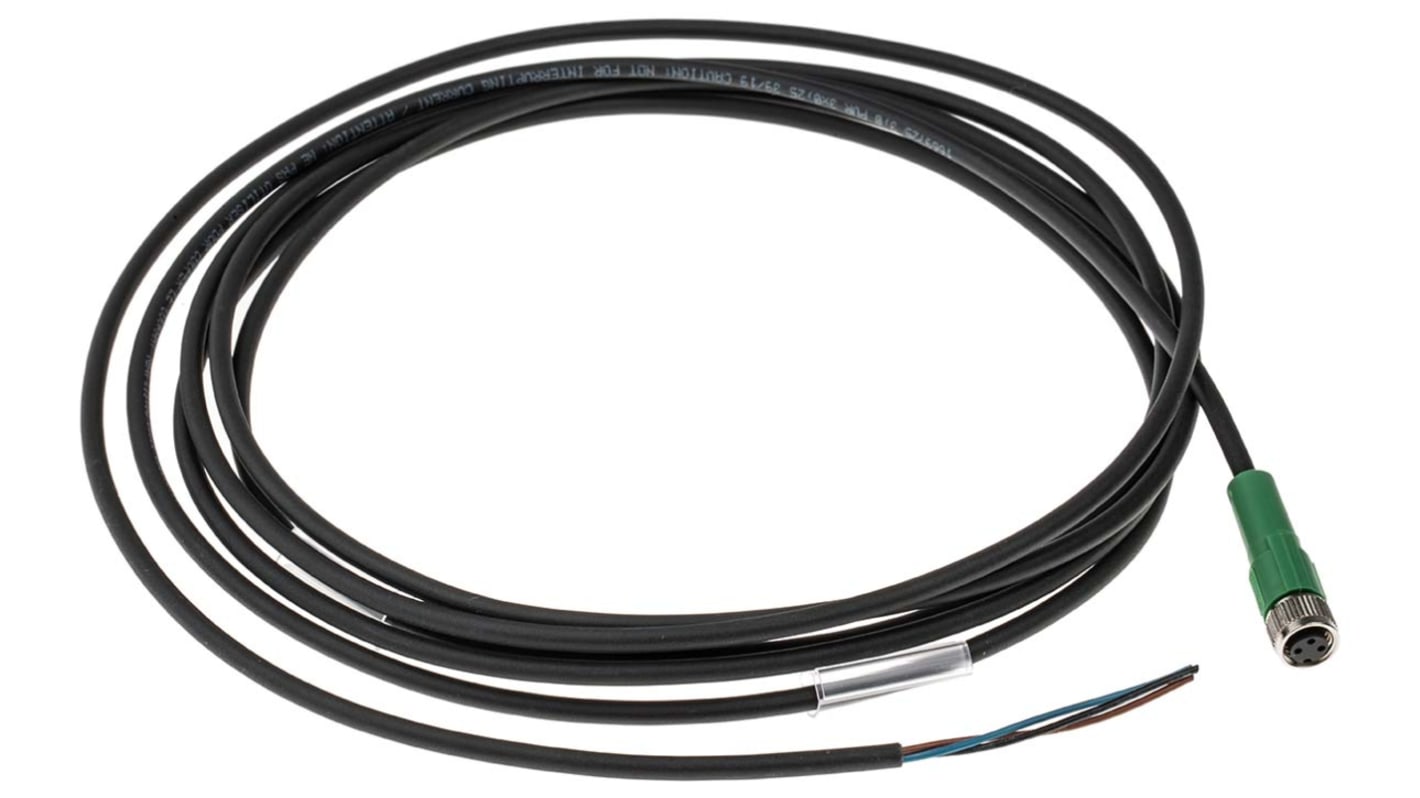

Phoenix Contact Straight Female 3 way M8 to Unterminated Sensor Actuator Cable, 3m
- RS-artikelnummer:
- 648-5069
- Distrelec artikelnummer:
- 144-74-969
- Tillv. art.nr:
- 1669725
- Tillverkare / varumärke:
- Phoenix Contact
Mängdrabatt möjlig
Price Varje*
188,64 kr
(exkl. moms)
235,80 kr
(inkl. moms)
GRATIS leverans för beställningar över 500,00 kr
I lager
- 12 enhet(er) är redo att levereras
- Plus 31 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 10 enhet(er) från den 23 juni 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
---|---|
1 - 4 | 188,64 kr |
5 - 24 | 182,76 kr |
25 + | 175,44 kr |
*vägledande pris
- RS-artikelnummer:
- 648-5069
- Distrelec artikelnummer:
- 144-74-969
- Tillv. art.nr:
- 1669725
- Tillverkare / varumärke:
- Phoenix Contact
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC-3P- 3.0-PUR/M 8FS | |
Number of Cores | 3 | |
Cross Sectional Area | 0.34 mm² | |
Sheath Colour | Black | |
Length | 3m | |
Sheath Material | Polyurethane PUR | |
Connector 1 Gender | Female | |
Connector 1 | M8 | |
Connector 1 Number of Contacts | 3 | |
Connector 1 Orientation | Straight | |
Connector 2 | Unterminated | |
Coding | A | |
Armoured | No | |
Shielded/Unshielded | Shielded | |
Voltage Rating | 48 V ac | |
Current Rating | 4 A | |
IP Rating | IP65, IP67, IP68 | |
Operating Temperature Range | -25 → +90 °C | |
Minimum Operating Temperature | -25°C | |
Oil Resistant | Yes | |
Insulation Material | PP | |
Minimum Bend Radius | 18 mm | |
Cable Shape | Round | |
Standards Met | cUL, cULus, UL | |
Maximum Operating Temperature | +90°C | |
American Wire Gauge | 22 AWG | |
Number of Strands | 3 | |
Connector 1 Housing Gender | Female | |
Välj alla | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC-3P- 3.0-PUR/M 8FS | ||
Number of Cores 3 | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Colour Black | ||
Length 3m | ||
Sheath Material Polyurethane PUR | ||
Connector 1 Gender Female | ||
Connector 1 M8 | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 Orientation Straight | ||
Connector 2 Unterminated | ||
Coding A | ||
Armoured No | ||
Shielded/Unshielded Shielded | ||
Voltage Rating 48 V ac | ||
Current Rating 4 A | ||
IP Rating IP65, IP67, IP68 | ||
Operating Temperature Range -25 → +90 °C | ||
Minimum Operating Temperature -25°C | ||
Oil Resistant Yes | ||
Insulation Material PP | ||
Minimum Bend Radius 18 mm | ||
Cable Shape Round | ||
Standards Met cUL, cULus, UL | ||
Maximum Operating Temperature +90°C | ||
American Wire Gauge 22 AWG | ||
Number of Strands 3 | ||
Connector 1 Housing Gender Female | ||
