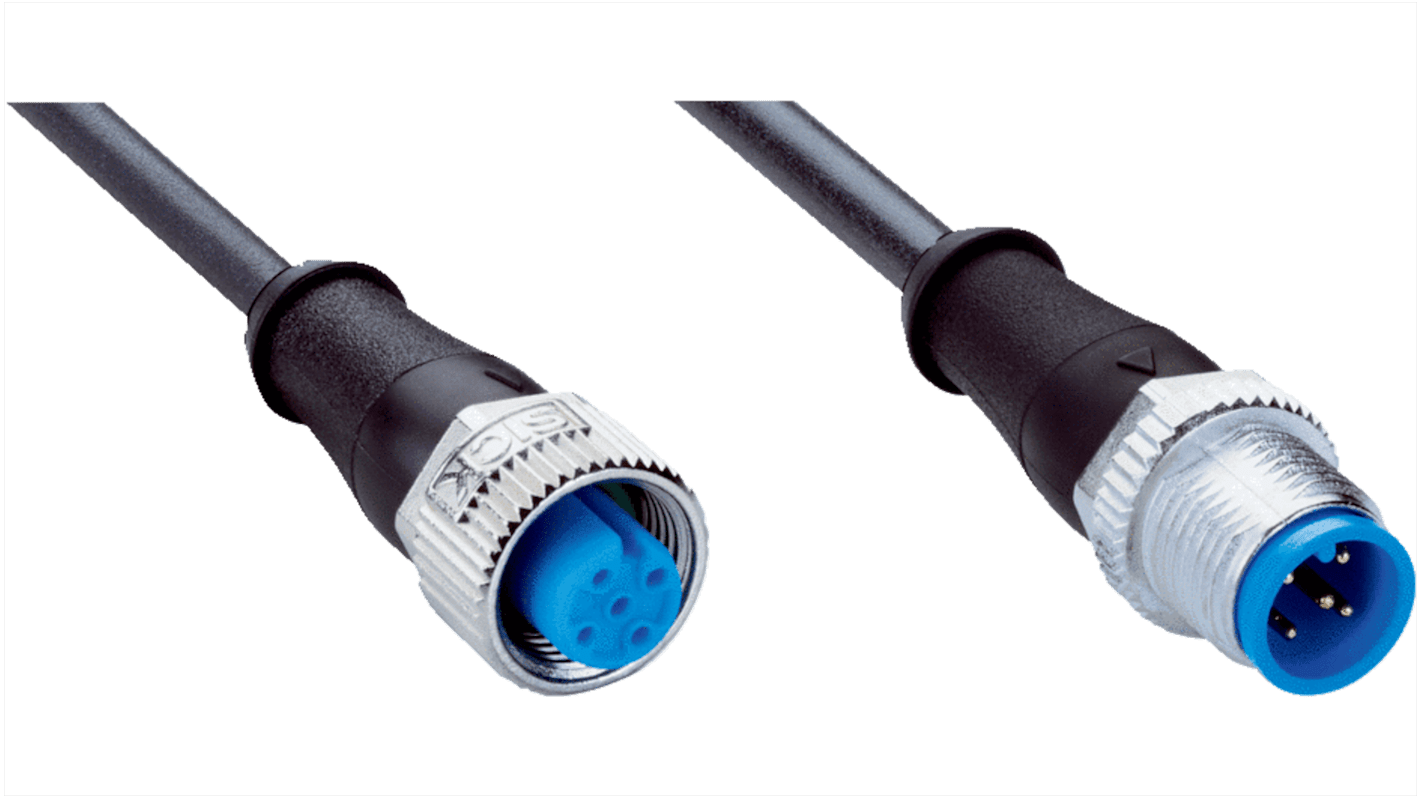

SICK Straight Female 5 way M12 to Straight Male 5 way M12 Connector & Cable, 1.5m
- RS-artikelnummer:
- 285-9130
- Tillv. art.nr:
- YF2A15-015UB5M2A15 / 2096008
- Tillverkare / varumärke:
- SICK
Price Varje*
187,11 kr
(exkl. moms)
233,89 kr
(inkl. moms)
GRATIS leverans för beställningar över 500,00 kr
- 32 enhet(er) är redo att levereras från en annan plats
Enheter | Per enhet |
|---|---|
| 1 + | 187,11 kr |
*vägledande pris
- RS-artikelnummer:
- 285-9130
- Tillv. art.nr:
- YF2A15-015UB5M2A15 / 2096008
- Tillverkare / varumärke:
- SICK
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | SICK | |
| Series | YF2A15 | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.34 mm² | |
| Sheath Colour | Black | |
| Sheath Material | Polyurethane PUR | |
| Length | 1.5m | |
| Connector 1 Gender | Female | |
| Connector 1 Orientation | Straight | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 | M12 | |
| Connector 2 | M12 | |
| Connector 2 Orientation | Straight | |
| Connector 2 Gender | Male | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 Housing Gender | Male | |
| Coding | A | |
| Shielding | Unshielded | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 4 A | |
| Voltage Rating | 125 V ac/dc | |
| IP Rating | IP65, IP66K, IP67 | |
| Maximum Operating Temperature | +80°C | |
| Minimum Bend Radius | 48 mm | |
| Operating Temperature Range | -25 → 80 °C | |
| American Wire Gauge | 22 AWG | |
| Connector 1 Housing Gender | Female | |
| Standards Met | CE | |
| Minimum Operating Temperature | -25°C | |
| Outer Diameter | 4.8mm | |
Välj alla | ||
|---|---|---|
Brand SICK | ||
Series YF2A15 | ||
Number of Cores 5 | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Colour Black | ||
Sheath Material Polyurethane PUR | ||
Length 1.5m | ||
Connector 1 Gender Female | ||
Connector 1 Orientation Straight | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 M12 | ||
Connector 2 M12 | ||
Connector 2 Orientation Straight | ||
Connector 2 Gender Male | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 Housing Gender Male | ||
Coding A | ||
Shielding Unshielded | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 125 V ac/dc | ||
IP Rating IP65, IP66K, IP67 | ||
Maximum Operating Temperature +80°C | ||
Minimum Bend Radius 48 mm | ||
Operating Temperature Range -25 → 80 °C | ||
American Wire Gauge 22 AWG | ||
Connector 1 Housing Gender Female | ||
Standards Met CE | ||
Minimum Operating Temperature -25°C | ||
Outer Diameter 4.8mm | ||
