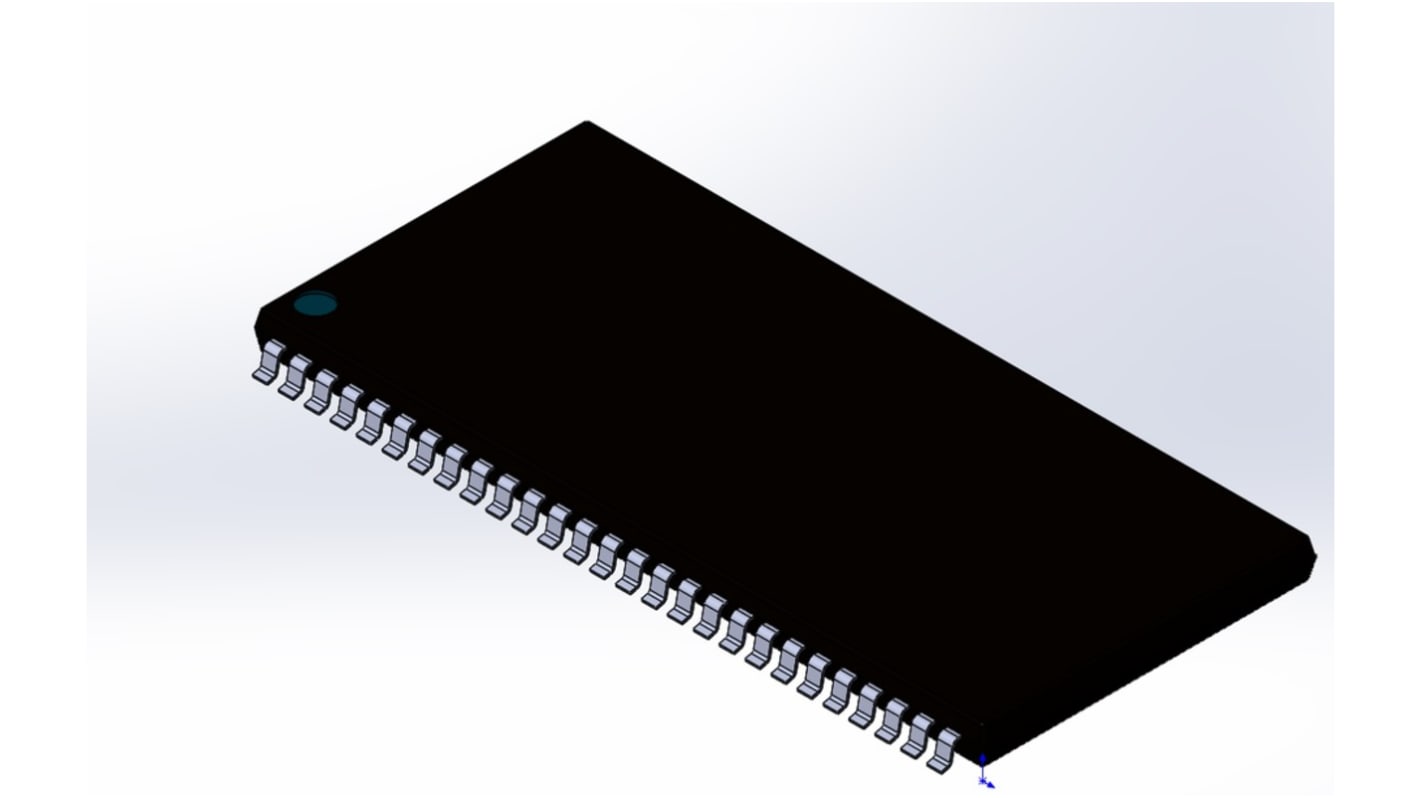

Alliance Memory AS4C4M16SA-7TCN, SDRAM 64Mbit Surface Mount, 200MHz, 3 V to 3.6 V, 54-Pin TSOP
- RS-artikelnummer:
- 230-8433
- Tillv. art.nr:
- AS4C4M16SA-7TCN
- Tillverkare / varumärke:
- Alliance Memory
Tillfälligt slut i lager – restorder för leverans 2024-07-10
Lagt till varukorgen
Pris (ex. moms) Var (i en bricka med 108)
21,264 kr
(exkl. moms)
26,58 kr
(inkl. moms)
| Enheter | Per unit | Per Tray* |
| 108 - 216 | 21,264 kr | 2 296,512 kr |
| 324 - 432 | 20,626 kr | 2 227,608 kr |
| 540 - 972 | 20,498 kr | 2 213,784 kr |
| 1080 - 1944 | 18,968 kr | 2 048,544 kr |
| 2052 + | 17,82 kr | 1 924,56 kr |
- RS-artikelnummer:
- 230-8433
- Tillv. art.nr:
- AS4C4M16SA-7TCN
- Tillverkare / varumärke:
- Alliance Memory
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
The Alliance Memory 64Mb SDRAM is a high-speed CMOS synchronous DRAM containing 64 Mbits. It is internally configured as 4 Banks of 1M word x 16 DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Read and write accesses to the SDRAM are burst oriented
accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of a Bank Activate command which is then followed by a Read or Write command.
Fast access time from clock: 4.5/5.4/5.4 ns
Fast clock rate: 200/166/143 MHz
Fully synchronous operation
Internal pipelined architecture
1M word x 16-bit x 4-bank
Fast clock rate: 200/166/143 MHz
Fully synchronous operation
Internal pipelined architecture
1M word x 16-bit x 4-bank
Specifikationer
Attribute | Value |
|---|---|
| Memory Size | 64Mbit |
| SDRAM Class | DDR |
| Organisation | 4M x 16 |
| Data Rate | 200MHz |
| Data Bus Width | 16bit |
| Address Bus Width | 12bit |
| Number of Bits per Word | 16bit |
| Maximum Random Access Time | 5.4ns |
| Number of Words | 4M |
| Mounting Type | Surface Mount |
| Package Type | TSOP |
| Pin Count | 54 |
| Dimensions | 22.35 x 10.29 x 1.2mm |
| Height | 1.2mm |
| Length | 22.35mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Temperature | 0 °C |
| Width | 10.29mm |
| Minimum Operating Supply Voltage | 3 V |
| Maximum Operating Temperature | +70 °C |
