Välj alla	Attribut	Värde
	Brand	DiodesZetex
	Mounting Type	Through Hole
	Package Type	DO-41
	Maximum Continuous Forward Current	1A
	Peak Reverse Repetitive Voltage	400V
	Diode Configuration	Single
	Series	1N4004
	Rectifier Type	General Purpose
	Diode Type	Rectifier
	Pin Count	2
	Maximum Forward Voltage Drop	1V
	Number of Elements per Chip	1
	Diode Technology	Silicon Junction
	Diameter	5.21mm
	Peak Non-Repetitive Forward Surge Current	30A

	Välj alla
	Brand DiodesZetex
	Mounting Type Through Hole
	Package Type DO-41
	Maximum Continuous Forward Current 1A
	Peak Reverse Repetitive Voltage 400V
	Diode Configuration Single
	Series 1N4004
	Rectifier Type General Purpose
	Diode Type Rectifier
	Pin Count 2
	Maximum Forward Voltage Drop 1V
	Number of Elements per Chip 1
	Diode Technology Silicon Junction
	Diameter 5.21mm
	Peak Non-Repetitive Forward Surge Current 30A

• Diffused Junction

• High Current Capability and Low Forward Voltage Drop

• Surge Overload Rating to 30A Peak

• Low Reverse Leakage Current

• Lead Free Finish, RoHS Compliant

• Case: DO-41

• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

• Polarity: Cathode Band

• Marking: Type Number

• Moisture Sensitivity: Level 1 per J-STD-020D

• Mounting Position: Any

• Terminals: Finish - Bright Tin. Plated Leads Solderable per MIL-STD-202, Method 208

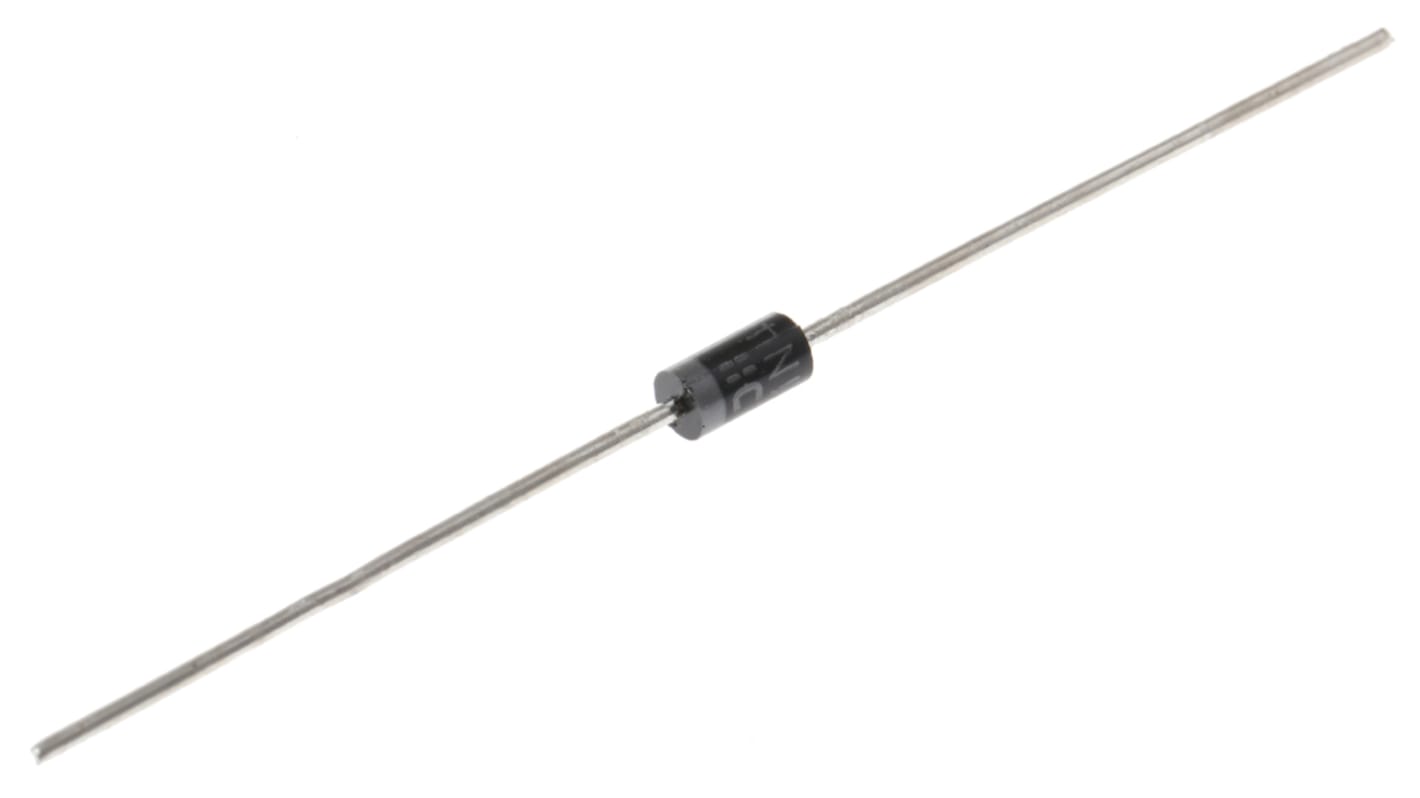

Diodes Inc 400V 1A, Rectifier Diode, 2-Pin DO-41 1N4004-T
