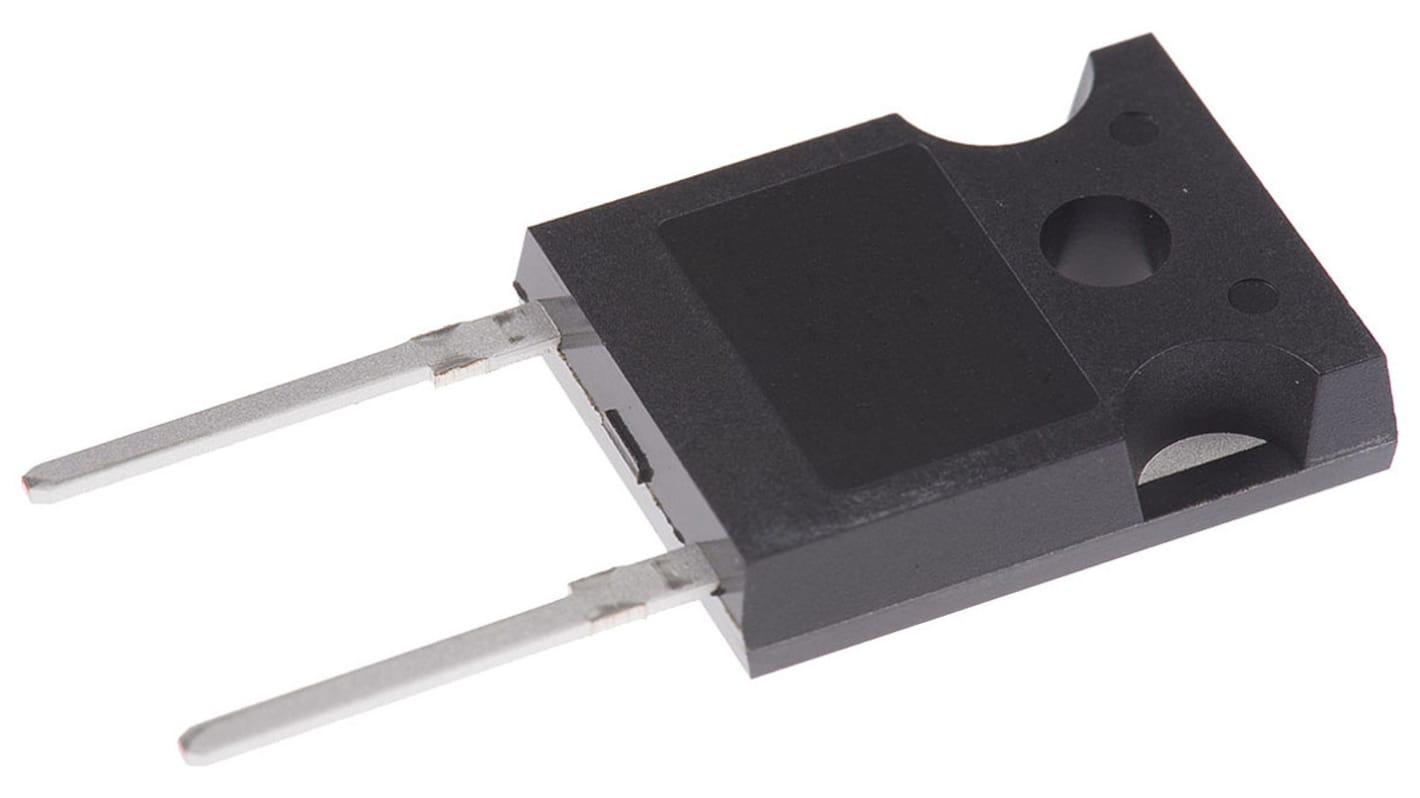

Vishay 800 V 60 A Diode Fast Recovery 2-Pin TO-247 VS-60EPS08-M3
- RS-artikelnummer:
- 730-0502
- Tillv. art.nr:
- VS-60EPS08-M3
- Tillverkare / varumärke:
- Vishay
Mängdrabatt möjlig
Antal (1 enhet)*
70,56 kr
(exkl. moms)
88,20 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 480 enhet(er) från den 02 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 70,56 kr |
| 10 - 24 | 63,62 kr |
| 25 - 49 | 59,92 kr |
| 50 - 99 | 57,90 kr |
| 100 + | 56,45 kr |
*vägledande pris
- RS-artikelnummer:
- 730-0502
- Tillv. art.nr:
- VS-60EPS08-M3
- Tillverkare / varumärke:
- Vishay
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Through Hole | |
| Product Type | Diode | |
| Package Type | TO-247 | |
| Maximum Continuous Forward Current If | 60A | |
| Peak Reverse Repetitive Voltage Vrrm | 800V | |
| Series | VS-60EPS-M3 | |
| Diode Configuration | Single | |
| Rectifier Type | Fast Recovery | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Peak Reverse Current Ir | 1mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.1kA | |
| Maximum Forward Voltage Vf | 1.09V | |
| Maximum Operating Temperature | 150°C | |
| Peak Reverse Recovery Time trr | 40ns | |
| Width | 5.31 mm | |
| Height | 20.7mm | |
| Standards/Approvals | RoHS | |
| Length | 15.87mm | |
| Diameter | 20.7 mm | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand Vishay | ||
Mount Type Through Hole | ||
Product Type Diode | ||
Package Type TO-247 | ||
Maximum Continuous Forward Current If 60A | ||
Peak Reverse Repetitive Voltage Vrrm 800V | ||
Series VS-60EPS-M3 | ||
Diode Configuration Single | ||
Rectifier Type Fast Recovery | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Peak Reverse Current Ir 1mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 1.1kA | ||
Maximum Forward Voltage Vf 1.09V | ||
Maximum Operating Temperature 150°C | ||
Peak Reverse Recovery Time trr 40ns | ||
Width 5.31 mm | ||
Height 20.7mm | ||
Standards/Approvals RoHS | ||
Length 15.87mm | ||
Diameter 20.7 mm | ||
Automotive Standard No | ||
- VS-60EPS..PbF Series, VS-60EPS..-M3 Series, High Voltage Input Rectifier Diode, 60A
- ESD Control Selection Guide V1
- Application Note- Design Guidelines for Schottky Rectifiers
- Application Note- Fundamentals of Rectifiers
- Application Note- Rectifiers for Power Factor Correction
- Application Note- Physical Explanation
- Diodes Group Body Marking
- Application Note- High Speed Data Line Protection
- Packaging Information
- Pad Layouts/Soldering Process
- Application Note- Power Factor Correction with Ultrafast Diodes
- Application Note- SUPERECTIFIER® Design Brings New Level of Reliability to Surface Mount Components
Standard Recovery Rectifiers, over 40A
Versatile and high-efficiency Standard Recovery Power Diodes in industry-standard package styles.
Diodes and Rectifiers, Vishay Semiconductor
