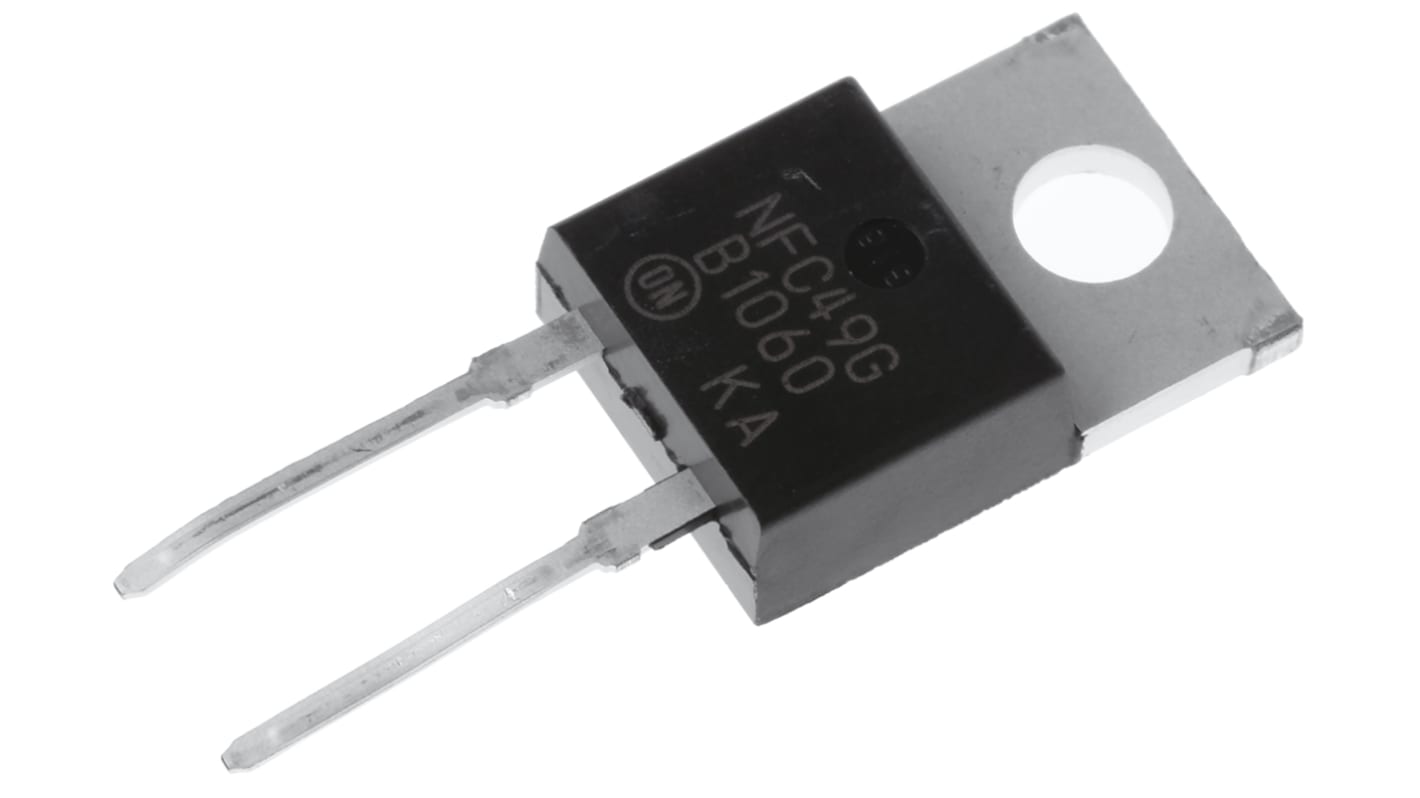

onsemi 60 V 10 A Diode Schottky 2-Pin TO-220
- RS-artikelnummer:
- 545-2844
- Tillv. art.nr:
- MBR1060G
- Tillverkare / varumärke:
- onsemi
Antal (1 förpackning med 5 enheter)*
39,54 kr
(exkl. moms)
49,425 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 290 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 5 + | 7,908 kr | 39,54 kr |
*vägledande pris
- RS-artikelnummer:
- 545-2844
- Tillv. art.nr:
- MBR1060G
- Tillverkare / varumärke:
- onsemi
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | onsemi | |
| Product Type | Diode | |
| Mount Type | Through Hole | |
| Package Type | TO-220 | |
| Maximum Continuous Forward Current If | 10A | |
| Peak Reverse Repetitive Voltage Vrrm | 60V | |
| Series | MBR1060 | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -65°C | |
| Maximum Forward Voltage Vf | 0.95V | |
| Peak Reverse Current Ir | 100μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A | |
| Maximum Operating Temperature | 175°C | |
| Length | 10.29mm | |
| Height | 9.27mm | |
| Standards/Approvals | No | |
| Width | 4.82 mm | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand onsemi | ||
Product Type Diode | ||
Mount Type Through Hole | ||
Package Type TO-220 | ||
Maximum Continuous Forward Current If 10A | ||
Peak Reverse Repetitive Voltage Vrrm 60V | ||
Series MBR1060 | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Minimum Operating Temperature -65°C | ||
Maximum Forward Voltage Vf 0.95V | ||
Peak Reverse Current Ir 100μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 150A | ||
Maximum Operating Temperature 175°C | ||
Length 10.29mm | ||
Height 9.27mm | ||
Standards/Approvals No | ||
Width 4.82 mm | ||
Automotive Standard No | ||
RoHS-status: Undantagen
Schottky Barrier Diodes, 10A to 25A, ON Semiconductor
Standards
Products with NSV- or SBR-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.
