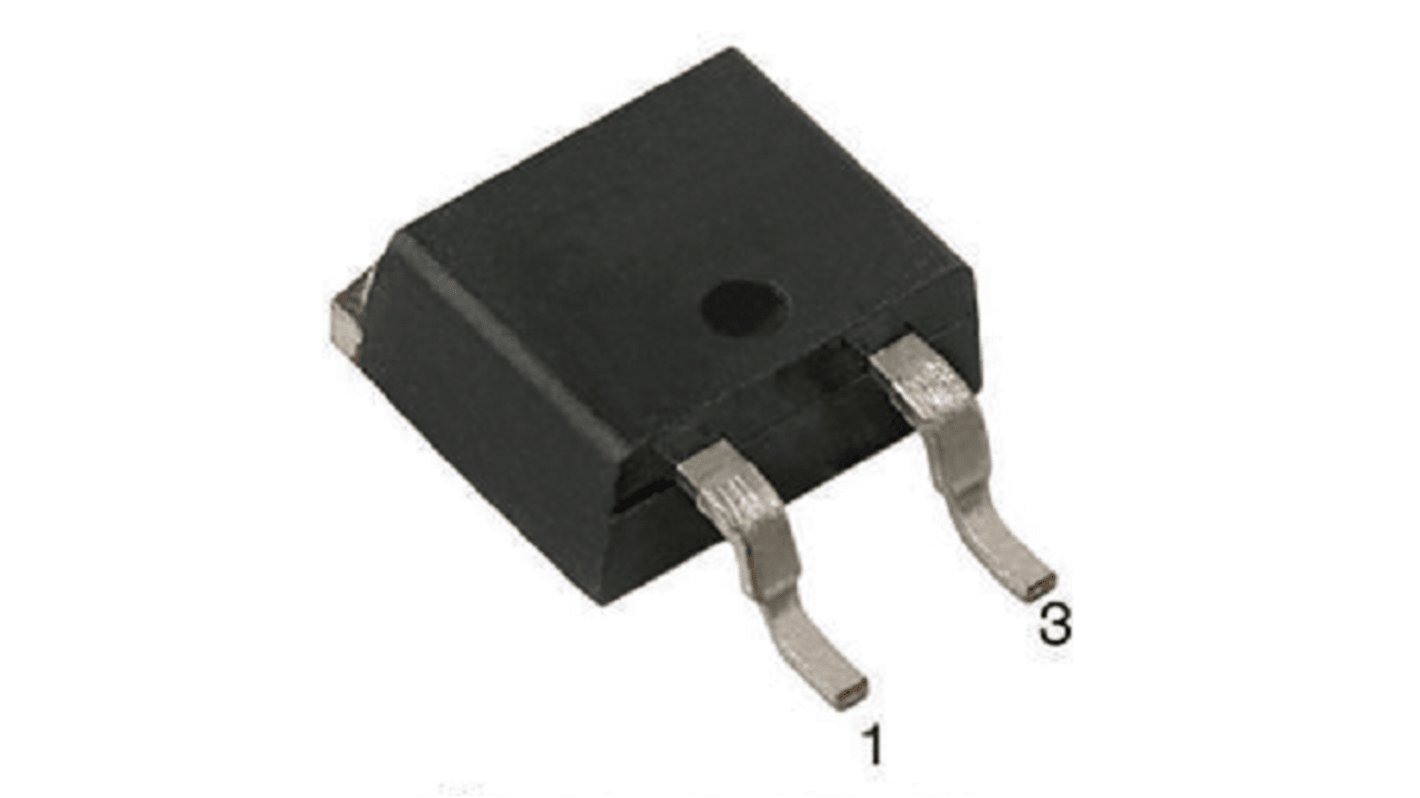

Vishay 1200 V 30 A Rectifier & Schottky Diode General Purpose D2PAK VS-E5TX3012S2LHM3

Se kategorien
Mängdrabatt möjlig

Antal (1 förpackning med 2 enheter)*

79,18 kr

(exkl. moms)

98,98 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 750 enhet(er), redo att levereras
Enheter
Per enhet
Per förpackning*
2 - 1839,59 kr79,18 kr
20 - 9835,615 kr71,23 kr
100 - 19833,60 kr67,20 kr
200 - 49832,535 kr65,07 kr
500 +31,64 kr63,28 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
243-7137
Tillv. art.nr:
VS-E5TX3012S2LHM3
Tillverkare / varumärke:
Vishay
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Vishay

Product Type

Rectifier & Schottky Diode

Mount Type

Surface

Package Type

TO-263

Maximum Continuous Forward Current If

30A

Peak Reverse Repetitive Voltage Vrrm

1200V

Diode Configuration

Single

Series

FRED Pt

Rectifier Type

General Purpose

Peak Non-Repetitive Forward Surge Current Ifsm

110A

Maximum Forward Voltage Vf

2.1V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Standards/Approvals

RoHS

Automotive Standard

AEC-Q101

The Vishay Hyperfast rectifier featuring a unique combination of low conduction and switching losses, this rectifier is the right choice for high frequency converters, both soft switched / resonant. Specifically designed to improve efficiency of PFC and output rectification stages of EV / HEV battery charging stations, booster stage of solar inverters and UPS applications, these devices are perfectly matched to operate with MOSFETs or high speed IGBTs.

Hyperfast and optimized Qrr

Best in class forward voltage drop and switching losses trade off

Optimized for high speed operation

175 °C maximum operating junction temperature

Polyimide passivation

Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C

AEC-Q101 qualified meets JESD 201 class 2 whisker test
