Taiwan Semiconductor 100 V 30 A Rectifier & Schottky Diode TO-220AB
- RS-artikelnummer:
- 241-9342
- Tillv. art.nr:
- TST30L100CW
- Tillverkare / varumärke:
- Taiwan Semiconductor
Mängdrabatt möjlig
Antal (1 rör med 50 enheter)*
589,35 kr
(exkl. moms)
736,70 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Sista RS lager
- Slutlig(a) 3 950 enhet(er), redo att levereras
Enheter | Per enhet | Per Rør* |
|---|---|---|
| 50 - 50 | 11,787 kr | 589,35 kr |
| 100 - 450 | 9,464 kr | 473,20 kr |
| 500 - 950 | 8,075 kr | 403,75 kr |
| 1000 - 1950 | 7,862 kr | 393,10 kr |
| 2000 + | 7,661 kr | 383,05 kr |
*vägledande pris
- RS-artikelnummer:
- 241-9342
- Tillv. art.nr:
- TST30L100CW
- Tillverkare / varumärke:
- Taiwan Semiconductor
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Taiwan Semiconductor | |
| Mount Type | Through Hole | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | TO-220AB | |
| Maximum Continuous Forward Current If | 30A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Diode Configuration | Dual Dies | |
| Series | TST30L100CW _C2104 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 200μA | |
| Maximum Forward Voltage Vf | 0.98V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand Taiwan Semiconductor | ||
Mount Type Through Hole | ||
Product Type Rectifier & Schottky Diode | ||
Package Type TO-220AB | ||
Maximum Continuous Forward Current If 30A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Diode Configuration Dual Dies | ||
Series TST30L100CW _C2104 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 100A | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 200μA | ||
Maximum Forward Voltage Vf 0.98V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||

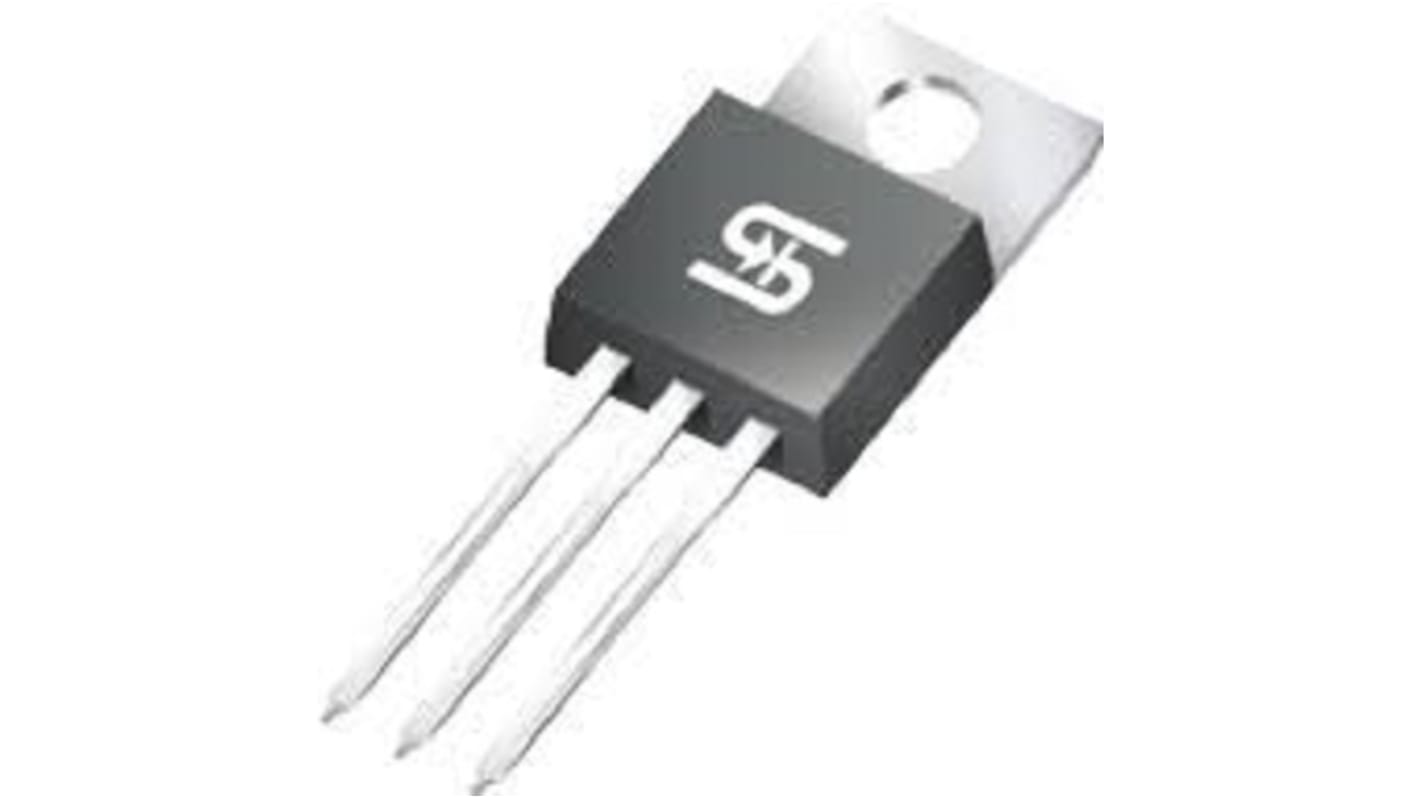

The Taiwan semiconductor Trench Schottky Rectifier has packaging TO-220AB and dual configuration. The semiconductor has applications such as Switching mode power supply (SMPS), Adapters and DC to DC converters.
Patented Trench Schottky technology
Excellent high temperature stability
Low forward voltage
Low power loss/ high efficiency
High forward surge capability
Compliant RoHS
Halogen-free according to IEC 61249-2-21
