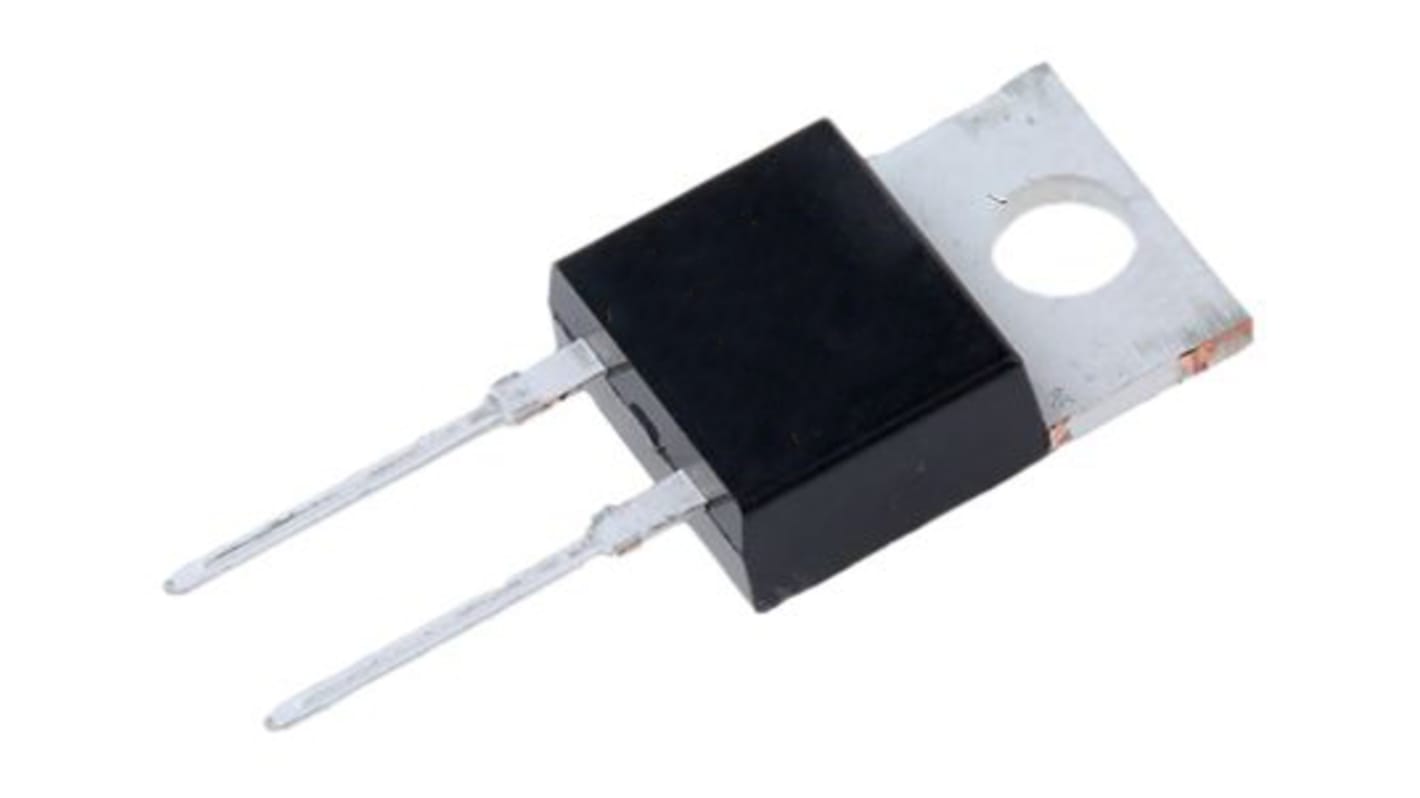

onsemi 100 V 8 A Diode Fast Recovery 2-Pin TO-220 MUR810G

Se kategorien

Antal (1 förpackning med 10 enheter)*

93,18 kr

(exkl. moms)

116,48 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 290 enhet(er) från den 02 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
10 +9,318 kr93,18 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
186-7739
Tillv. art.nr:
MUR810G
Tillverkare / varumärke:
onsemi
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

onsemi

Product Type

Diode

Mount Type

Through Hole

Package Type

TO-220

Maximum Continuous Forward Current If

8A

Peak Reverse Repetitive Voltage Vrrm

100V

Diode Configuration

Single

Rectifier Type

Fast Recovery

Pin Count

2

Maximum Forward Voltage Vf

0.97V

Peak Non-Repetitive Forward Surge Current Ifsm

100A

Minimum Operating Temperature

-65°C

Peak Reverse Current Ir

250μA

Peak Reverse Recovery Time trr

35ns

Maximum Operating Temperature

175°C

Length

10.29mm

Width

4.82 mm

Height

15.75mm

Standards/Approvals

No

Automotive Standard

AEC-Q101

The Ultrafast Rectifier is designed for use in switching power supplies, inverters and as free wheeling diodes.

Ultrafast 25, 50 and 75 Nanosecond Recovery Time

175 C Operating Junction Temperature

@ 1/8"

Low Forward Voltage

Low Leakage Current

Reverse Voltage to 600 Volts

Mechanical Characteristics:

Case: Epoxy, Molded

Weight: 1.9 grams (approximately)

Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

Lead Temperature for Soldering Purposes: 260 C Max. for 10 Seconds

PPAP capable

SUR8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

End Products

ATX Power Supply

Flat Panel Display

Server

Note Book Adapte

Applications

SMPS: DCM CRM PFC
