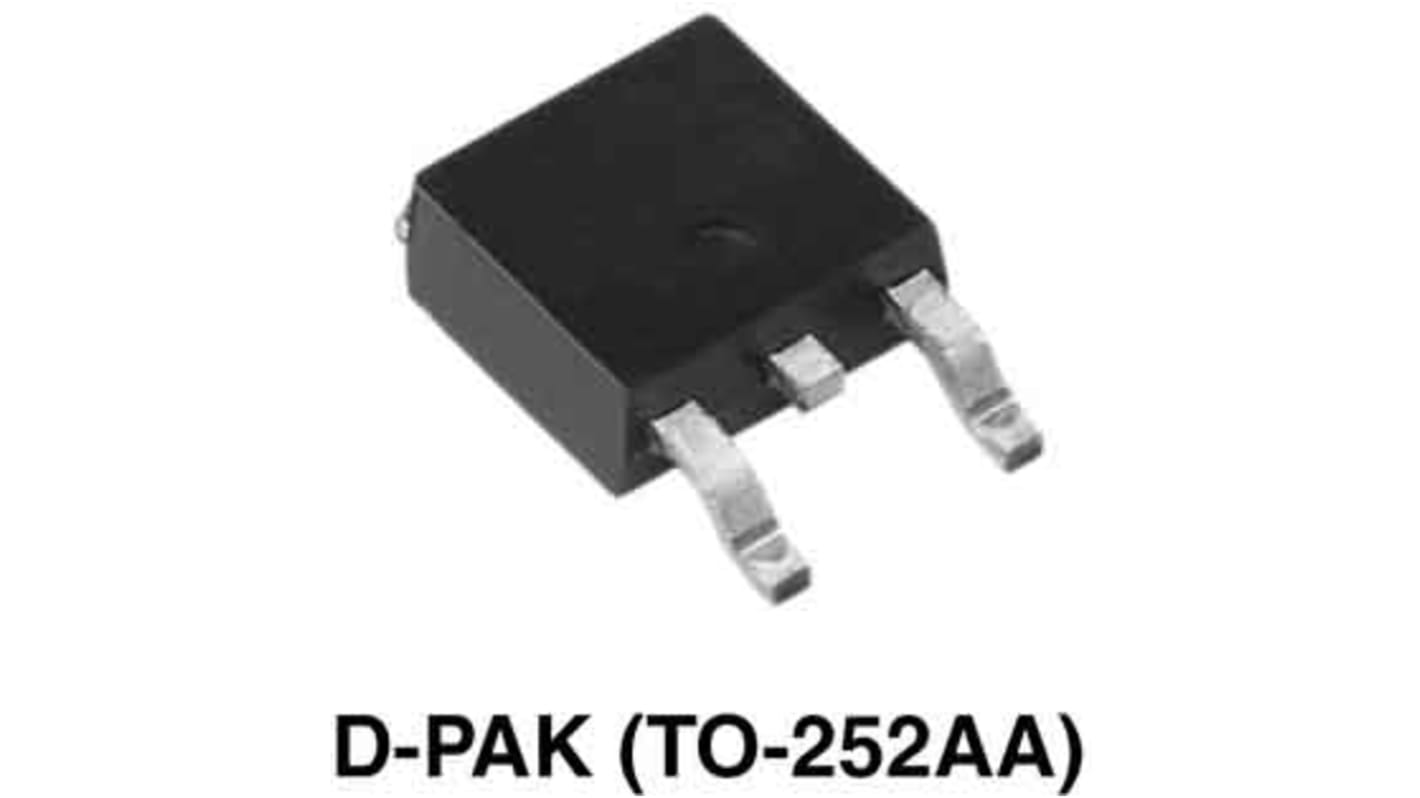

Vishay 60 V 3.5 A Diode Schottky 4-Pin DPAK
- RS-artikelnummer:
- 180-7320
- Tillv. art.nr:
- VS-30WQ06FNHM3
- Tillverkare / varumärke:
- Vishay
Mängdrabatt möjlig
Antal (1 förpackning med 10 enheter)*
94,98 kr
(exkl. moms)
118,72 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- 3 000 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 10 - 90 | 9,498 kr | 94,98 kr |
| 100 - 240 | 9,033 kr | 90,33 kr |
| 250 - 490 | 8,073 kr | 80,73 kr |
| 500 - 990 | 6,649 kr | 66,49 kr |
| 1000 + | 6,174 kr | 61,74 kr |
*vägledande pris
- RS-artikelnummer:
- 180-7320
- Tillv. art.nr:
- VS-30WQ06FNHM3
- Tillverkare / varumärke:
- Vishay
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Vishay | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | TO-252 | |
| Maximum Continuous Forward Current If | 3.5A | |
| Peak Reverse Repetitive Voltage Vrrm | 60V | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 4 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 490A | |
| Peak Reverse Current Ir | 30mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Forward Voltage Vf | 650mV | |
| Maximum Operating Temperature | 150°C | |
| Height | 2.38mm | |
| Length | 6.73mm | |
| Width | 6.22 mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Välj alla | ||
|---|---|---|
Brand Vishay | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type TO-252 | ||
Maximum Continuous Forward Current If 3.5A | ||
Peak Reverse Repetitive Voltage Vrrm 60V | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 4 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 490A | ||
Peak Reverse Current Ir 30mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Forward Voltage Vf 650mV | ||
Maximum Operating Temperature 150°C | ||
Height 2.38mm | ||
Length 6.73mm | ||
Width 6.22 mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
The VS-30WQ06FNHM3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC board. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection.
Low forward voltage drop
Guard ring for enhanced ruggedness and long term reliability
Popular D-PAK outline
