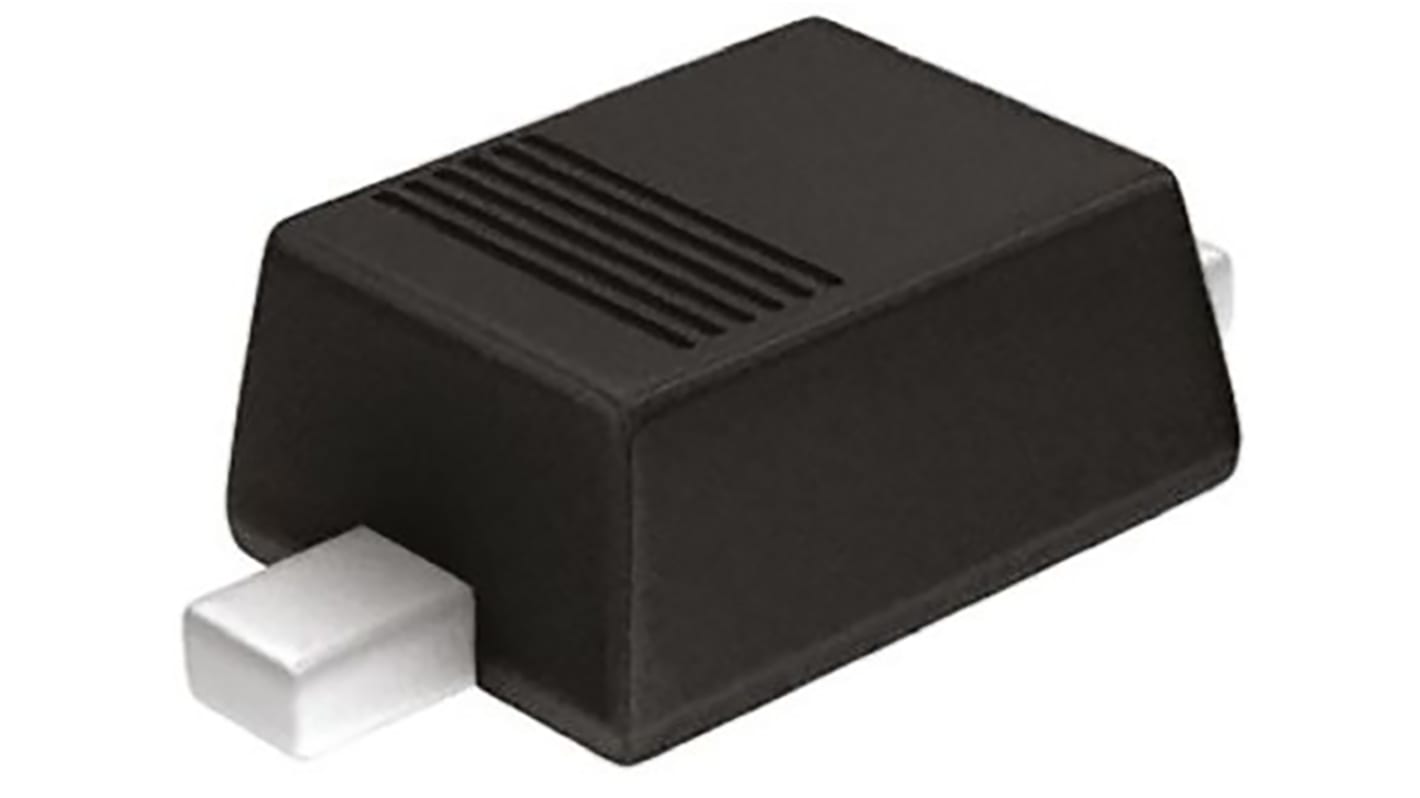

DiodesZetex 100 V 250 mA Diode Switching 2-Pin SOD-323
- RS-artikelnummer:
- 168-9593
- Tillv. art.nr:
- 1N4148WSF-7
- Tillverkare / varumärke:
- DiodesZetex
Antal (1 rulle med 3000 enheter)*
882,00 kr
(exkl. moms)
1 104,00 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Lagerinformation är för närvarande otillgänglig
Enheter | Per enhet | Per rulle* |
|---|---|---|
| 3000 + | 0,294 kr | 882,00 kr |
*vägledande pris
- RS-artikelnummer:
- 168-9593
- Tillv. art.nr:
- 1N4148WSF-7
- Tillverkare / varumärke:
- DiodesZetex
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | SOD-323 | |
| Maximum Continuous Forward Current If | 250mA | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Series | 1N4148WSF | |
| Diode Configuration | Single | |
| Rectifier Type | Switching | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A | |
| Peak Reverse Current Ir | 50μA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 1.25V | |
| Maximum Operating Temperature | 150°C | |
| Peak Reverse Recovery Time trr | 4ns | |
| Width | 1.35 mm | |
| Standards/Approvals | No | |
| Height | 0.75mm | |
| Length | 1.8mm | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type SOD-323 | ||
Maximum Continuous Forward Current If 250mA | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Series 1N4148WSF | ||
Diode Configuration Single | ||
Rectifier Type Switching | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 4A | ||
Peak Reverse Current Ir 50μA | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 1.25V | ||
Maximum Operating Temperature 150°C | ||
Peak Reverse Recovery Time trr 4ns | ||
Width 1.35 mm | ||
Standards/Approvals No | ||
Height 0.75mm | ||
Length 1.8mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Small Signal Switching Diodes, Diodes Inc
Diodes and Rectifiers, Diodes Inc
