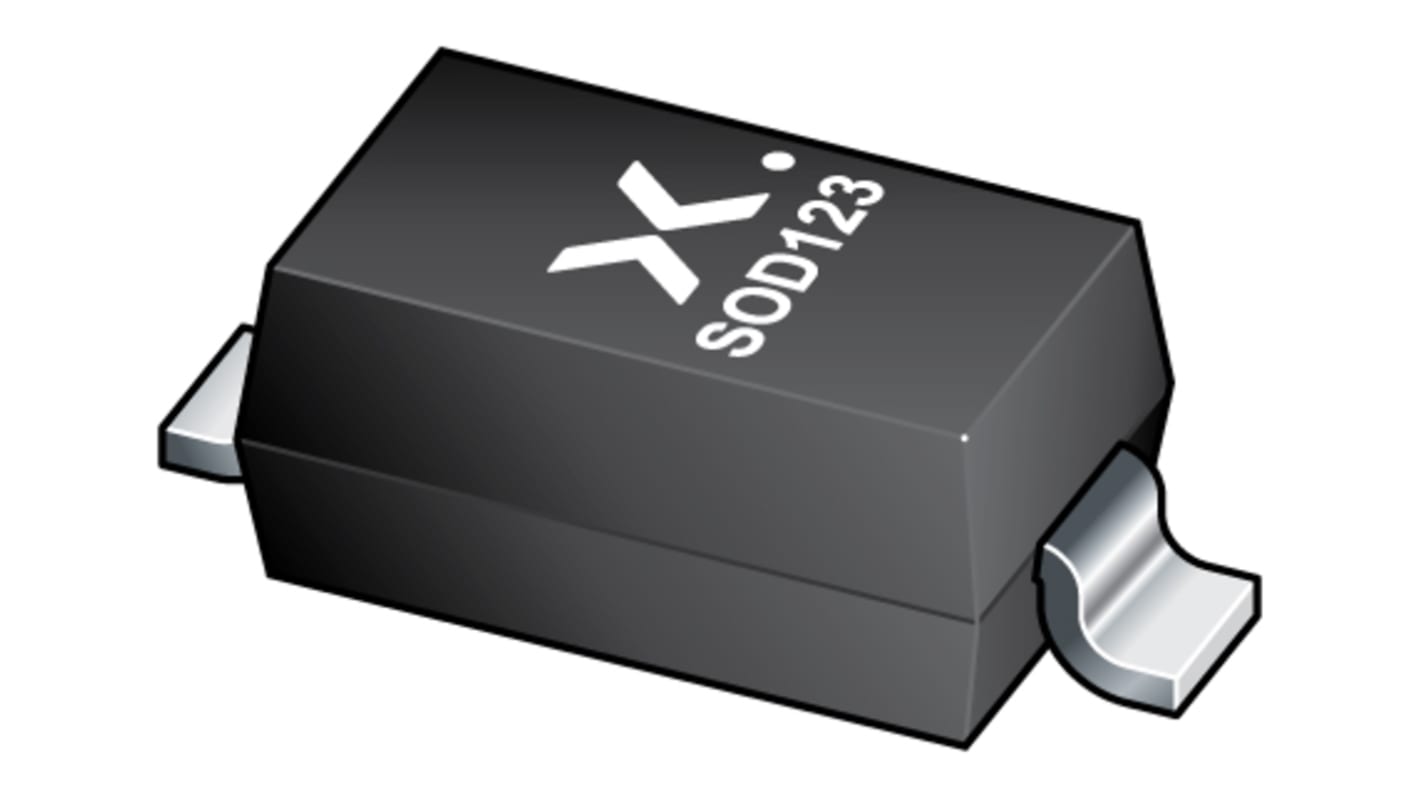

Nexperia 20 V 500 mA Diode Schottky 2-Pin SOD-123 PMEG2005EGWX
- RS-artikelnummer:
- 152-7768
- Tillv. art.nr:
- PMEG2005EGWX
- Tillverkare / varumärke:
- Nexperia
Mängdrabatt möjlig
Antal (1 förpackning med 100 enheter)*
104,30 kr
(exkl. moms)
130,40 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 34 500 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 100 - 200 | 1,043 kr | 104,30 kr |
| 300 - 500 | 0,783 kr | 78,30 kr |
| 600 - 1100 | 0,624 kr | 62,40 kr |
| 1200 - 2400 | 0,568 kr | 56,80 kr |
| 2500 + | 0,523 kr | 52,30 kr |
*vägledande pris
- RS-artikelnummer:
- 152-7768
- Tillv. art.nr:
- PMEG2005EGWX
- Tillverkare / varumärke:
- Nexperia
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Nexperia | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | SOD-123 | |
| Maximum Continuous Forward Current If | 500mA | |
| Peak Reverse Repetitive Voltage Vrrm | 20V | |
| Diode Configuration | Single | |
| Series | PMEG2005EGW | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 10A | |
| Maximum Forward Voltage Vf | 390mV | |
| Peak Reverse Current Ir | 200μA | |
| Maximum Operating Temperature | 150°C | |
| Width | 1.7 mm | |
| Height | 1.3mm | |
| Length | 2.8mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Välj alla | ||
|---|---|---|
Brand Nexperia | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type SOD-123 | ||
Maximum Continuous Forward Current If 500mA | ||
Peak Reverse Repetitive Voltage Vrrm 20V | ||
Diode Configuration Single | ||
Series PMEG2005EGW | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 10A | ||
Maximum Forward Voltage Vf 390mV | ||
Peak Reverse Current Ir 200μA | ||
Maximum Operating Temperature 150°C | ||
Width 1.7 mm | ||
Height 1.3mm | ||
Length 2.8mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
20 V, 0.5 A low VF MEGA Schottky barrier rectifier, Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection encapsulated in small SOD123 Surface-Mounted Device (SMD) plastic package.
Forward current: IF ≤ 0.5 A
Reverse voltage: VR ≤ 20 V
Low forward voltage typ. VF = 355 mV
Low reverse current typ. IR = 40 μA
Small SMD plastic package
AEC-Q101 qualified
Low voltage rectification
High efficiency DC-to-DC conversion
Switch mode power supply
Reverse polarity protection
Low power consumption applications
Automotive applications
