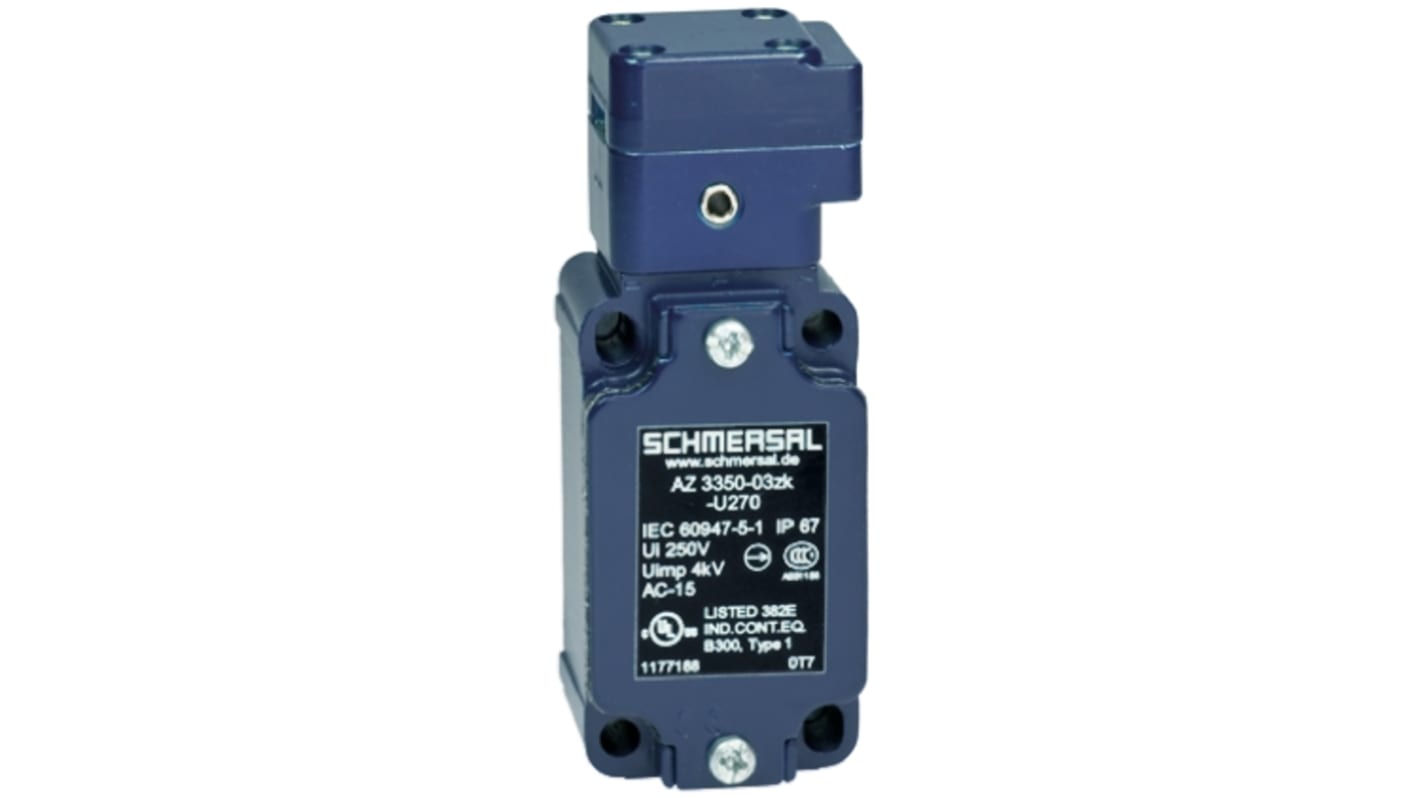

Schmersal AZ3350 Safety Interlock Switch, 2NC/1NO, Keyed Actuator Included, Aluminium

This robust, metal bodied safety switch is designed for use on machine guards which have to be closed for operational safety
The special tongue actuator is designed to prevent accidental or deliberate operation by simple means such as screwdrivers, bent wires, etc
Actuating head can be fitted in 4 positions (90° steps)
Can be mounted on a flat surface
Positive break is achieved with guard movement
Includes a latching handle
Has a long operation life time
High level of contact reliability with low voltages and currents
1 Cable entry M 20 x 1.5
40.5 mm x 114 mm x 38 mm

Actuator sold separately.

EN ISO 13849-1

BG, USA/CAN, CCC

Prevent guards or gates from opening when hazardous operations are underway with this safety interlock switch from Schmersal. It unlocks only when the internal solenoid is opened and all machinery has stopped operating to enhance safety in industrial environments. The switch has an aluminium housing for resistance to impact and corrosion for use in harsh conditions. The contacts are made of silver for high levels of conductivity and resistance to corrosion, ensuring a reliable and long-lasting connection.

• Broad operating temperature range of -30°C to +90°C for use in a variety of demanding environments
• IP67 (ingress protection) rating indicates the connector is dust-tight and protected against immersion in up to 1m of water for 30 minutes
• Secure screw connection holds the unit in place even in the event of heavy shocks and vibration
• Compact dimensions of 114 (length) x 40.5 (width) x 38mm (depth) for installation in areas where space is limited

• Cutting machines
• Pressurised chambers
• Packaging robots
• Car assembly

This switch is manually controlled using a key actuator that locks the switch to prevent accidental activation for increased safety.

Interlock Switch
