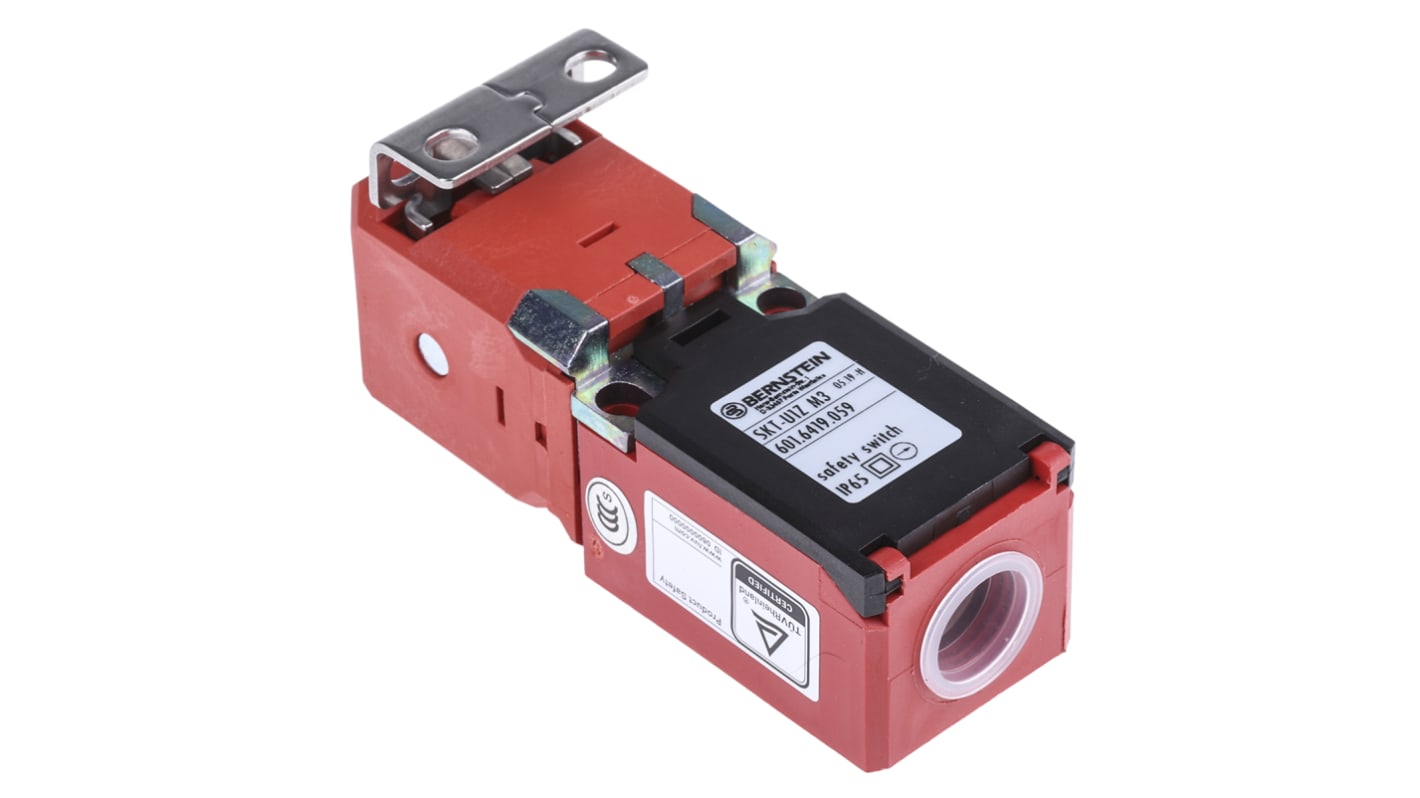

Bernstein AG SKT Safety Interlock Switch, 1NC/1NO, Keyed Actuator Included, Glass Fibre Reinforced Thermoplastic
- RS-artikelnummer:
- 410-7212
- Tillv. art.nr:
- SKT-U1Z M3
- Tillverkare / varumärke:
- Bernstein AG
21 I lager för avsändande samma dag
7 Inom 1 arbetsdag(ar) (UK lager)
Pris (ex. moms) Varje
425,10 kr
(exkl. moms)
531,38 kr
(inkl. moms)
Enheter | Per enhet |
|---|---|
| 1 + | 425,10 kr |
- RS-artikelnummer:
- 410-7212
- Tillv. art.nr:
- SKT-U1Z M3
- Tillverkare / varumärke:
- Bernstein AG
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
SKI/SKT Safety Switch
Insulation encapsulated
Fastening dimension according to EN 50047
Actuation in 8 directions, horizontal and vertical
Actuator 3-way coded
Positive break NCC, electrically isolated
Protection rating IP65
Fastening dimension according to EN 50047
Actuation in 8 directions, horizontal and vertical
Actuator 3-way coded
Positive break NCC, electrically isolated
Protection rating IP65
SKI
Dimensions: 100 x 31 x 30.5 mm
3 output contacts max.
3 output contacts max.
SKT
Dimensions: 83 x 30 x 27 mm
2 output contacts max.
2 output contacts max.
Approvals
UL, CSA and BG-approved
Interlock Switch
Specifikationer
Attribute | Value |
|---|---|
| Lock Style | Keyed |
| Normal State Configuration | 1NC/1NO |
| Actuator Included | Yes |
| Safety Contacts | NO/NC |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Connection Type | M16 |
| Housing Material | Glass Fibre Reinforced Thermoplastic |
| IP Rating | IP65 |
| Number of Head Directions | 4 |
| Series | SKT |
| Length | 94.25mm |
| Width | 30mm |
| Minimum Operating Temperature | -30°C |
| Depth | 27mm |
| Maximum Operating Temperature | +80°C |
| Maximum Current | 3A |
