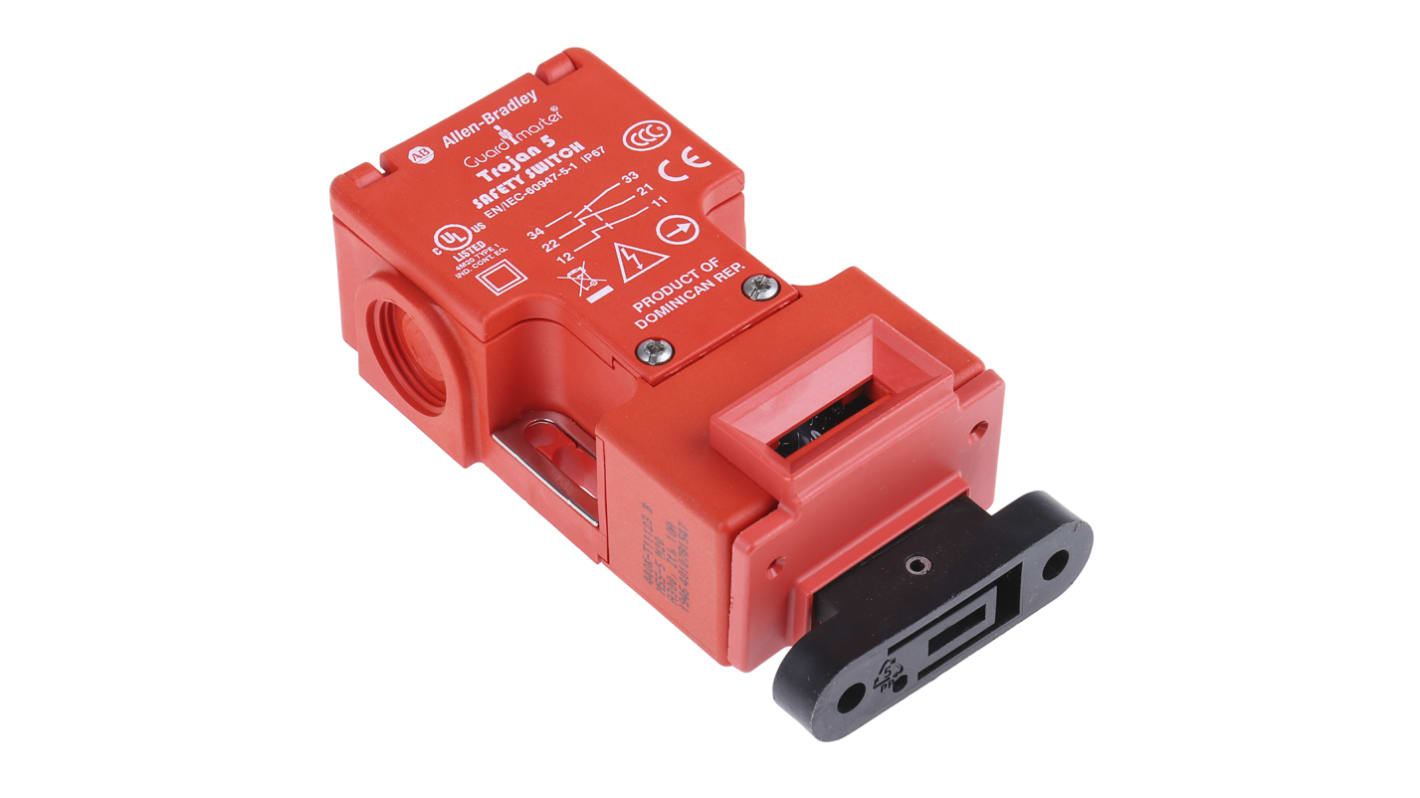

Allen Bradley Guardmaster 440K Safety Interlock Switch, 2NC/1NO, Keyed Actuator Included, Glass Filled PBT
- RS-artikelnummer:
- 251-2022
- Tillv. art.nr:
- 440K-T11123
- Tillverkare / varumärke:
- Allen Bradley Guardmaster
5 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
931,21 kr
(exkl. moms)
1 164,01 kr
(inkl. moms)
Enheter | Per unit |
1 + | 931,21 kr |
- RS-artikelnummer:
- 251-2022
- Tillv. art.nr:
- 440K-T11123
- Tillverkare / varumärke:
- Allen Bradley Guardmaster
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- DO
Produktdetaljer
Allen Bradley Guardmaster - Trojan 5 Safety Interlock Switches
Give your machine guard door a safety upgrade with the Trojan™ 5 Safety Switches by Allen Bradley Guardmaster.
The Trojan 5 switches are universal tongue (or key) operated interlock switches which prevent access to hazardous areas where machinery may be in motion. They have dual key entry slots and rotatable heads, which can be moved by releasing the cover screws, and offer four actuator entry options. They are designed to fit the leading edge of sliding, hinged or lift-off guards. They are easy to install and are operated by inserting a specially-profiled stainless steel key that is permanently attached to the leading edge of the guard door. The actuator is tamper resistant and will only operate when mounted to the guard, ensuring optimal security and stability.
These switches have 3 sets of contacts: 1 NO (Normally Open) / 2 NC (Normally Closed). They are sealed to IP67, making them suitable for use in wet environments where machinery is regularly washed down. They are also fully protected against ingress of dust. All switches come with an actuator.
Cat. 1 device per EN 954-1 dual channel interlocks suitable for Cat. 3 or 4 systems.
Forced guided contacts - complies with EN 1088, IEC 947-5-1
CE Marked for all applicable directives, cULus, TÜV, and CCC
CE Marked for all applicable directives, cULus, TÜV, and CCC
Standards
EN 954-1, ISO 13849-1, IEC/EN 60204-1, NFPA 79, EN 1088, ISO 14119, IEC/EN 60947-5-1, ANSI B11.19, AS 4024.1.
440K-T11123 Safety Interlock Switch
The 440K-T11123 standard model Trojan 5 switch has 2NC/1NO contact configuration. It has make-before-break action and a semi-flexible key. Conduit entry is M20. It has a voltage rating of 240VAC and 24VDC. The housing material is made of durable UL approved glass-filled PBT and is red for improved visibility.
Features and Benefits:
Easy to install
3 sets of contacts
Semi-Flexible actuator is highly suitable for use on smaller radii doors
Tamper resistant due to self-ejecting actuator which only operates when fixed to the guard
Forced guided contacts
3 sets of contacts
Semi-Flexible actuator is highly suitable for use on smaller radii doors
Tamper resistant due to self-ejecting actuator which only operates when fixed to the guard
Forced guided contacts
Certifications:
EN 954-1
ISO 13849-1
IEC/EN 60204-1
NFPA 79
EN 1088
ISO 14119
IEC/EN 60947-5-1
ANSI B11.19
AS 4024.1
cULus listed
TÜV certified
CCC certified
IP67 rated (Enclosure)
ISO 13849-1
IEC/EN 60204-1
NFPA 79
EN 1088
ISO 14119
IEC/EN 60947-5-1
ANSI B11.19
AS 4024.1
cULus listed
TÜV certified
CCC certified
IP67 rated (Enclosure)
Note: This product can be used with GuardLink, a new linking technology from Allen Bradley Guardmaster. GuardLink simplifies and reduces the connection time of the safety system while providing real-time diagnostic information over Ethernet IP. This simplifies the identification of the location of the component that has tripped the system. Thus, it reduces downtime and improves the overall efficiency of the machines. For more details, please refer to the GuardLink brochure.
Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.
Interlock Switch
Specifikationer
Attribute | Value |
---|---|
Lock Style | Keyed |
Normal State Configuration | 2NC/1NO |
Lock Type | Interlock |
Actuator Included | Yes |
Safety Contacts | 2NC |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 24V |
Connection Type | M20 |
Housing Material | Glass Filled PBT |
Range | Trojan 5 |
IP Rating | IP67 |
Number of Head Directions | 4 |
Series | 440K |
Length | 95mm |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -20°C |
Depth | 52mm |
Auxiliary Contacts | 1NO |
Width | 32mm |
Maximum Current | 6A |
