- RS-artikelnummer:
- 211-1499
- Tillv. art.nr:
- AZ 17-11ZI-B5
- Tillverkare / varumärke:
- Schmersal
3 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
850,15 kr
(exkl. moms)
1 062,69 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 850,15 kr |
10 - 14 | 815,58 kr |
15 + | 780,24 kr |
- RS-artikelnummer:
- 211-1499
- Tillv. art.nr:
- AZ 17-11ZI-B5
- Tillverkare / varumärke:
- Schmersal
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- DE
Produktdetaljer

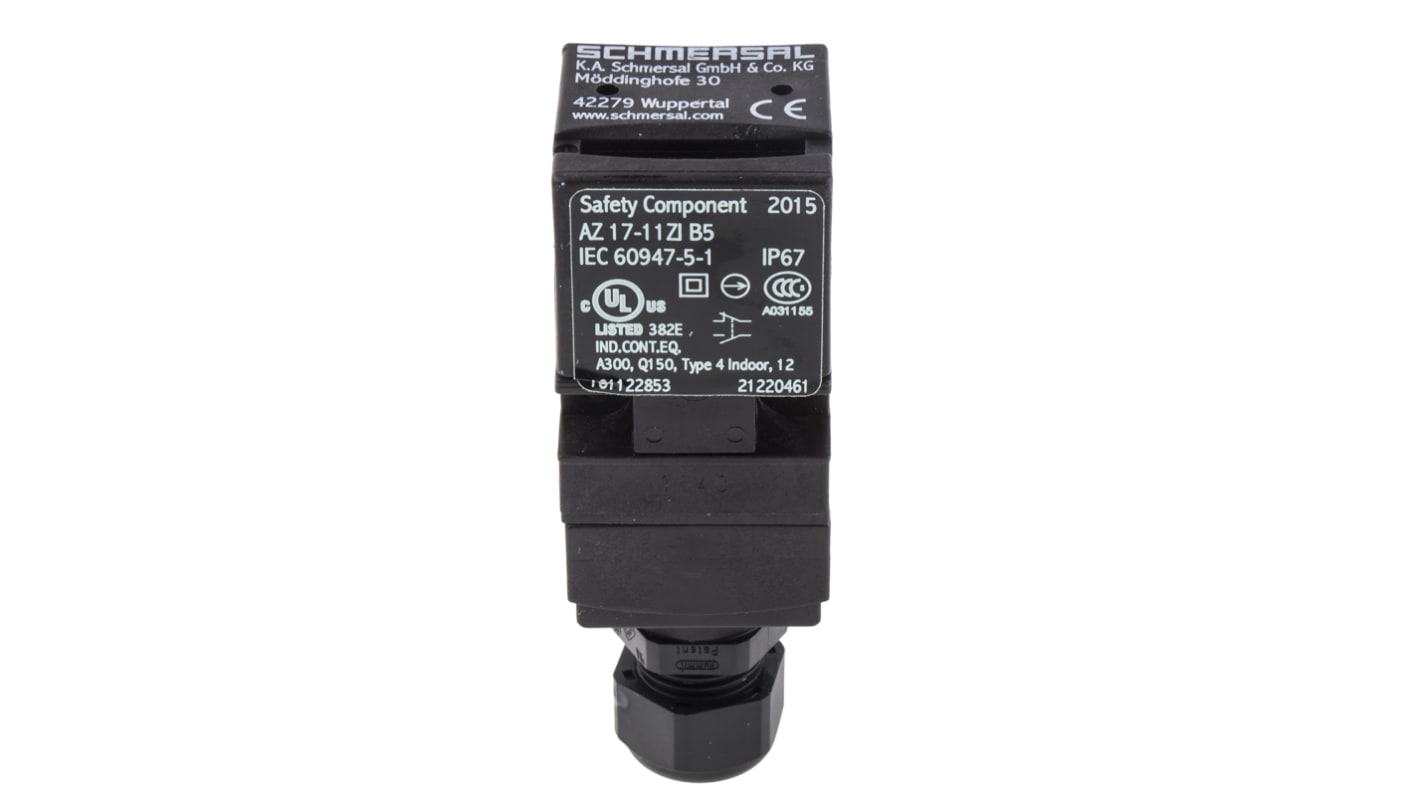

Schmersal Safety Interlock Switch, 30mm Length, 5N Latching Force - AZ17 Series - AZ 17-11ZI-B5
Choose this safety interlock switch from Schmersal to prevent accidents in industrial environments. If it detects a guard door is open, it trips the machine to restrict access to it. For added security, it comes with an individually coded actuator key to prevent tampering. Thanks to its fast actuating speed of 2m per second, it's highly sensitive for a quick reaction time. To ensure workplace safety, the glass fibre-reinforced thermoplastic material is self-extinguishing, so it won't promote the spread of flames in the event of a fire.
Features & Benefits
IP67 (ingress protection) rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes
Wide operating temperature range of -30°C to +80°C for use in demanding environments
Compact dimensions of 30 (length) x 30 (width) x 85mm (height) for installation in areas where space is limited
Wide operating temperature range of -30°C to +80°C for use in demanding environments
Compact dimensions of 30 (length) x 30 (width) x 85mm (height) for installation in areas where space is limited
Applications
Elevators
Chemical plants
Automated security systems
Chemical plants
Automated security systems
How long does this switch last?
It has a minimum mechanical lifespan of 1,000,000 cycles, which means you can use this switch for a long time without replacing it.
Interlock Switch
Specifikationer
Attribute | Value |
---|---|
Lock Style | Keyed |
Normal State Configuration | 1NC/1NO |
Safety Contacts | NC |
Maximum AC Voltage | 230V |
Maximum DC Voltage | 24V |
Connection Type | M16 |
Housing Material | Glass Fibre Reinforced Thermoplastic |
IP Rating | IP67 |
Number of Head Directions | 4 |
Dimensions | 30 x 30 x 85mm |
Series | AZ17 |
Maximum Current | 4A |
Length | 30mm |
Depth | 85mm |
Maximum Operating Temperature | +80°C |
Width | 30mm |
Minimum Operating Temperature | -30°C |
Standards Met | UL Listed |
Auxiliary Contacts | 1NO |
