Idec HS6B Safety Interlock Switch, 3NC
- RS-artikelnummer:
- 179-4748
- Tillv. art.nr:
- HS6B-03B05
- Tillverkare / varumärke:
- Idec
18 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
1 035,82 kr
(exkl. moms)
1 294,78 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 24 | 1 035,82 kr |
| 25 - 49 | 963,28 kr |
| 50 + | 911,49 kr |
- RS-artikelnummer:
- 179-4748
- Tillv. art.nr:
- HS6B-03B05
- Tillverkare / varumärke:
- Idec
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer
Idec Switch

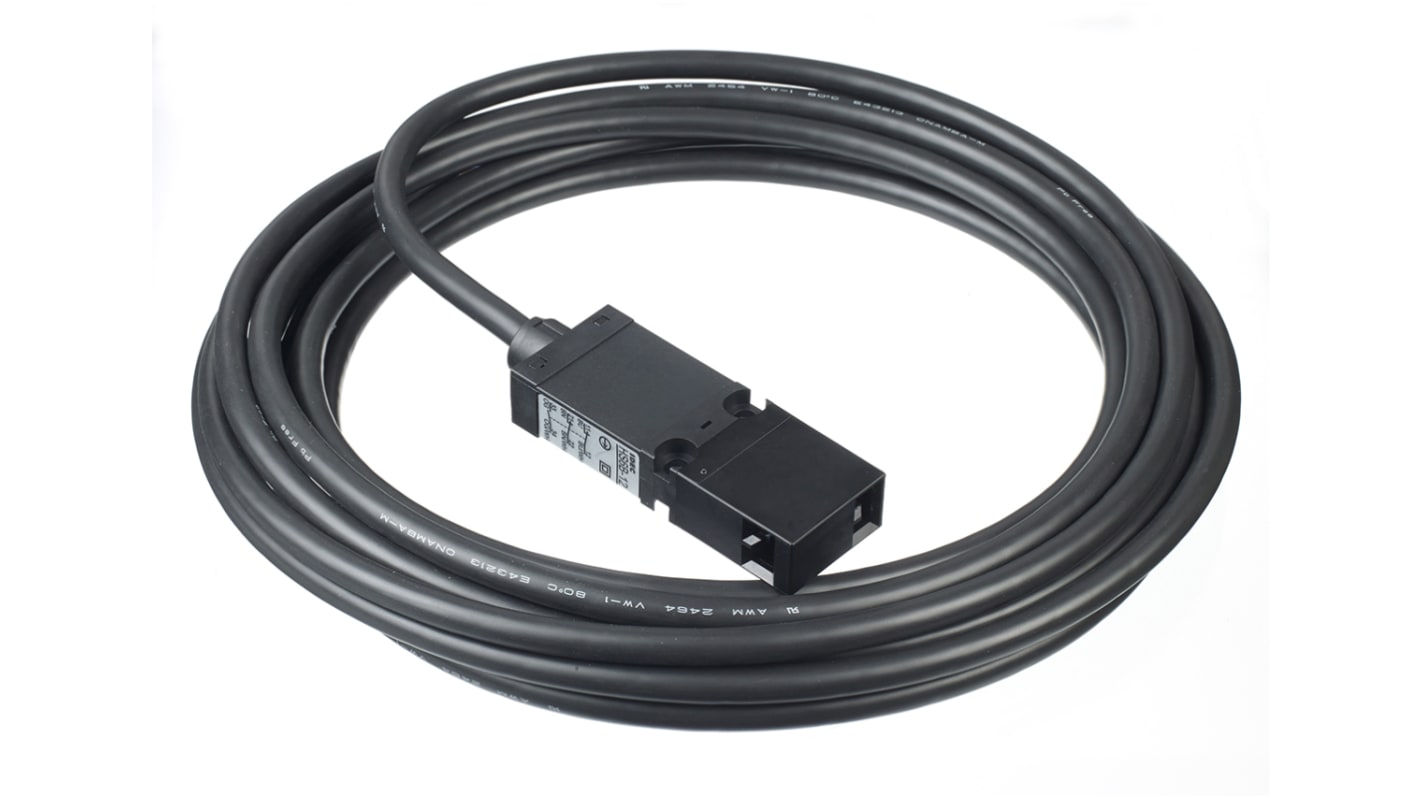

The Idec HS6B series subminiature interlock switch is compact with three poles of contacts. This interlock switch is available in 5m cable length.
Features and Benefits
• 3NC safety contacts
• Cable connection type
• Can be mounted in two directions
• Easy to install
• Highest safety is achieved by dual contacts and monitor contacts
• Integral cable design
• Interlock type
• Operating temperature ranges between -25°C and70°C
• Two actuator entry slots provide flexibility
• Cable connection type
• Can be mounted in two directions
• Easy to install
• Highest safety is achieved by dual contacts and monitor contacts
• Integral cable design
• Interlock type
• Operating temperature ranges between -25°C and70°C
• Two actuator entry slots provide flexibility
Applications
• Doors
Certifications
• CCC certified
• CE certified
• cUL listed
• EN1088
• IEC60947-5-1
• IP67 rated
• ISO14119
• TUV
• CE certified
• cUL listed
• EN1088
• IEC60947-5-1
• IP67 rated
• ISO14119
• TUV
Specifikationer
Attribute | Value |
|---|---|
| Normal State Configuration | 3NC |
| Lock Type | Interlock |
| Safety Contacts | 3NC |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 30V |
| Connection Type | Cable |
| IP Rating | IP67 |
| Series | HS6B |
| Depth | 87mm |
| Maximum Current | 2.5A |
| Width | 15mm |
| Length | 30mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
