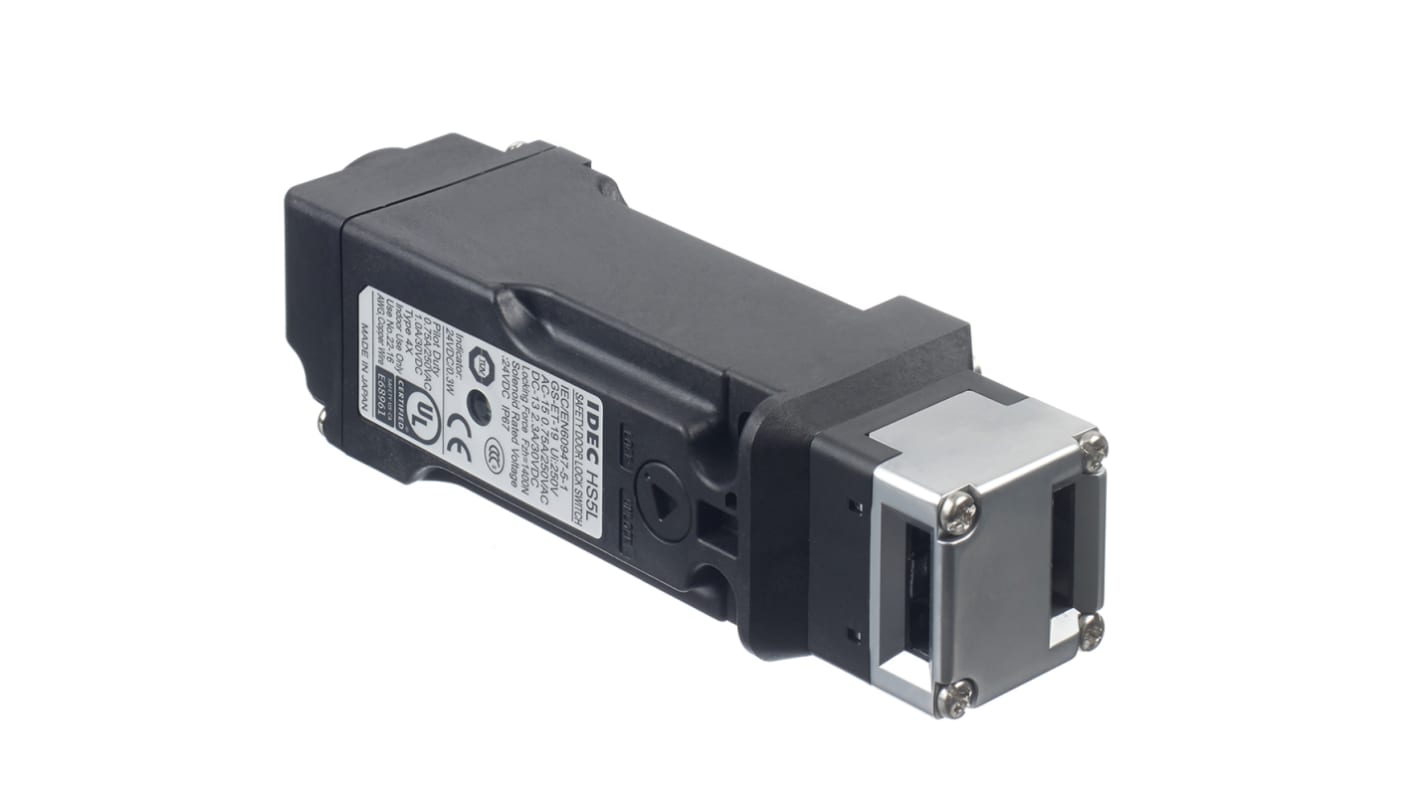

Idec HS5L Safety Interlock Switch, 1NC/1NO + 1NC/1NO, Keyed, Spring Lock
- RS-artikelnummer:
- 179-4742
- Tillv. art.nr:
- HS5L-VA44LM-G
- Tillverkare / varumärke:
- Idec
32 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
2 679,88 kr
(exkl. moms)
3 349,85 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 24 | 2 679,88 kr |
| 25 - 49 | 2 492,37 kr |
| 50 + | 2 358,29 kr |
- RS-artikelnummer:
- 179-4742
- Tillv. art.nr:
- HS5L-VA44LM-G
- Tillverkare / varumärke:
- Idec
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer
Idec Switch
The Idec HS5L series solenoid interlock switch has a locking strength of 1400N and four contacts in a compact housing. It is designed to work in applications with limited mounting spaces such as small doors. This model is equipped with a manual lock release key and an LED indicator.
Features and Benefits
• 1NC-1NO (door monitor) and 1NC-1NO (lock monitor) safety contacts
• Compact in size
• Dual safety circuit and four-circuit independent outputs available
• Gold-plated contacts suitable for small loads
• Head orientation can be rotated in eight different ways
• LED illumination colour is green
• M20 connection type
• Operating temperature ranges between -25°C and 55°C
• Spring clamp terminal block prevents loosening of wires due to vibration
• Spring lock type
• Compact in size
• Dual safety circuit and four-circuit independent outputs available
• Gold-plated contacts suitable for small loads
• Head orientation can be rotated in eight different ways
• LED illumination colour is green
• M20 connection type
• Operating temperature ranges between -25°C and 55°C
• Spring clamp terminal block prevents loosening of wires due to vibration
• Spring lock type
Applications
• Cutting
• Doors
• Pressing
• Rotating
• Doors
• Pressing
• Rotating
Certifications
• CCC certified
• CE certified
• cUL listed
• EN ISO14119
• IP67 rated
• TUV
• CE certified
• cUL listed
• EN ISO14119
• IP67 rated
• TUV
Specifikationer
Attribute | Value |
|---|---|
| Lock Style | Keyed |
| Normal State Configuration | 1NC/1NO + 1NC/1NO |
| Lock Type | Spring Lock |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 30V |
| Connection Type | M20 |
| IP Rating | IP67 |
| Series | HS5L |
| Length | 35mm |
| Maximum Operating Temperature | +55°C |
| Width | 61.6mm |
| Maximum Current | 2.5A |
| Minimum Operating Temperature | -25°C |
| Depth | 127mm |
