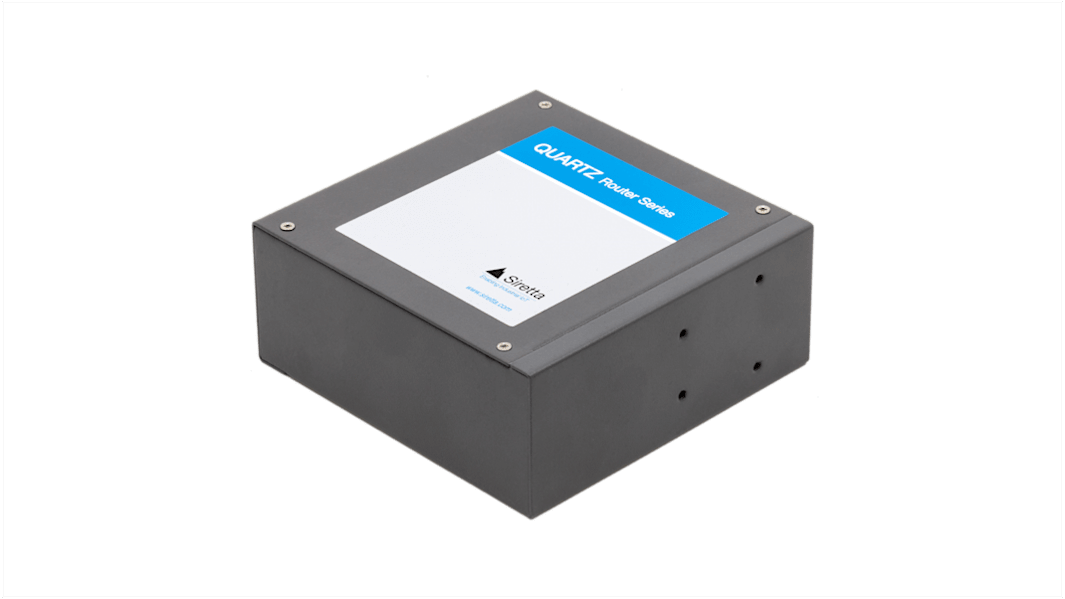

Siretta QUARTZ-W22-LTE(EU) + ACCESSORIES 3G, 4G, 1 x RS-232, 2 x LAN, 2 x SIM, 3 x I/O Ports

The QUARTZ-LTE router, has an array of features to empower your application. These include a dual SIM facility meaning you can configure a back-up cellular network between two different SIM cards, to ensure permanent reliable connection regardless of individual network availability. In addition, the QUARTZ-LTE has dual port ethernet capability, RJ45 serial RS232 port and 3 digital I/O and comes as standard with LTE/4G antennas, but it has the option to come with, or without, Wifi. It also has optional GPS capability, which means the router is ideal for asset tracking or access management.

European 4G LTE bands
Dual SIM
Dual LAN
2.4 GHz Wi-Fi support
RS232 Via linkCONNECT RJ45
High speed data via LTE network
Strong resistance to electromagnetic interference
Built-in watch dog
multi-link detection
Compact industrial design
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec

2 x 10/100 RJ-45 Ethernet Interfaces
1 x RS232 linkCONNECT RJ45 Interface
3 x I/O (Input/Output – user defined)
2 ´ Standard SIM/R-UIM interface
1 x RP-SMA (Male) Wi-Fi Interface
2 ´ SMA (Female) Cellular interface
1 ´ DC Power Interface (7.5 to 32 V DC)

Payment Services
Vending machine connectivity
Retail POS
Internet based Video surveillance
Digital signage

1 x Cellular Antenna
1 x Wi-Fi Antenna
1 x LAN Cable
1 x Power Block Interface
1 x Multi Head Power Adaptor
1 x DIN Rail Adaptor

CE
UKCA
RoHS
