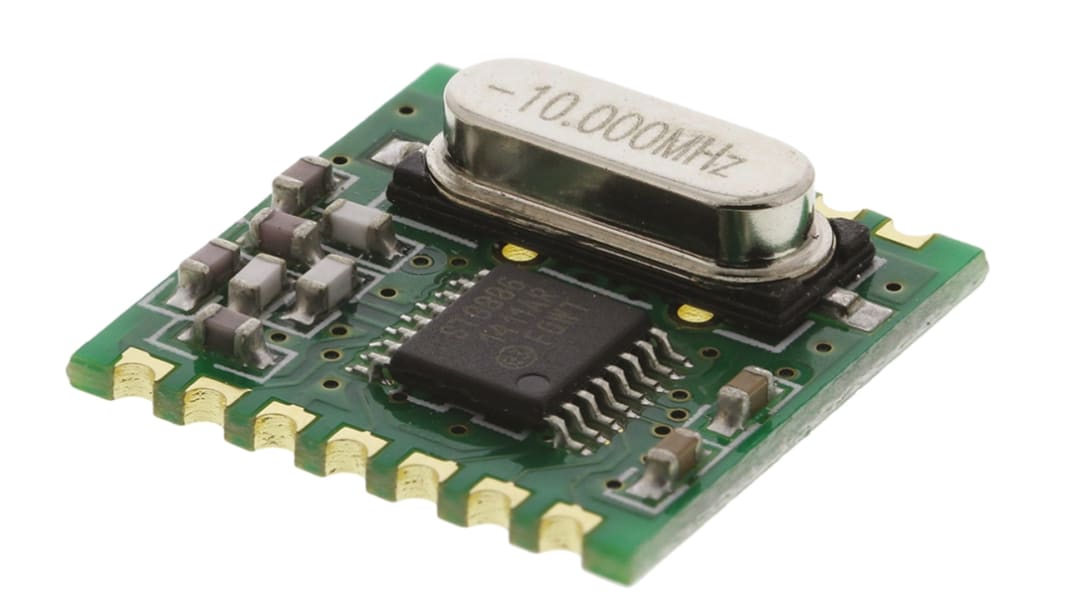

RF Solutions ALPHA-TRX433S Module 433MHz, 2.2 → 3.8V
- RS-artikelnummer:
- 666-6757
- Tillv. art.nr:
- ALPHA-TRX433S
- Tillverkare / varumärke:
- RF Solutions
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
Varje
122,17 kr
(exkl. moms)
152,71 kr
(inkl. moms)
- RS-artikelnummer:
- 666-6757
- Tillv. art.nr:
- ALPHA-TRX433S
- Tillverkare / varumärke:
- RF Solutions
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | RF Solutions | |
| Component Type | Module | |
| Supported Frequency Bands | 433MHz | |
| Modulation Technique | FM | |
| Maximum RF Data Rate | 115.2kbit/s | |
| Maximum Output Power | +25dBm | |
| Supported Bus Interfaces | SPI | |
| Supply Voltage | 2.2 → 3.8V | |
| Dimensions | 16.1 x 15.9 x 4.2mm | |
| Height | 4.2mm | |
| Length | 16.1mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 15.9mm | |
| Välj alla | ||
|---|---|---|
Brand RF Solutions | ||
Component Type Module | ||
Supported Frequency Bands 433MHz | ||
Modulation Technique FM | ||
Maximum RF Data Rate 115.2kbit/s | ||
Maximum Output Power +25dBm | ||
Supported Bus Interfaces SPI | ||
Supply Voltage 2.2 → 3.8V | ||
Dimensions 16.1 x 15.9 x 4.2mm | ||
Height 4.2mm | ||
Length 16.1mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 15.9mm | ||
- COO (Country of Origin):
- CN
ALPHA 433MHz Transmitter & Receiver Modules
This ALPHA range of radio data modules consists of transmitters, receivers and transceivers operating in the 433 ISM frequency band.
RF Carrier Frequency range: 430.24 to 439.75MHz ISM Band
Transmitter Output Power: up to +7dBm
Receiver Sensitivity: -109dBm @1200bps, BER = 0.1%
Modulation: FSK, OOK
High resolution PLL with 2.5KHz step
Programmable frequency deviation (from 30kHz to 210kHz, step 30kHz)
Max data rate: 115.2kbps with internal digital filters
SPI port for setup
Clock and reset signal output for external MCU use
Wake-up timer
Low-battery detection
Power supply: +2.2 to +5.4Vdc
Stand-by current less than 0.3μA
Operating temperature range: -40 to +85°C
Dimensions: 16.1 x 15.9 x 4.2mm
Applications: Remote control, Remote sensing, Wireless data collection, Home security system, Toys, Tyre pressure monitoring system, local communication for the Internet-of-Things (IoT)
RS Product Codes
666-6744 ALPHA-TX-433 Transmitter
666-6757 ALPHA-TRX-433 Transceiver
Transmitter Output Power: up to +7dBm
Receiver Sensitivity: -109dBm @1200bps, BER = 0.1%
Modulation: FSK, OOK
High resolution PLL with 2.5KHz step
Programmable frequency deviation (from 30kHz to 210kHz, step 30kHz)
Max data rate: 115.2kbps with internal digital filters
SPI port for setup
Clock and reset signal output for external MCU use
Wake-up timer
Low-battery detection
Power supply: +2.2 to +5.4Vdc
Stand-by current less than 0.3μA
Operating temperature range: -40 to +85°C
Dimensions: 16.1 x 15.9 x 4.2mm
Applications: Remote control, Remote sensing, Wireless data collection, Home security system, Toys, Tyre pressure monitoring system, local communication for the Internet-of-Things (IoT)
RS Product Codes
666-6744 ALPHA-TX-433 Transmitter
666-6757 ALPHA-TRX-433 Transceiver
Approvals
CE, FCC
