Microchip MRF89XAM9A-I/RM, RF Transceiver IC 50kHz to 250kHz Dual Band 32-Pin QFN
- RS-artikelnummer:
- 817-3670
- Tillv. art.nr:
- MRF89XAM9A-I/RM
- Tillverkare / varumärke:
- Microchip
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
- RS-artikelnummer:
- 817-3670
- Tillv. art.nr:
- MRF89XAM9A-I/RM
- Tillverkare / varumärke:
- Microchip
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Microchip | |
| Technology | Low IF/ISM Transceiver | |
| Modulation Technique | FSK, OOK | |
| Package Type | QFN | |
| Pin Count | 32 | |
| Dimensions | 5.1 x 5.1 x 0.75mm | |
| Mounting Type | Surface Mount | |
| Length | 5.1mm | |
| Width | 5.1mm | |
| Height | 0.75mm | |
| Maximum Operating Band 1 Frequency | 250kHz | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Band 1 Frequency | 50kHz | |
| Minimum Operating Supply Voltage | 2.1 V | |
| Number of Operating Bands | 2 | |
| Minimum Operating Temperature | -40 °C | |
| Välj alla | ||
|---|---|---|
Brand Microchip | ||
Technology Low IF/ISM Transceiver | ||
Modulation Technique FSK, OOK | ||
Package Type QFN | ||
Pin Count 32 | ||
Dimensions 5.1 x 5.1 x 0.75mm | ||
Mounting Type Surface Mount | ||
Length 5.1mm | ||
Width 5.1mm | ||
Height 0.75mm | ||
Maximum Operating Band 1 Frequency 250kHz | ||
Maximum Operating Supply Voltage 3.6 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Band 1 Frequency 50kHz | ||
Minimum Operating Supply Voltage 2.1 V | ||
Number of Operating Bands 2 | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- US

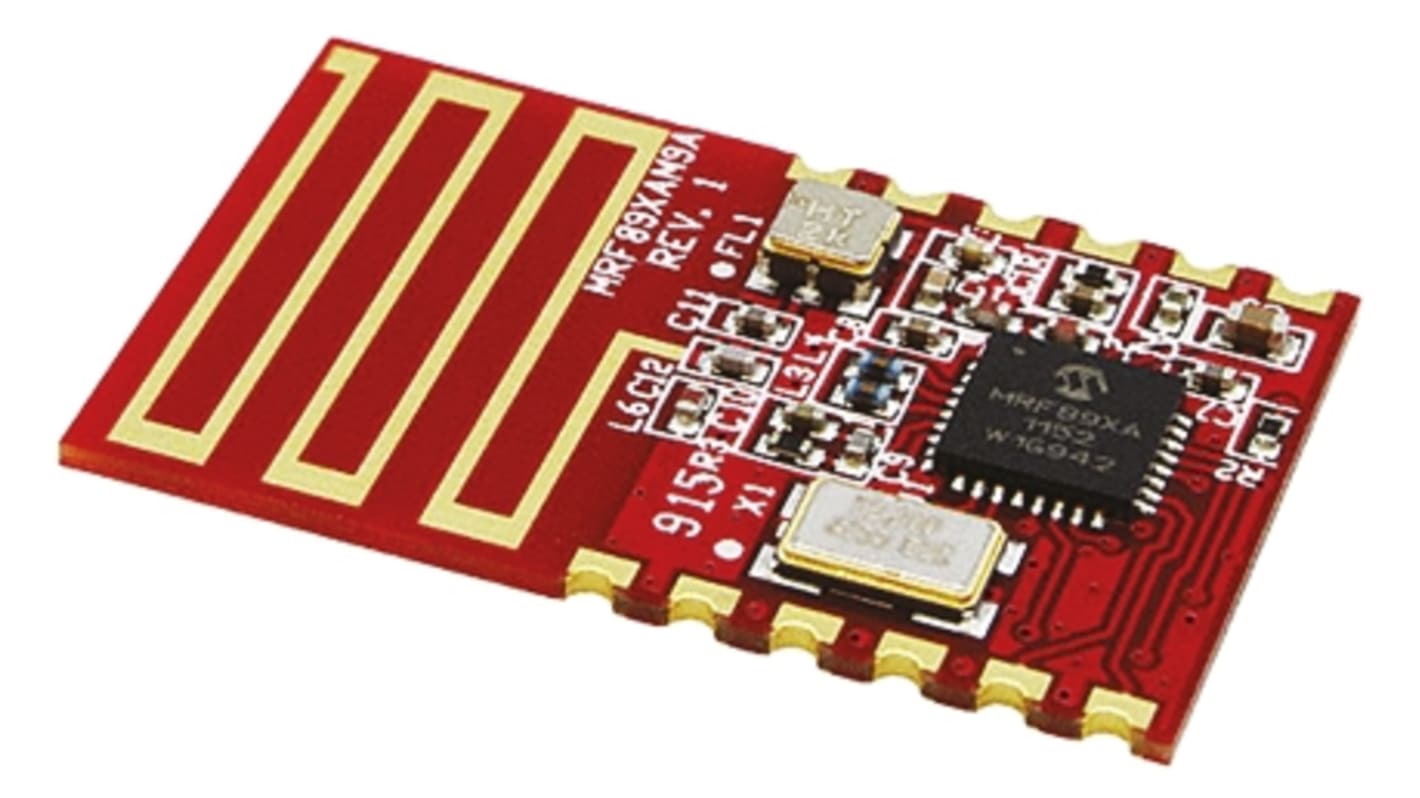

MRF89XAM9A 915MHz Transceiver Module
The MRF89XAM9A is a multi-channel FSK/OOK transceiver module operating in the 902-928MHz ISM frequency band. It is based on the Microchip MRF89XA single-chip RF transceiver.
RF Frequency Range: 902 to 928MHz ISM band
RF Output Power: +10dBm
Receiver Sensitivity: -105dBm @ 25kbps FSK
Modulation: FSK, OOK
OTA Data Rate: up to 200kbps
Supports packet handling, data whitening and automatic CRC generation
Supports Manchester encoding/decoding
Incoming sync word (pattern) recognition
Bit synchronizer for incoming data and clock synchronization/recovery
Supports proprietary sub-1GHz wireless protocols
Digital RSSI
64-byte Tx/Rx data FIFO
Host communication: serial SPI
Supports power-saving modes
PCB antenna
Power supply: +2.1 to +3.6Vdc
Operating temperature range: -40 to +85°C
Dimensions: 17.8 x 27.9 x 1.9mm
Supports MiWi™ development environment, proprietary wireless networking protocols
Applications: Home/Industrial Automation, Remote Control, Wireless PC Peripherals, Remote Keyless Entry, Vehicle Sensor Monitoring, Telemetry, Local communication for the Internet of Things (IoT)
RS Product Codes
798-5264 MRF89XAM9A-I/RM
817-3670 MRF89XAM9A-I/RM (Pack of 54)
RF Product Code for Device
754-5115 MRF89XAT-I/MQ
RF Output Power: +10dBm
Receiver Sensitivity: -105dBm @ 25kbps FSK
Modulation: FSK, OOK
OTA Data Rate: up to 200kbps
Supports packet handling, data whitening and automatic CRC generation
Supports Manchester encoding/decoding
Incoming sync word (pattern) recognition
Bit synchronizer for incoming data and clock synchronization/recovery
Supports proprietary sub-1GHz wireless protocols
Digital RSSI
64-byte Tx/Rx data FIFO
Host communication: serial SPI
Supports power-saving modes
PCB antenna
Power supply: +2.1 to +3.6Vdc
Operating temperature range: -40 to +85°C
Dimensions: 17.8 x 27.9 x 1.9mm
Supports MiWi™ development environment, proprietary wireless networking protocols
Applications: Home/Industrial Automation, Remote Control, Wireless PC Peripherals, Remote Keyless Entry, Vehicle Sensor Monitoring, Telemetry, Local communication for the Internet of Things (IoT)
RS Product Codes
798-5264 MRF89XAM9A-I/RM
817-3670 MRF89XAM9A-I/RM (Pack of 54)
RF Product Code for Device
754-5115 MRF89XAT-I/MQ
Approvals
FCC, IC, C-TICK
