- RS-artikelnummer:
- 190-4744
- Tillv. art.nr:
- DS1672U-33+
- Tillverkare / varumärke:
- Maxim Integrated
Se alla Real Time Clocks
150 I lager för avsändande samma dag
Pris (ex. moms) Each (In a Tube of 50)
21,948 kr
(exkl. moms)
27,435 kr
(inkl. moms)
Enheter | Per unit | Per Tube* |
50 + | 21,948 kr | 1 097,40 kr |
- RS-artikelnummer:
- 190-4744
- Tillv. art.nr:
- DS1672U-33+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

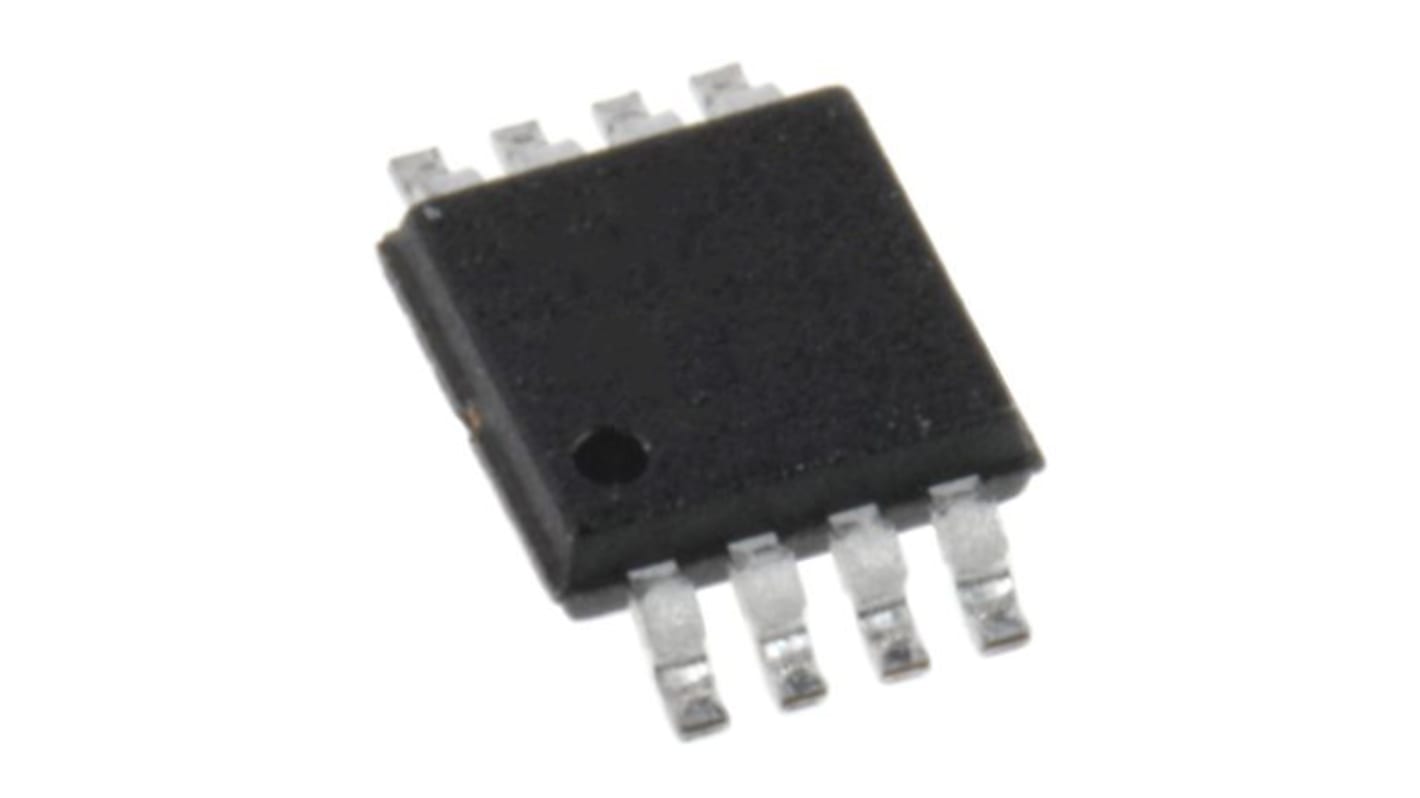

The DS1672 low-voltage serial timekeeping chip incorporates a 32-bit counter and power-monitoring functions. The 32-bit counter is designed to count seconds and can be used to derive time-of-day, week, month, and year by using a software algorithm. A precision, temperature-compensated reference and comparator circuit monitors the status of VCC. When an out-of-tolerance condition occurs, an internal power-fail signal is generated that forces the reset to the active state. When VCC returns to an in-tolerance condition, the reset signal is kept in the active state for 250ms to allow the power supply and processor to stabilize.
32-Bit Counter
I²C Serial Interface
Automatic Power-Fail Detect and Switch Circuitry
Power-Fail Reset Output
Low-Voltage Oscillator Operation (1.3V min)
Trickle-Charge Capability
I²C Serial Interface
Automatic Power-Fail Detect and Switch Circuitry
Power-Fail Reset Output
Low-Voltage Oscillator Operation (1.3V min)
Trickle-Charge Capability
Specifikationer
Attribute | Value |
---|---|
Functions | Binary Counter, Real Time Clock |
Bus Type | Serial-I2C |
Mounting Type | Surface Mount |
Package Type | μSOP |
Pin Count | 8 |
Dimensions | 3.1 x 0.65 x 0.95mm |
Length | 3.1mm |
Width | 0.65mm |
Height | 0.95mm |
Maximum Operating Supply Voltage | 5.5 V |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Minimum Operating Supply Voltage | 2.97 V |
