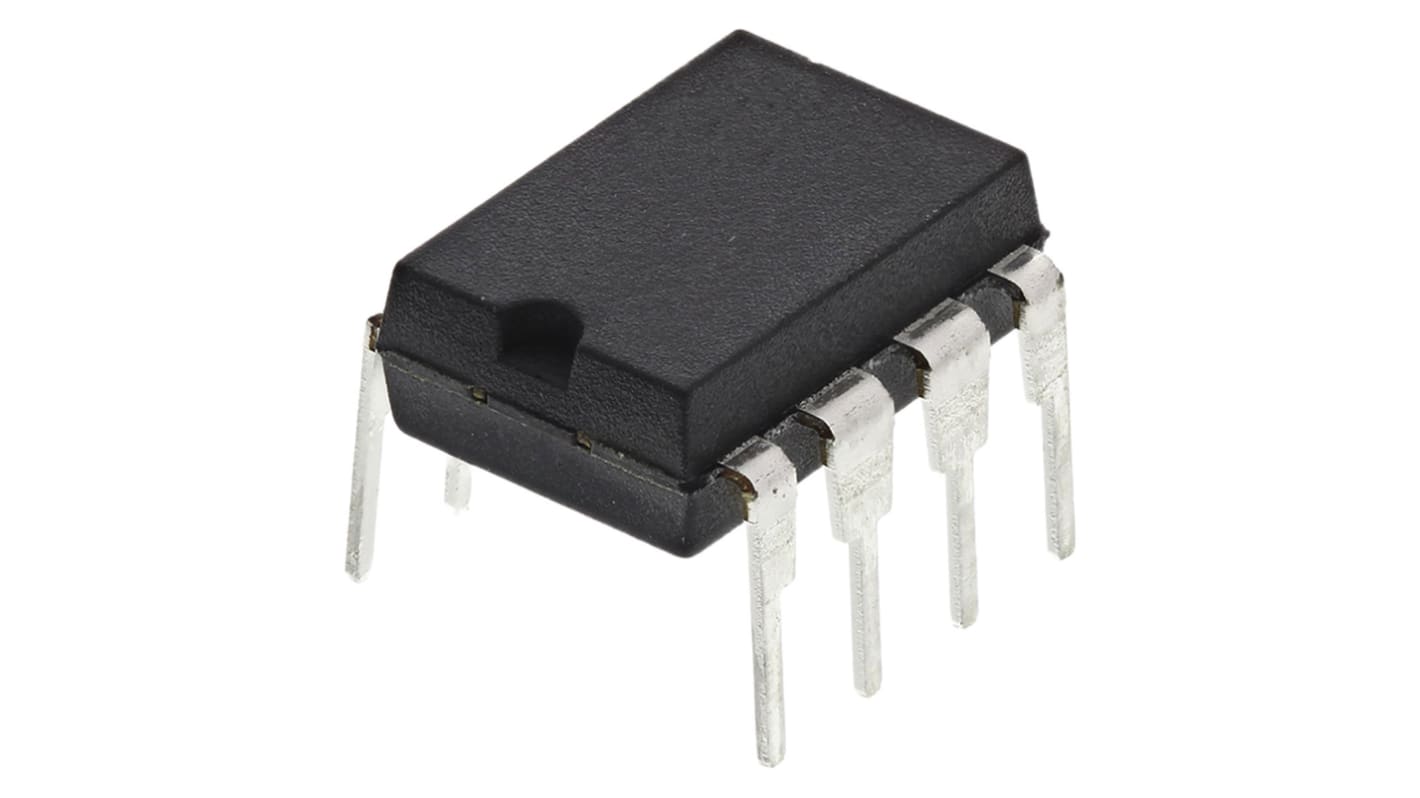

Name: Texas Instruments TL3845P, PWM Controller, 500 kHz 8-Pin, PDIP
Brand: Texas Instruments
SKU: 661-4949
Price: 4.89 SEK
Availability: Discontinued

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Texas Instruments
	Maximum Switching Frequency	500 kHz
	Output Voltage	30 V
	Output Current	200 mA
	Number of Outputs	1
	Control Method	Current
	Mounting Type	Through Hole
	Fall Time	50ns
	Rise Time	50ns
	Package Type	PDIP
	Topology	Boost, Flyback, Forward
	Pin Count	8
	Dimensions	9.81 x 6.35 x 4.57mm
	Maximum Duty Cycle	48%
	Length	9.81mm
	PWM Controller Type	Current Mode
	Width	6.35mm
	Height	4.57mm
	Maximum Operating Temperature	+70 °C
	Minimum Operating Temperature	0 °C

	Välj alla
	Brand Texas Instruments
	Maximum Switching Frequency 500 kHz
	Output Voltage 30 V
	Output Current 200 mA
	Number of Outputs 1
	Control Method Current
	Mounting Type Through Hole
	Fall Time 50ns
	Rise Time 50ns
	Package Type PDIP
	Topology Boost, Flyback, Forward
	Pin Count 8
	Dimensions 9.81 x 6.35 x 4.57mm
	Maximum Duty Cycle 48%
	Length 9.81mm
	PWM Controller Type Current Mode
	Width 6.35mm
	Height 4.57mm
	Maximum Operating Temperature +70 °C
	Minimum Operating Temperature 0 °C

ESD Control Selection Guide V1

Flyback Controller, Current Control, TL28/TL38 Series, Texas Instruments

The isolated-flyback power supply controller provides Constant-Voltage (CV) and Constant-Current (CC) output regulation to improve transient response to large load steps. Primary-Side Regulation (PSR) eliminates the need for an Optocoupler.

Flyback Controllers, Texas Instruments

Current-Mode and Voltage-Mode PWM Controller
Primary-Side Regulation
Peak Power Mode
Low Power
