	Brand	onsemi
	Maximum Switching Frequency	100 kHz
	Output Voltage	670 V
	Output Current	800 mA
	Fall Time	10ns
	Mounting Type	Surface Mount
	Rise Time	20ns
	Package Type	SOT-223
	Pin Count	3 + Tab
	Maximum Duty Cycle	73%
	Dimensions	6.7 x 3.7 x 1.65mm
	Length	6.7mm
	PWM Controller Type	Current Mode
	Width	3.7mm
	Height	1.65mm
	Automotive Standard	AEC-Q100
	Maximum Operating Temperature	+150 °C
	Maximum Operating Supply Voltage	8.2 V

	Välj alla
	Brand onsemi
	Maximum Switching Frequency 100 kHz
	Output Voltage 670 V
	Output Current 800 mA
	Fall Time 10ns
	Mounting Type Surface Mount
	Rise Time 20ns
	Package Type SOT-223
	Pin Count 3 + Tab
	Maximum Duty Cycle 73%
	Dimensions 6.7 x 3.7 x 1.65mm
	Length 6.7mm
	PWM Controller Type Current Mode
	Width 3.7mm
	Height 1.65mm
	Automotive Standard AEC-Q100
	Maximum Operating Temperature +150 °C
	Maximum Operating Supply Voltage 8.2 V

Datasheet NCV1077STBT3G

COO (ursprungsland):: MY

Integrated 670 V MOSFET with RDS(on) of 4.7 Ω
Current-Mode Fixed Frequency Operation (65/100/130 kHz)
Peak Current: NCP1076 = 650mA / NCP1077 = 800 mA
Skip-Cycle Operation at Low Peak Current
Dynamic Self-Supply (DSS)
Auto-Recovery Output Short Circuit Protection with Timer-Based Detection
300 μA No Load Power Consumption
Up to 20 W output SMPS design capability
Ability to scale for efficiency or size
Adjust output current protection based on output power demand
Eliminate acoustic noise
Eliminate Aux winding
More robust protection independent from the coupling of the aux winding
<50mW no Load Power Consumption
To be used in Automotive applications (HV Battery powered low power designs)
Applications
EV Auxiliary Power Supply
End Products
On Board chargers
EV Traction Inverters

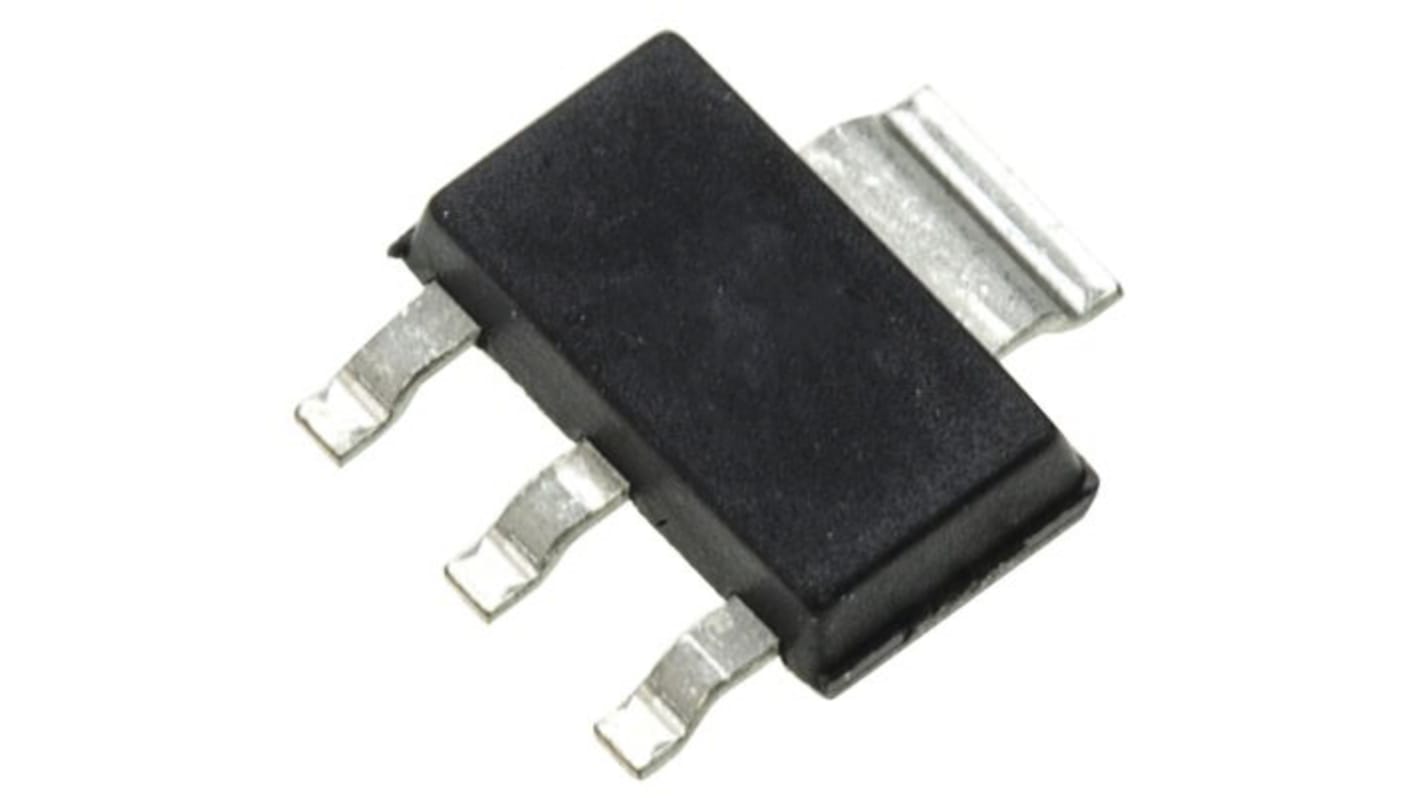

onsemi NCV1077STBT3G, PWM Controller, 8.2 V, 100 kHz 3 + Tab-Pin, SOT-223
