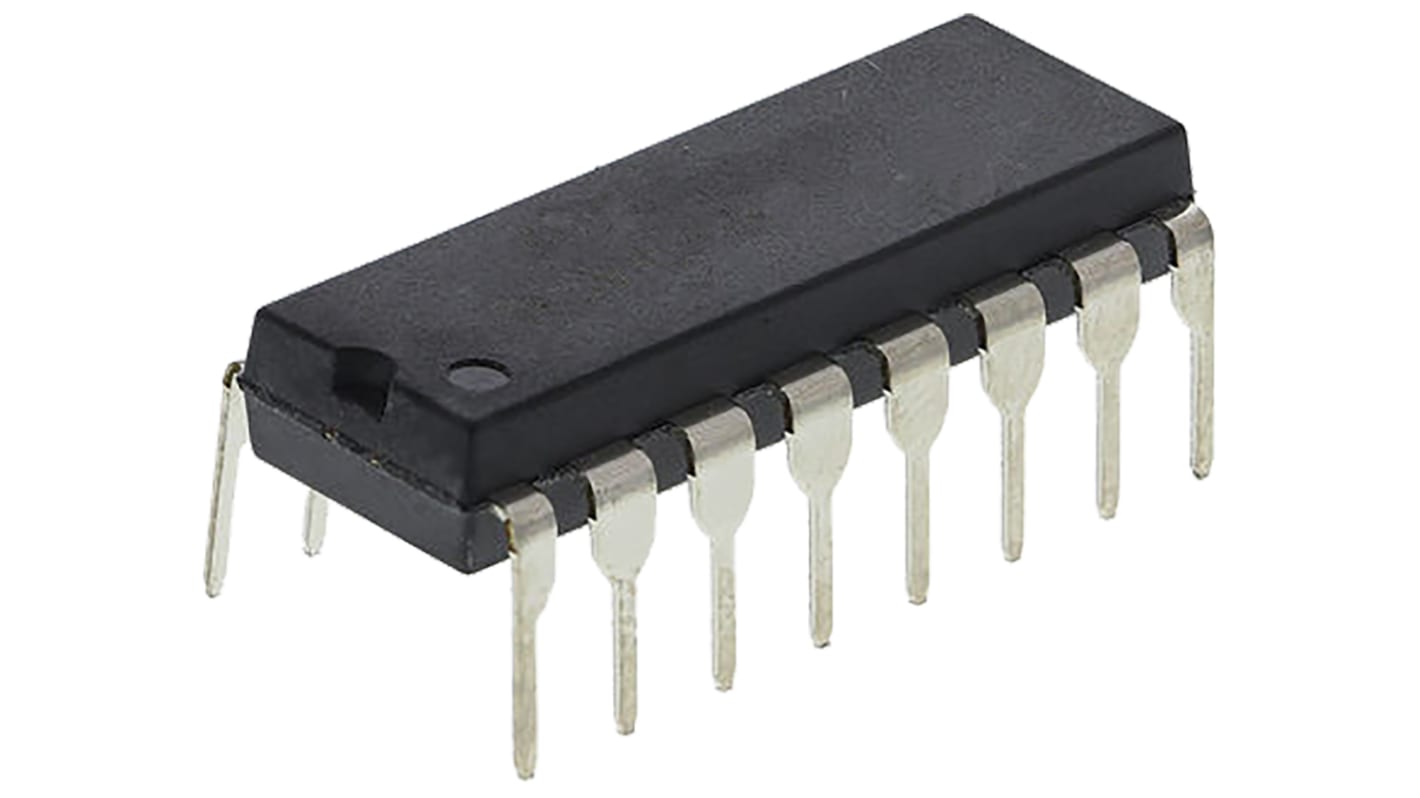

STMicroelectronics SG2525AN, Dual PWM Controller, 35 V, 400 kHz 16-Pin, PDIP
- RS-artikelnummer:
- 168-8876
- Tillv. art.nr:
- SG2525AN
- Tillverkare / varumärke:
- STMicroelectronics
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
Var (i ett paket med 10)
16,369 kr
(exkl. moms)
20,461 kr
(inkl. moms)
- RS-artikelnummer:
- 168-8876
- Tillv. art.nr:
- SG2525AN
- Tillverkare / varumärke:
- STMicroelectronics
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | STMicroelectronics | |
| Maximum Switching Frequency | 400 kHz | |
| Start-up Supply Current | 80µA | |
| Maximum Source Current | 400mA | |
| Maximum Sink Current | 400mA | |
| Maximum Supply Current | 20 mA | |
| Output Voltage | 5.05 to 5.15 V | |
| Output Current | 500 mA | |
| Number of Outputs | 2 | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 16 | |
| Dimensions | 20 x 7.1 x 5.1mm | |
| Length | 20mm | |
| Width | 7.1mm | |
| Height | 5.1mm | |
| Minimum Operating Temperature | -25 °C | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 8 V | |
| Maximum Operating Supply Voltage | 35 V | |
| Välj alla | ||
|---|---|---|
Brand STMicroelectronics | ||
Maximum Switching Frequency 400 kHz | ||
Start-up Supply Current 80µA | ||
Maximum Source Current 400mA | ||
Maximum Sink Current 400mA | ||
Maximum Supply Current 20 mA | ||
Output Voltage 5.05 to 5.15 V | ||
Output Current 500 mA | ||
Number of Outputs 2 | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 16 | ||
Dimensions 20 x 7.1 x 5.1mm | ||
Length 20mm | ||
Width 7.1mm | ||
Height 5.1mm | ||
Minimum Operating Temperature -25 °C | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 8 V | ||
Maximum Operating Supply Voltage 35 V | ||
- COO (Country of Origin):
- CN
PWM Controllers, STMicroelectronics
Pulse-width modulator (PWM) controllers can support isolated and non-isolated AC-DC and DC-DC switch mode power supplies. They are based on the most popular topologies in both single-ended, such as fly-back, forward or quasi-resonant controllers, and double-ended configurations, such as asymmetrical half-bridge, for Switch Mode Power Supplies (SMPS).
The PMW controllers also integrate a comprehensive set of protections for enhanced robustness and reliability.
The PMW controllers also integrate a comprehensive set of protections for enhanced robustness and reliability.
