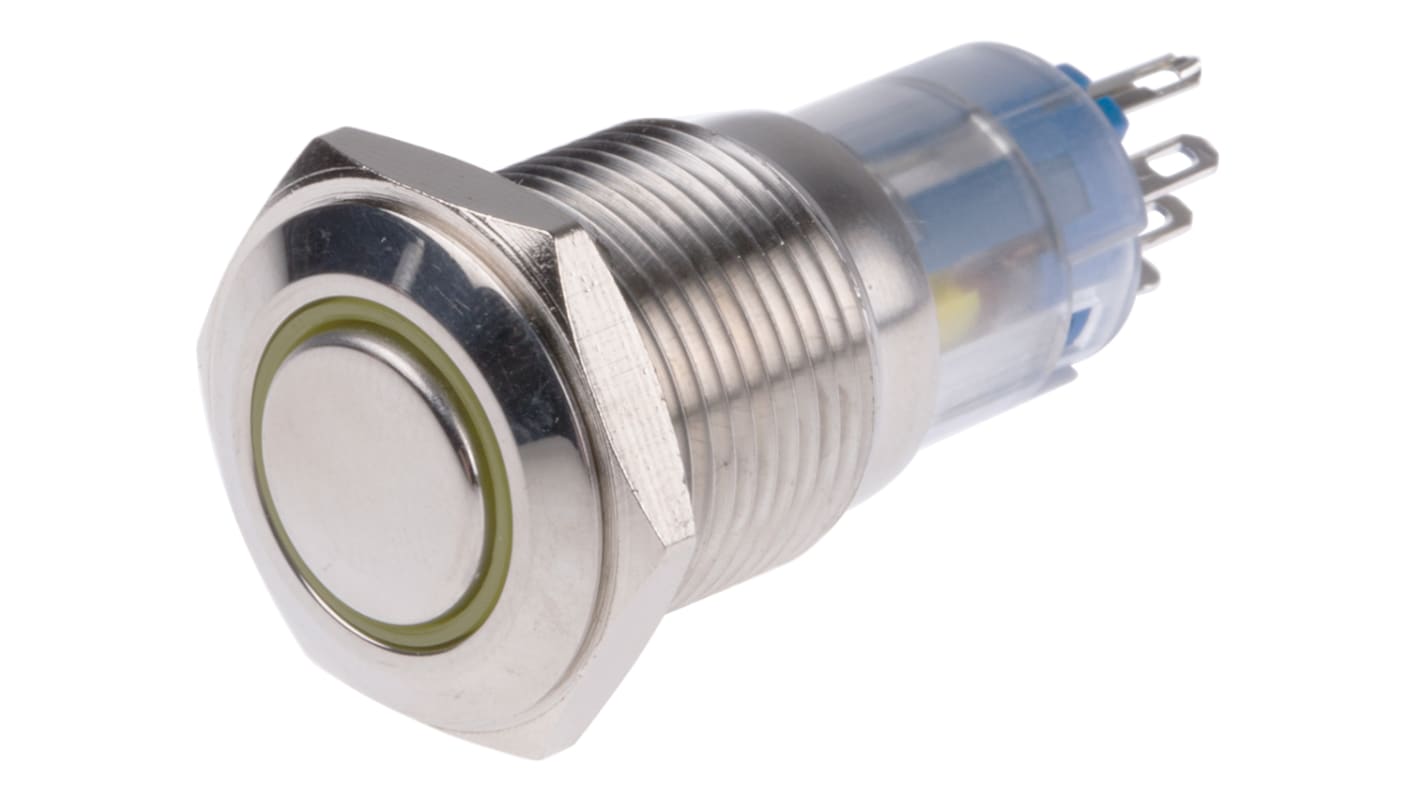

RS PRO Illuminated Push Button Switch, Latching, Panel, 16 mm Cutout, SPDT, Yellow LED, IP65, IP67 250 V

Se alla Push Button Switches
Mängdrabatt möjlig

Antal (1 enhet)*

245,72 kr

(exkl. moms)

307,15 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • 34 enhet(er) levereras från den 14 juli 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 9245,72 kr
10 - 24221,20 kr
25 - 49201,38 kr
50 - 99184,24 kr
100 +171,92 kr

*vägledande pris

RS-artikelnummer:
811-8433
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Switch Operation

Latching

Product Type

Push Button Switch

Actuator Colour

Silver

Illuminated

Yes

Panel Cutout Size

16 mm

Mount Type

Panel

Contact Configuration

SPDT

Terminal Type

Solder

LED Colour

Yellow

IP Rating

IP65, IP67

Minimum Operating Temperature

-20°C

Contact AC Voltage

250V

Actuator Style

Flat

Switch Configuration

SPDT

Switch Contact Current

3 A

Standards/Approvals

RoHS

COO (Country of Origin):
TW

RS PRO Single Pole Double Throw (SPDT) Latching Yellow LED Push Button Switch, IP65, IP67, 16 mm Diameter, Panel Mounting


This latching push-button switch from RS PRO is suitable for turning electrical equipment on and off in a wide range of industrial settings. It's fitted inside a robust stainless steel enclosure that can withstand physical force without being destroyed, so it's protected against vandalism. Typical applications for this type of switch include security dashboards and intercom panels.

The front panel of the unit has an IP67 rating, meaning it's protected from sprays of water, dirt and other small particles. This means you can rest assured that it will operate reliably, even in demanding environments such as dusty or wet manufacturing plants.

The switch's electrical contacts are made from silver-plated copper alloy, which is extremely conductive and oxidation-resistant for optimal performance. This material is also very hardwearing, ensuring a long service life.

Features and Benefits


  • Single Pole Double Throw (SPDT) contact configuration

  • Silver actuator colour

  • Flat actuator type

  • Contact current rating of 3 A at 250 V AC

  • Voltage rating of 250 V AC

  • Yellow LED (light-emitting diode)

  • Panel mounting

  • Panel cut-out diameter of 16 mm

  • Latching switch operation

  • Solder terminal type

  • Ingress Protection (IP) rating of IP65 and IP67

  • Silver-plated copper alloy contacts
