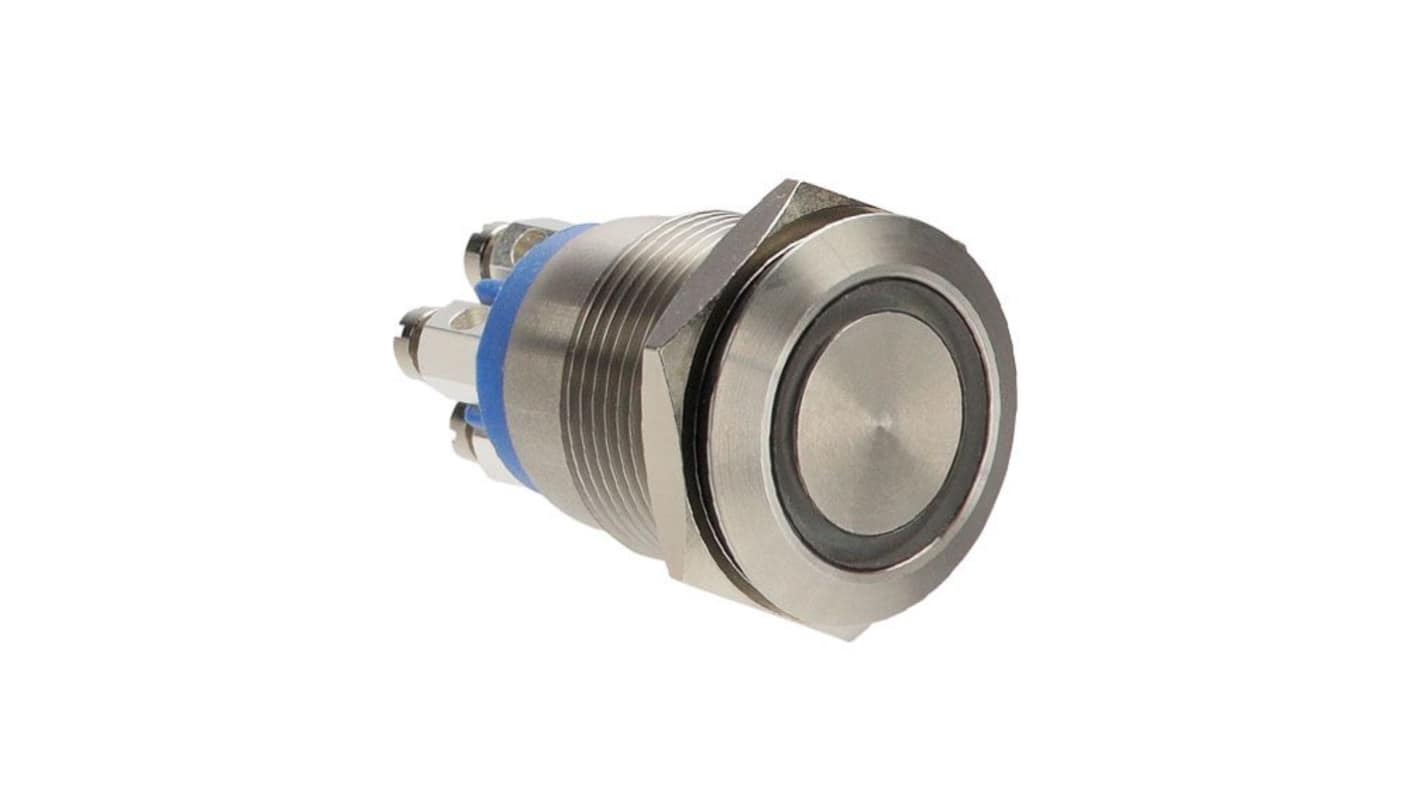

Bulgin MPI002 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPST, Blue LED, 24V dc, IP66

RS-artikelnummer:: 708-3061
Distrelec artikelnummer:: 135-07-266
Tillv. art.nr:: MPI002/TERM/BL
Tillverkare / varumärke:: Bulgin

Bulgin MPI002 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, SPST, Blue LED, 24V dc, IP66

Mängdrabatt möjlig

Antal (1 enhet)*

550,59 kr

(exkl. moms)

688,24 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

107 enhet(er) är redo att levereras
Plus 19 enhet(er) är redo att levereras från en annan plats
Dessutom levereras 133 enhet(er) från den 18 december 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 9	550,59 kr
10 - 49	509,94 kr
50 - 99	449,34 kr
100 +	414,62 kr

*vägledande pris

RS-artikelnummer:: 708-3061
Distrelec artikelnummer:: 135-07-266
Tillv. art.nr:: MPI002/TERM/BL
Tillverkare / varumärke:: Bulgin

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Bulgin
	Switch Operation	Momentary
	Illuminated	Yes
	Series	MPI002
	Panel Cut Out Diameter	19.2mm
	Mounting Type	Panel Mount
	Push Button Colour	Silver
	Contact Configuration	SPST
	Voltage Rating	24V dc
	Push Button Style	Round
	LED Colour	Blue
	IP Rating	IP66
	Push Button Material	Stainless Steel
	Contact Current Rating	50 mA @ 24 V dc
	Contact Material	Gold Plated
	Legend	(Blank)
	Manufacturer Part No.	MPI002/TERM/BL
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-30°C
	Terminal Type	Screw
	Operating Temperature Range	-30 → +70°C
	Body Material	Stainless Steel

	Välj alla
	Brand Bulgin
	Switch Operation Momentary
	Illuminated Yes
	Series MPI002
	Panel Cut Out Diameter 19.2mm
	Mounting Type Panel Mount
	Push Button Colour Silver
	Contact Configuration SPST
	Voltage Rating 24V dc
	Push Button Style Round
	LED Colour Blue
	IP Rating IP66
	Push Button Material Stainless Steel
	Contact Current Rating 50 mA @ 24 V dc
	Contact Material Gold Plated
	Legend (Blank)
	Manufacturer Part No. MPI002/TERM/BL
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -30°C
	Terminal Type Screw
	Operating Temperature Range -30 → +70°C
	Body Material Stainless Steel

Datasheet - Stainless Steel Illuminated Vandal Resistant Switches MPI001 & MPI002 Series

COO (Country of Origin):: TN

Stainless Steel Vandal Resistant Illuminated Pushbutton

Vandal resistant stainless steel switch body and button
Dot or ring illumination
Single pole, push to make
Bright Daylight LEDs
Separate LED terminals
750,000 mechanical operations minimum

Bulgin MPI002 Series Push Button Switch, 19.2mm Panel Cut Out Diameter, 24V DC Voltage Rating - MPI002/TERM/BL

This illuminated push button is designed for easy panel mounting, measuring 19.2mm in diameter. The stainless steel switch boasts both durability and aesthetic appeal, making it suitable for various applications in demanding environments. With a momentary action, this SPST switch operates at 24V, offering reliable performance across a temperature range of -30°C to +70°C.

Features & Benefits

• Stainless steel construction enhances durability and vandal resistance
• Blue LED illumination provides clear visibility in low light
• Momentary switch design facilitates quick and responsive operation
• Operates at a maximum contact current of 50mA at 24V DC
• Panel mount type ensures secure installation in various settings

Applications

• Used in automation systems for control panels
• Ideal for electrical and mechanical equipment interfaces
• Utilised in environments that require a high level of moisture protection
• Suitable for emergency stop buttons in machinery

How does the IP66 rating affect its performance in outdoor environments?

The IP66 rating guarantees that the switch is fully dust-tight and can withstand powerful jets of water, making it suitable for outdoor installations where moisture and contaminants are a concern.

What is the significance of the momentary action in this switch?

The momentary action allows the switch to remain active only while it is pressed, which is ideal for applications requiring temporary control or interaction, such as machinery start/stop functions.

Can this switch be used in high-temperature applications?

Yes, the switch functions effectively within a temperature range of -30°C to +70°C, ensuring performance even in high-temperature environments.

How does the LED illumination enhance usability?

The blue LED provides visibility and feedback, indicating when the switch has been activated, which is particularly beneficial in low light conditions.

What kind of maintenance does this switch require?

The robust stainless steel design minimises maintenance needs, and the sealed construction helps protect against contaminants, ensuring long-term reliability in various applications.

Warning

Illumination Voltage:
Suffix
/6 → 6Vdc
/12 → 12Vdc
/24 → 24Vdc
/no suffix → The resistor is not installed. The user must select and connect an appropriate resistor in series.
See the datasheet for more details.
