EOZ Momentary Push Button Switch, Panel Mount, SPST, 16.2mm Cutout, 48 V dc, 250 V ac, IP65
- RS-artikelnummer:
- 690-3264
- Tillv. art.nr:
- R16FFSSTAG
- Tillverkare / varumärke:
- EOZ
Pris (ex. moms) Each
97,35 kr
(exkl. moms)
121,69 kr
(inkl. moms)
Enheter | Per unit |
1 - 9 | 97,35 kr |
10 - 49 | 87,98 kr |
50 - 99 | 78,49 kr |
100 - 249 | 69,00 kr |
250 + | 59,61 kr |
- RS-artikelnummer:
- 690-3264
- Tillv. art.nr:
- R16FFSSTAG
- Tillverkare / varumärke:
- EOZ
- COO (Country of Origin):
- FR
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
R Series Anti-vandal pushbutton (16 mm)
These R series from EOZ are a range of 16 mm vandal resistant push buttons, ideal for use across a number of industries and applications such as:-
Access Control systems.
Machinery and factory equipment.
Exposed public areas such as ticket machines, kiosks and vending machines
And many more
Features and Benefits
Vandal Resistant.
Shock resistant to IK08 – protected against 5 joules impact. Equivalent to impact of 1.7 kg mass dropped from approximately 300 mm above impacted surface.
Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.
Mounted in 16mm holes.
Non-illuminated
Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.

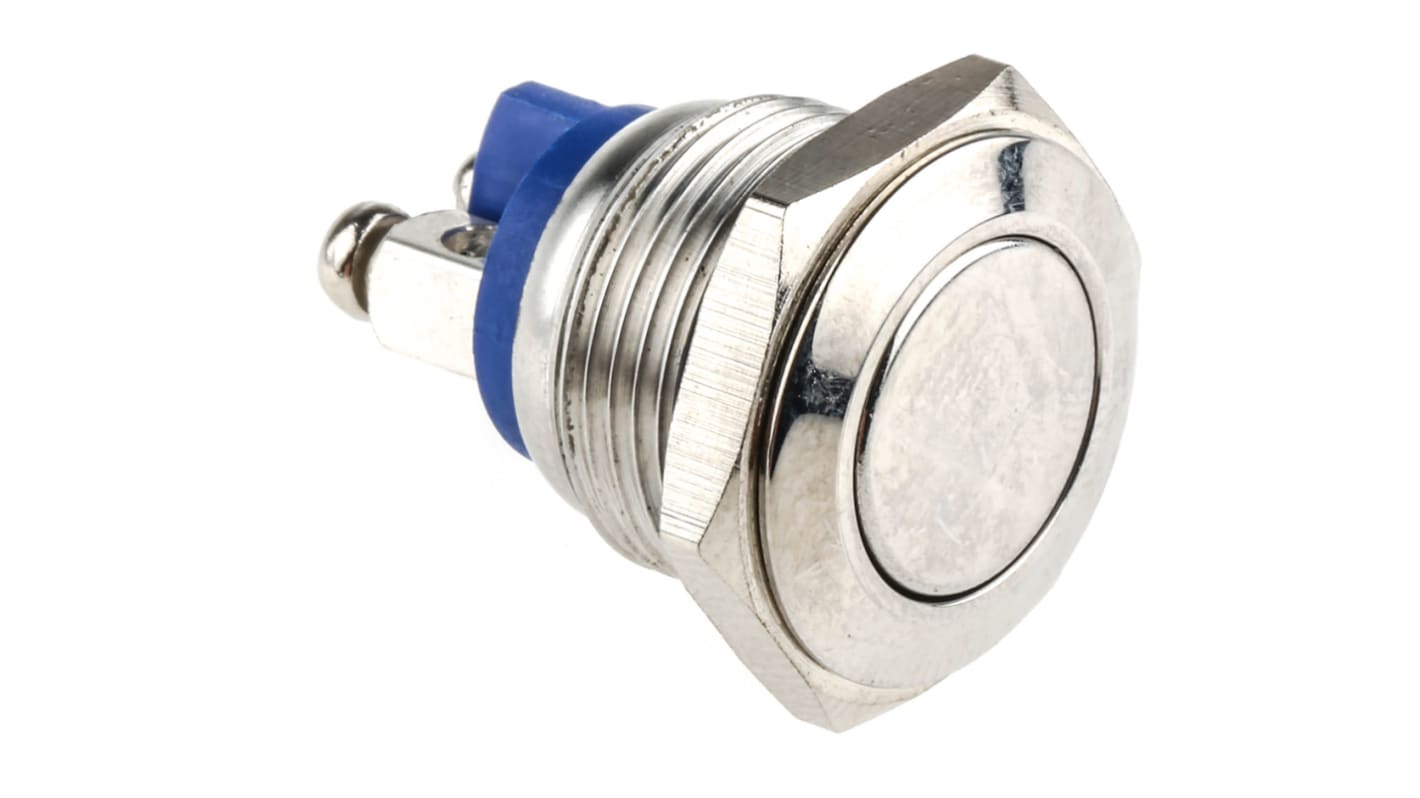

The R16FFSSTAG push button switch is a 16 mm, anti-vandal, momentary switch.
Features and Benefits
Flush shape push button – extremely robust and reliable.
Stainless steel – resists corrosion, heat damage and chemical damage.
Non-illuminated.
Screw terminal.
Momentary push button switch only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
Specifikationer
Attribute | Value |
Switch Operation | Momentary |
Mounting Type | Panel Mount |
Illuminated | No |
Contact Configuration | Single Pole Single Throw (SPST) |
Panel Cut Out Size | 16.2 (Dia.)mm |
Panel Cut Out Diameter | 16.2mm |
IP Rating | IP65 |
Actuator Colour | Silver |
Voltage Rating | 48 V dc, 250 V ac |
Contact Current Rating | 2 A @ 48 V dc |
Actuator Shape | Round |
Terminal Type | Screw |
Actuator Type | Button |
Case Colour | Stainless Steel |
