Schneider Electric Harmony 9001K Series Push Button, Panel Mount, 30mm Cutout, SPST, IP66
- RS-artikelnummer:
- 542-8122
- Tillv. art.nr:
- 9001KR3UH5
- Tillverkare / varumärke:
- Schneider Electric
Mängdrabatt möjlig
Antal (1 enhet)*
892,53 kr
(exkl. moms)
1 115,66 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 9 enhet(er) från den 15 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 4 | 892,53 kr |
| 5 - 11 | 865,76 kr |
| 12 + | 837,20 kr |
*vägledande pris
Better World
Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.
- RS-artikelnummer:
- 542-8122
- Tillv. art.nr:
- 9001KR3UH5
- Tillverkare / varumärke:
- Schneider Electric
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Schneider Electric | |
| Illuminated | No | |
| Series | Harmony 9001K | |
| Panel Cut Out Diameter | 30mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Black, Blue, Green, Orange, Red, White, Yellow | |
| Contact Configuration | SPST | |
| Push Button Style | Round | |
| IP Rating | IP66 | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Manufacturer Part No. | 9001KR3UH5 | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | +70°C | |
| Maximum AC Voltage | 240V | |
| Minimum Operating Temperature | -25°C | |
| Maximum DC Voltage | 125V | |
| Välj alla | ||
|---|---|---|
Brand Schneider Electric | ||
Illuminated No | ||
Series Harmony 9001K | ||
Panel Cut Out Diameter 30mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Black, Blue, Green, Orange, Red, White, Yellow | ||
Contact Configuration SPST | ||
Push Button Style Round | ||
IP Rating IP66 | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Manufacturer Part No. 9001KR3UH5 | ||
Terminal Type Screw | ||
Maximum Operating Temperature +70°C | ||
Maximum AC Voltage 240V | ||
Minimum Operating Temperature -25°C | ||
Maximum DC Voltage 125V | ||
RoHS-status: Undantagen
Schneider Electric | Harmony 9001K Series | Push Buttons

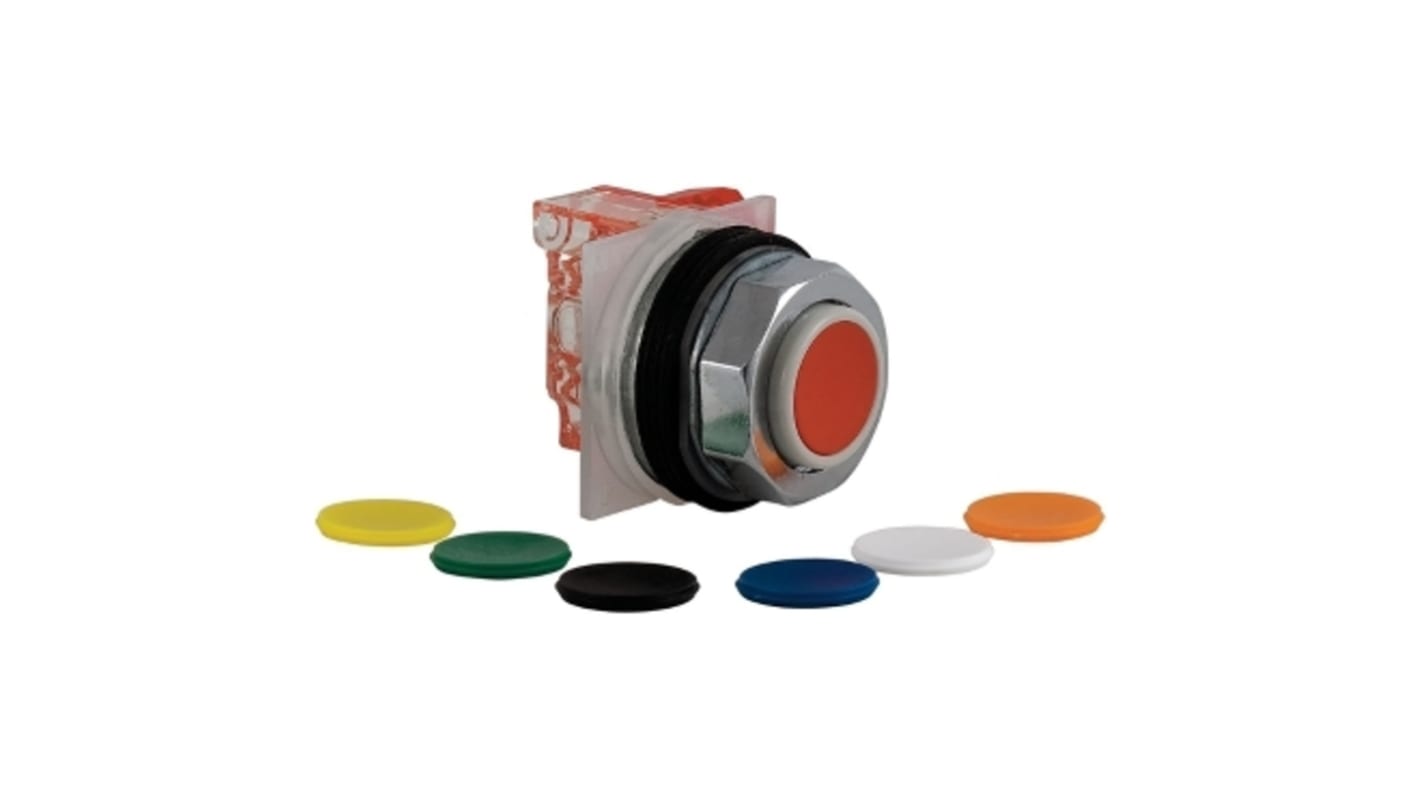

A selection of Harmony Style 9001K series of chromium plated metal control and signalling units designed for use in the most extreme environments. Supplied with several different profile colouring heads including red, orange and yellow which can be used to identify different functions to users.
Features and benefits
• Flush profile style of Push-Button complete with interchangeable colour profiles as pictured.
• Slow-break contact which can be operated from any position. Easily adjustable with a standard cross-slotted screw head shape.
• Durable and easy to maintain Chromium plated metal finish with a Zamak based fixing collar.
• 5,000,000 cycles of high-performance mechanical durability ensuring consistent reliability.
• Suitable for use in temperature ranges -25 to 70 ° C.
• 1 NO contact type with a screw clamp terminal connection.
Protection ratings & Safety features (See datasheet for further details) -
• IP 66 rated conforming to IEC 60529 for complete protection against the ingress of dust and other foreign particles. This means the Push Button has protection against high-pressure water jets from any direction.
• NEMA 1, 2, 3, 3R, 4, 12, 13. Can be used indoors/outdoors with further protection against dust and dripping non-corrosive liquids.
• EN/IEC 60947-5-1, UL 508
• Short circuit protection via a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1. 50 gn of Shock resistance that conforms to IEC 60068-2-27.
• Vibration resistance 7 gn conforming to IEC 60068-2-6.
• Slow-break contact which can be operated from any position. Easily adjustable with a standard cross-slotted screw head shape.
• Durable and easy to maintain Chromium plated metal finish with a Zamak based fixing collar.
• 5,000,000 cycles of high-performance mechanical durability ensuring consistent reliability.
• Suitable for use in temperature ranges -25 to 70 ° C.
• 1 NO contact type with a screw clamp terminal connection.
Protection ratings & Safety features (See datasheet for further details) -
• IP 66 rated conforming to IEC 60529 for complete protection against the ingress of dust and other foreign particles. This means the Push Button has protection against high-pressure water jets from any direction.
• NEMA 1, 2, 3, 3R, 4, 12, 13. Can be used indoors/outdoors with further protection against dust and dripping non-corrosive liquids.
• EN/IEC 60947-5-1, UL 508
• Short circuit protection via a 10 A cartridge fuse which conforms to EN/IEC 60947-5-1. 50 gn of Shock resistance that conforms to IEC 60068-2-27.
• Vibration resistance 7 gn conforming to IEC 60068-2-6.
Applications -
• Control stations/panels used in E-Stop scenarios
• Automotive industries, factories, automation lines
• Commercial units such as warehouses
• Automotive industries, factories, automation lines
• Commercial units such as warehouses
