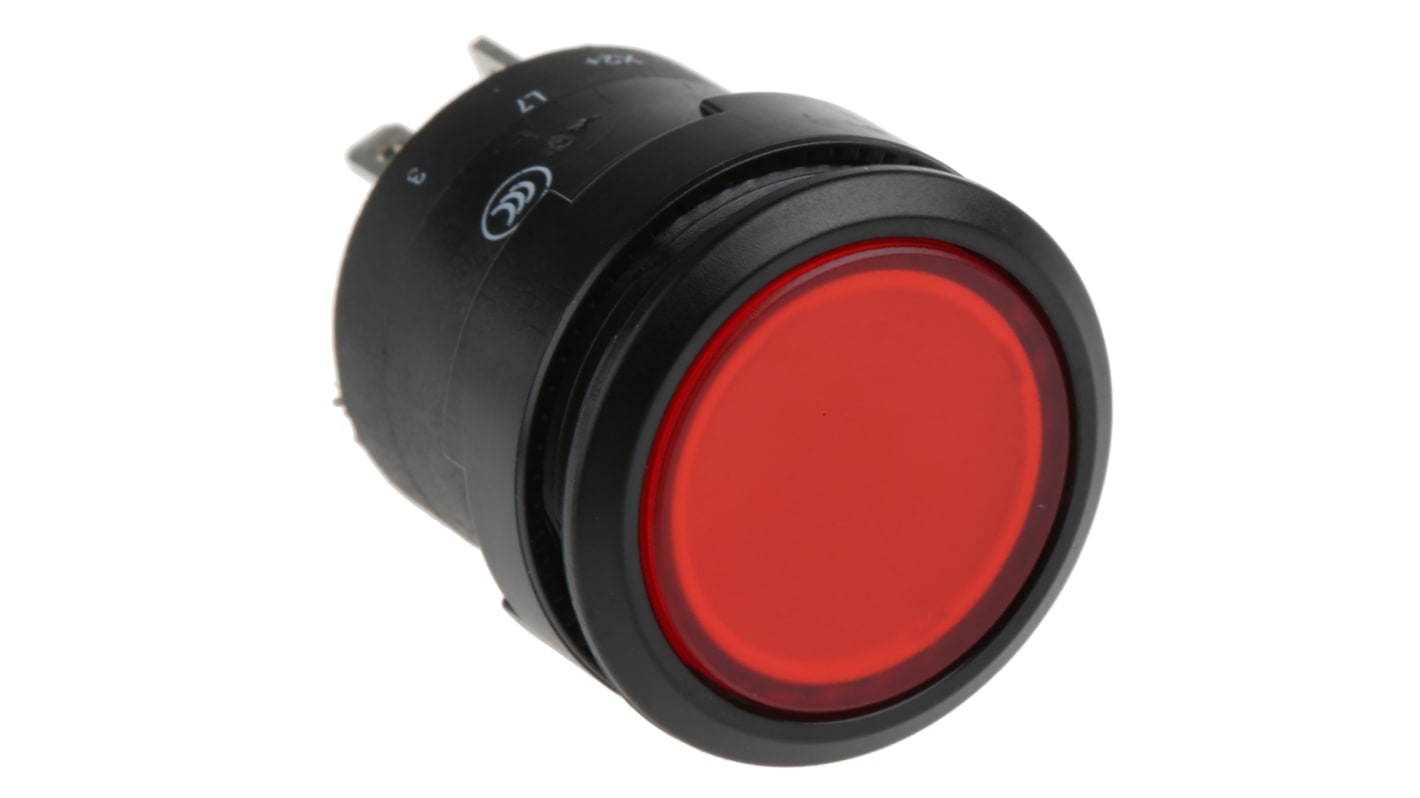

EAO 84 Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.5mm Cutout, SPST, 24V dc, IP67

RS-artikelnummer:: 535-0596
Distrelec artikelnummer:: 304-00-817
Tillv. art.nr:: K84-603.4205
Tillverkare / varumärke:: EAO

EAO 84 Series Illuminated Push Button Switch, Momentary, Panel Mount, 22.5mm Cutout, SPST, 24V dc, IP67

Se alla Push Button Switches

Mängdrabatt möjlig

Antal (1 enhet)*

475,33 kr

(exkl. moms)

594,16 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

190 enhet(er) är redo att levereras
Plus 49 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 9	475,33 kr
10 +	457,30 kr

*vägledande pris

RS-artikelnummer:: 535-0596
Distrelec artikelnummer:: 304-00-817
Tillv. art.nr:: K84-603.4205
Tillverkare / varumärke:: EAO

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	EAO
	Switch Operation	Momentary
	Illuminated	Yes
	Series	84
	Panel Cut Out Diameter	22.5mm
	Mounting Type	Panel Mount
	Push Button Colour	Red
	Contact Configuration	SPST
	Voltage Rating	24V dc
	Push Button Style	Round
	IP Rating	IP67
	Push Button Material	Plastic
	Contact Current Rating	200 mA @ 42 V dc
	Contact Material	Gold Plated
	Manufacturer Part No.	K84-603.4205
	Terminal Type	Solder/Quick Connect

	Välj alla
	Brand EAO
	Switch Operation Momentary
	Illuminated Yes
	Series 84
	Panel Cut Out Diameter 22.5mm
	Mounting Type Panel Mount
	Push Button Colour Red
	Contact Configuration SPST
	Voltage Rating 24V dc
	Push Button Style Round
	IP Rating IP67
	Push Button Material Plastic
	Contact Current Rating 200 mA @ 42 V dc
	Contact Material Gold Plated
	Manufacturer Part No. K84-603.4205
	Terminal Type Solder/Quick Connect

EAO K84 Catalogue

Full Face Flush Illuminated Switch

Brought to you by EAO, this selection of illuminated push-button switches feature full-face, high brightness LED illumination. Low profile with a flush fitting, these illuminated switches also assure a high degree of environmental protection.

Features and Benefits:

• IP rating: IP67
• Contact rating: 200mA @ 42Vac/dc (Max. power 2W)
• Low profile switch; 2mm high
• Depth behind panel: 31mm
• LED Voltage: 24V dc
• Gold plated N/O contacts

EAO Push Button Switch, 24V DC, 22.5mm Cutout Diameter - 84 Series - K84-603.4205

This red push button switch from EAO is designed for emergency stop functions in industrial applications. It offers optional illumination to make it easier to see in low-light environments. The small panel cutout size of 22.5mm makes it ideal for installation on panels with limited space. This switch features gold-plated contacts for high conductivity and resistance to corrosion, helping to ensure a reliable electrical connection.

Features & Benefits

• Single pole single throw (SPST) configuration for ease of wiring
• Plastic housing material is resistant to impact and wear for durability in harsh environments
• Quick-connect terminal for quick and simple set-up
• Low current rating of 200mA at 42V AC/DC for use in low-power systems

Applications

• Transportation
• Construction applications
• Automotive industry
• Industrial machinery

Is this switch suitable for use in damp environments?

Yes, this push button switch has an IP67 rating, meaning that it offers complete protection from dust and can withstand submersion in 1m of water for up to 30 minutes. This makes it a safe choice for use in damp conditions.
