Omron A3d Series Illuminated Push Button Switch, Latching, Panel, 8 mm Cutout, SPST, Yellow, Red, Green, White LED,

Se alla Push Button Switches
Mängdrabatt möjlig

Antal (1 enhet)*

114,35 kr

(exkl. moms)

142,94 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Beställningar under 500,00 kr (exkl. moms) kostar 119,00 kr.
I lager
  • 30 enhet(er) är redo att levereras
  • Dessutom levereras 54 enhet(er) från den 24 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 4114,35 kr
5 - 9110,88 kr
10 - 24107,52 kr
25 - 49101,92 kr
50 +93,97 kr

*vägledande pris

RS-artikelnummer:
366-4219
Tillv. art.nr:
A3DT-7121
Tillverkare / varumärke:
Omron
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Omron

Switch Operation

Latching

Product Type

Push Button Switch

Illuminated

Yes

Series

A3d

Panel Cutout Size

8 mm

Mount Type

Panel

Contact Configuration

SPST

Terminal Type

Solder

LED Colour

Yellow, Red, Green, White

IP Rating

IP40

Contact AC Voltage

24V

Contact DC Voltage

30V

Minimum Operating Temperature

-10°C

Actuator Style

Button

Maximum Operating Temperature

55°C

Switch Configuration

On-Off

Switch Contact Current

100 mA

Standards/Approvals

CSS, CE, UL

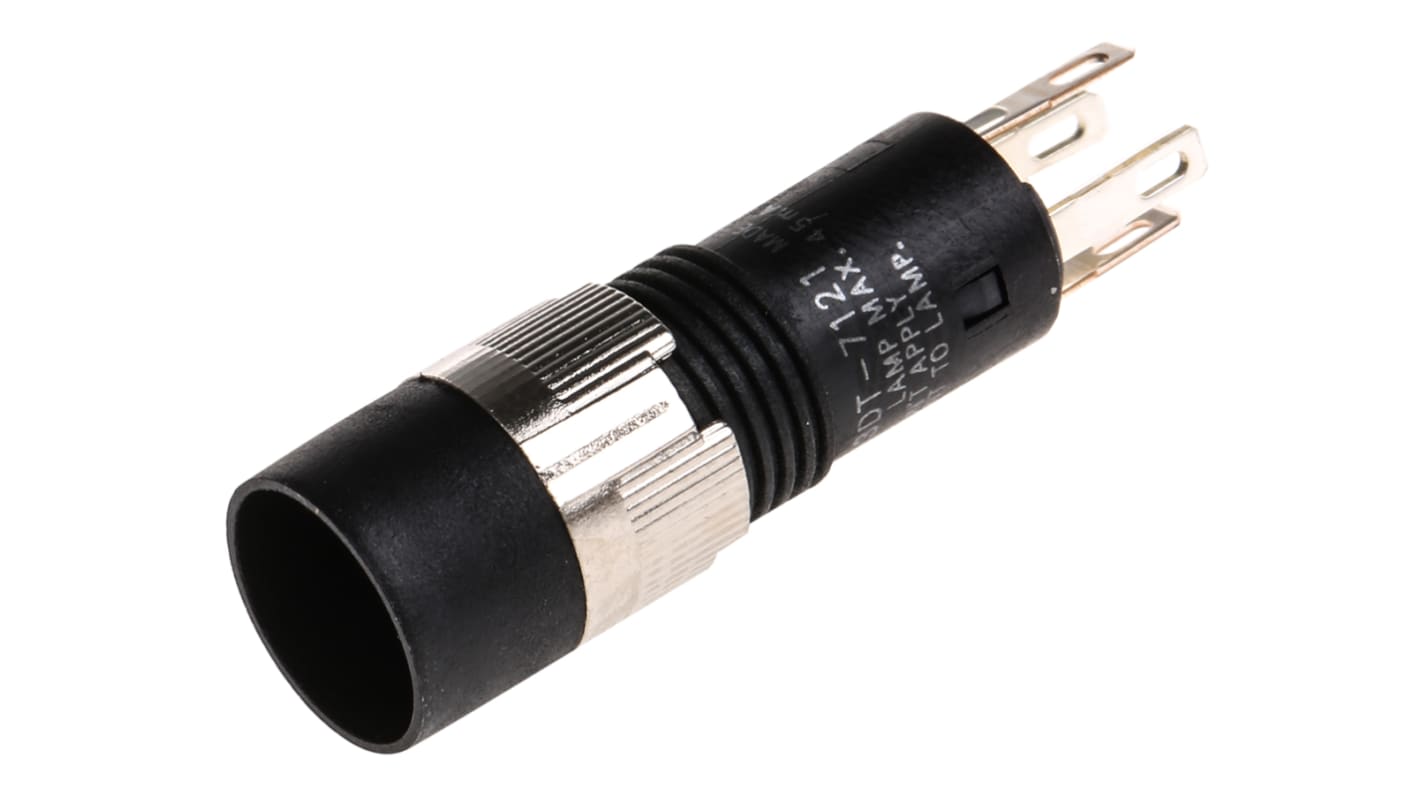

Omron A3DT-7121 Push Button Switch, Latching Operation, Illuminated - A3DT-7121


This push button switch from Omron is designed for reliable panel mounting in various electronic applications. With an 8mm cut-out diameter, this illuminated switch features a durable square push button style that enhances user interaction. Engineered for efficiency, it operates on a latching mechanism, making it ideal for systems requiring a maintained state.

Features & Benefits


• Illuminated feature enhances visibility in low-light scenarios

• Latching operation maintains selected position without additional pressure

• SPST configuration ensures straightforward on/off functionality

• Rated for 100 mA @ 30V DC provides robust operational capability

• Designed for easy panel mounting, streamlining installation processes

• Solder terminal type facilitates secure connections for enhanced reliability

Applications


• Used in automation control panels for easy access

• Suitable for electronic devices requiring user input functions

• Employed in machinery control systems for secure operation

• Integrates effectively into custom electrical projects

• Ideal for building management systems needing clear user feedback

What type of configuration is implemented in its design?


The switch employs a Single Pole Single Throw (SPST) configuration, allowing for uncomplicated on/off operations, which simplifies circuit design and integration.

How does the illuminated feature assist in usage?


The illumination provides clear visibility, which aids users in identifying the switch status, particularly in dimly lit environments or during high-demand situations.

What is the maximum current rating this switch can handle?


It has a contact current rating of 100 mA at a voltage of 30 V DC, making it suitable for various low-power applications without overheating.

What installation requirements should be noted for this switch?


It is designed for panel mounting with an 8mm cut-out diameter; ensure the panel thickness is suitable for secure fitting and effective operation.

How does the latching mechanism enhance usability?


The latching mechanism allows the switch to maintain its position without requiring constant pressure, providing ease of use in prolonged or critical operations.
