RS PRO SW30S Series Illuminated Push Button Switch, Momentary, Panel, 30 mm Cutout, DPST, Green LED, IP65, 12 V

Se alla Push Button Switches
Mängdrabatt möjlig

Antal (1 enhet)*

482,78 kr

(exkl. moms)

603,48 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 30 enhet(er) från den 12 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 9482,78 kr
10 - 99468,38 kr
100 +386,18 kr

*vägledande pris

RS-artikelnummer:
248-9262
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Actuator Colour

Silver

Product Type

Push Button Switch

Switch Operation

Momentary

Illuminated

Yes

Panel Cutout Size

30 mm

Series

SW30S

Mount Type

Panel

Contact Configuration

DPST

LED Colour

Green

Terminal Type

Screw

IP Rating

IP65

Minimum Operating Temperature

-40°C

Actuator Style

Button

Contact AC Voltage

250V

Contact DC Voltage

12V

Maximum Operating Temperature

80°C

Switch Configuration

On-Off

Switch Contact Current

5 A

Standards/Approvals

No

Height

34mm

Length

38.5mm

Width

30 mm

Legend

Ring

RoHS-status: Undantagen

COO (Country of Origin):
CN

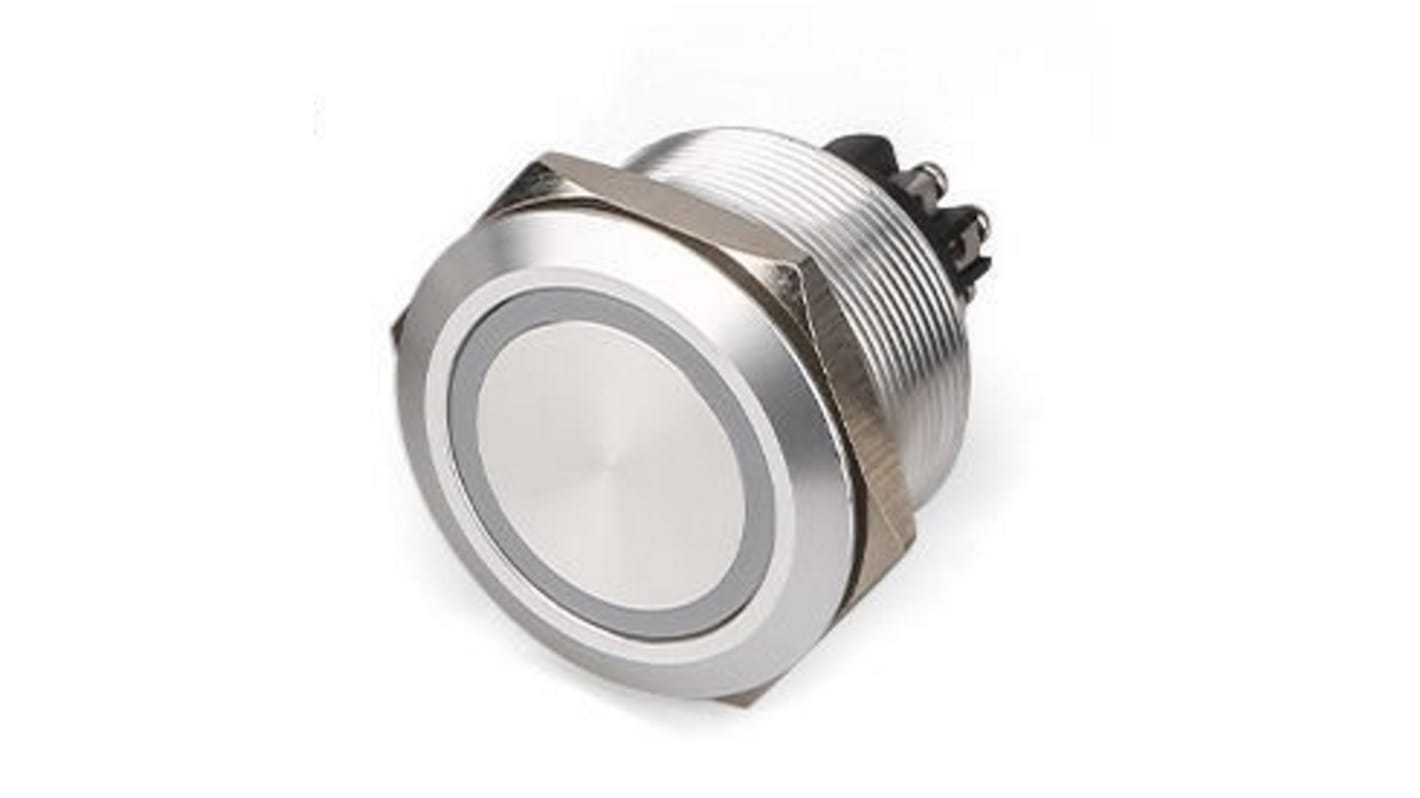

RS PRO Anti-Vandal Green Illuminated Push Button Switch, 30.2mm


The RS PRO high quality Stainless Steel anti vandal pushbutton is ideal for use in harsh conditions or public facing applications and is designed to withstand damage from physical attacks and repeated use. ;The RS PRO IP65 push button is panel mounted for easy and quick installation and is rated for water resistance and ingress protection making it suitable for use in internal and external applications.;Vandal resistant metal push buttons have a wide range of applications including typically panel alarms, door and gate access control, elevators and escalators as well as lift and instrument control.

Features and Benefits


  • Green LED illumination

  • Stainless Steel push button

  • Vandal resistant

  • Panel mount installation

  • Momentary switch operation

  • ≥1,000,000 operations

  • ≥1,000 MΩ Insulation Resistance

  • Screw terminals

    • Standards and Approvals: IP65, IK10

    Why RS PRO?


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

    Supplied with

    1 x Switch, 1 x Hex Nut, 1 x O-Ring
