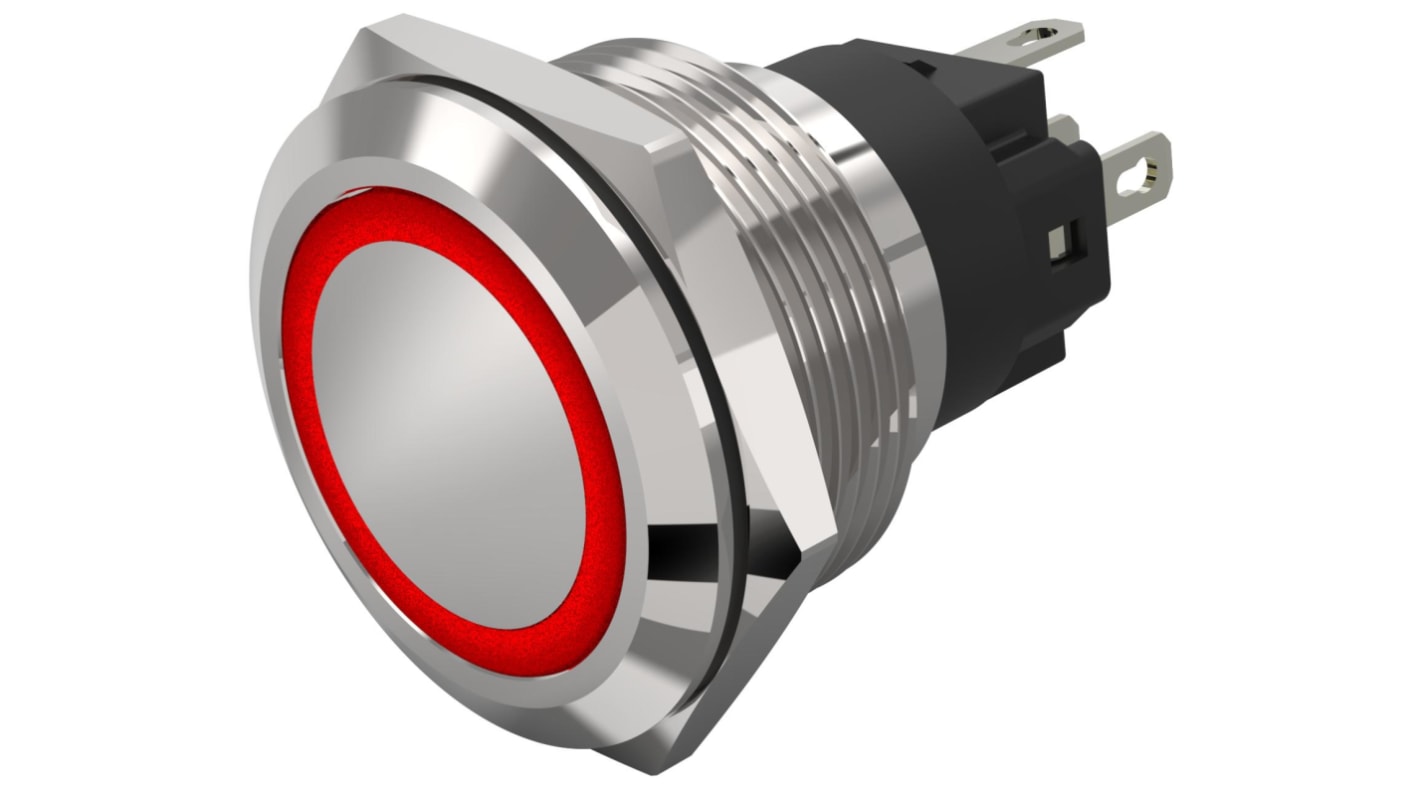

EAO 82 Series Illuminated Illuminated Push Button Switch, Latching, Panel Mount, 22.3mm Cutout, SPDT, Red/Green LED,
- RS-artikelnummer:
- 247-9013
- Distrelec artikelnummer:
- 303-16-423
- Tillv. art.nr:
- 82-6151.21A4
- Tillverkare / varumärke:
- EAO
Mängdrabatt möjlig
Antal (1 enhet)*
276,98 kr
(exkl. moms)
346,22 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 68 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 276,98 kr |
| 10 - 99 | 270,26 kr |
| 100 + | 244,38 kr |
*vägledande pris
- RS-artikelnummer:
- 247-9013
- Distrelec artikelnummer:
- 303-16-423
- Tillv. art.nr:
- 82-6151.21A4
- Tillverkare / varumärke:
- EAO
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | EAO | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Series | 82 | |
| Panel Cut Out Diameter | 22.3mm | |
| Mounting Type | Panel Mount | |
| Contact Configuration | SPDT | |
| Voltage Rating | 240V | |
| LED Colour | Red/Green | |
| IP Rating | IP65, IP67 | |
| Push Button Material | Stainless Steel | |
| Contact Current Rating | 3A | |
| Contact Material | Silver Alloy | |
| Contact AC Voltage Rating | 240V | |
| Contact DC Voltage Rating | 240V | |
| Case Colour | Silver | |
| Manufacturer Part No. | 82-6151.21A4 | |
| Operating Temperature Range | -30°C to +70°C | |
| Minimum Operating Temperature | -30°C | |
| Terminal Type | Plug In, Solder | |
| Maximum Operating Temperature | +70°C | |
| Välj alla | ||
|---|---|---|
Brand EAO | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Series 82 | ||
Panel Cut Out Diameter 22.3mm | ||
Mounting Type Panel Mount | ||
Contact Configuration SPDT | ||
Voltage Rating 240V | ||
LED Colour Red/Green | ||
IP Rating IP65, IP67 | ||
Push Button Material Stainless Steel | ||
Contact Current Rating 3A | ||
Contact Material Silver Alloy | ||
Contact AC Voltage Rating 240V | ||
Contact DC Voltage Rating 240V | ||
Case Colour Silver | ||
Manufacturer Part No. 82-6151.21A4 | ||
Operating Temperature Range -30°C to +70°C | ||
Minimum Operating Temperature -30°C | ||
Terminal Type Plug In, Solder | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- CH
The EAO pushbutton has snap-action switching element system. It has operating temperature range from -30 °C to + 70 °C. It is damp heat resistant for 21 days according to IEC 60512-11.
Silver contacts
CB, CCC, C UL, and UL approved
CB, CCC, C UL, and UL approved
